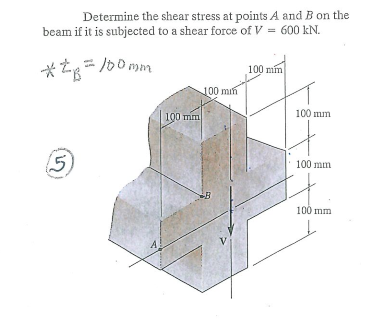

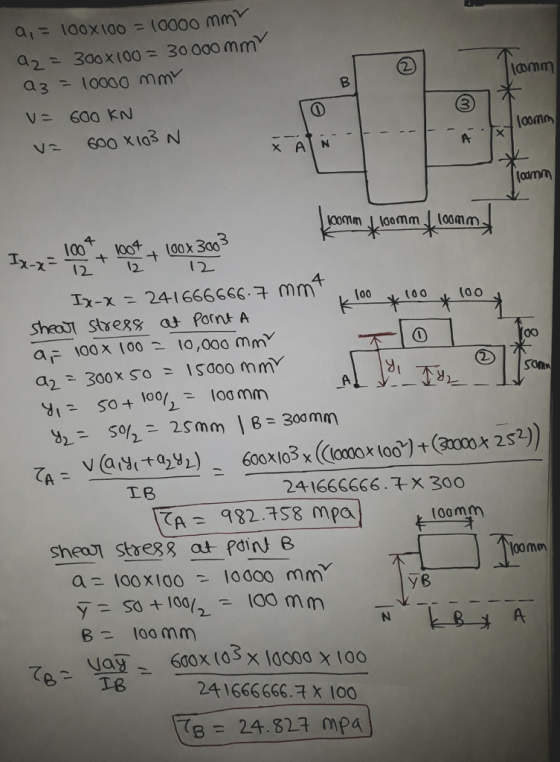

Determine the shear stress at points A and B on the beam if it is subjected...
Determine the maximum shear stress developed in the shaft.
If the shaft is subjected to a uniform distributed torque of to = 15 kN-m/m. 400 mm 600 mm 80 mm 60 mm Section a-a The shaft is made of 2014-T6 aluminum alloy and is fixed at A and C
Q.1) The cross-section shown below of a simply supported beam is subjected to a maximum shear force of 20 kN. Determine the corresponding shearing stress at points a and b. Also determine the maximum shear stress in the cross- section and state its location 40 mm 4 mm 60 mm 14 mm 4 mm 20 mm 28 mm 20 mm
If the beam is subjected to a moment of M = 100 kn-m, determine the bending stress at points A, B, and C. Sketch the bending stress distribution on the cross Section. If the beam is made of a material having an allowable tensile and compressive stress of σallow(T) = 125 MPa and σallow(C) = 150 MPa, respectively, determine the maximum moment M that can be applied to the beam.
The overhang beam is subjected to the uniform distributed load
having intensity of w = 55 kN/m. Determine shear stress developed
in the beam.
The beam is subjected to the cable force of 4 kN. Part A Determine the normal stress at point A. (Figure 1) Express your answer with the appropriate units. HÅ ? OA Value Units Submit Request Answer Figure < 1 of 1 > 4 KN Part B -250 mm G 375 mm Determine the shear stress at point A. Express your answer with the appropriate units. D B 2 m 1 m 0.75 m μΑ ? 20 mm 100 mm...
For the beam shown below, find the maximum bending stress and maximum transverse shear stress. That is, carry out load and stress analyses in the following order. Load Analysis Draw the load diagram or free body diagram (FBD) and determine the support reactions. Show your calculations. • Draw the shear force diagram (SFD). Show your calculations. Draw the bending moment diagram (BMD). Show your calculations. Stress Analysis Identify the critical section(s) and determine the maximum normal (bending) stress at the...
If the beam is subjected to a positive bending moment of M = 100 kN-m, determine the maximum and minimum bending stress. Also determine the shear stress at point, A which is 50 mm above from the bottom. The cross-section of the beam is I-shaped and shown in the figure. 300 mm 30 mm 300 mm . 50 mm 30 mm
If the beam is subjected to a positive bending moment of M = 100 kN-m, determine the maximum and minimum bending stress. Also determine the shear stress at point, A which is 50 mm above from the bottom. The cross-section of the beam is I-shaped and shown in the figure. 300 mm 30 mm 300 mm . 50 mm 30 mm
24 M9.4 Shear stress in a standard steel shape scenes 246 For the wide flange beam subjected to the indicated shear force V, determine the transverse shear stress acting at locations H and K. 712 84 664 216 V=930 KN TH (MPa) dimensions: mm TK (MPa) 24 Try one 1st 2nd 3rd attempt enter
A simply supported beam is subjected to a load applied as shown in the figure. Draw the shear force diagram. Consider the section shown and determine (a) the largest shear stress in the section n-n, (b) the shear stress at point a and show this stress on an element. 15,15 30 15,15 20 I n 40 120 15m 0.8 m Dimensions in mm
A simply supported beam is subjected to a load applied as shown in the figure. Draw the...
