Homework Answers
Here, block size is 16 bytes so, last digit is used for offset. i.e last 4 bits are used for block offset
first 3 digit will decide where the block will be loaded in cache .

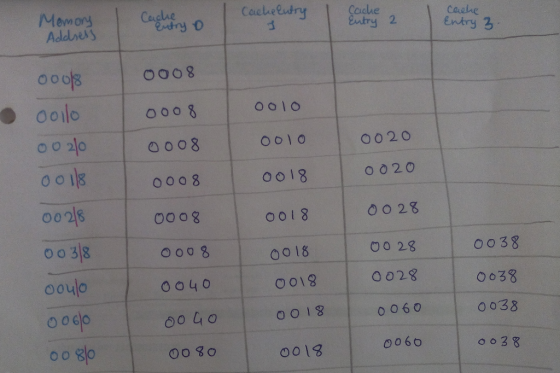

content of cache is shown below after each request.
![Memor Cackeeutry idhe Cadhe 2entry 3 Address 2 o0008 00110 002]。 0020 O o18 0 0 1 8 0o 18 O O18 O O 18 0013 0028 oo 318 0040](http://img.homeworklib.com/questions/566f90b0-cbcc-11eb-9bc2-a90eba44e358.png?x-oss-process=image/resize,w_560)
if you have any doubts, you
can ask in comment section.
