Suppose a computer using fully-associative cache has 222 words of main memory and a cache of...
- Suppose a computer using fully-associative cache has 222 words of main memory and a cache of 32 blocks, where each cache block contains 16 bytes.
-

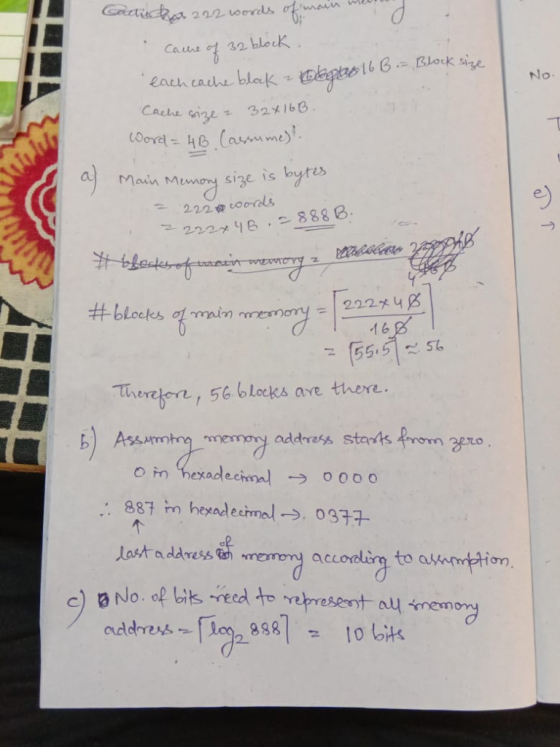

- How many blocks of main memory are there?
-
- Assuming memory addressing starts from zero, what is the highest memory address?
-
- How many bits are needed to represent all of the memory addresses?
-

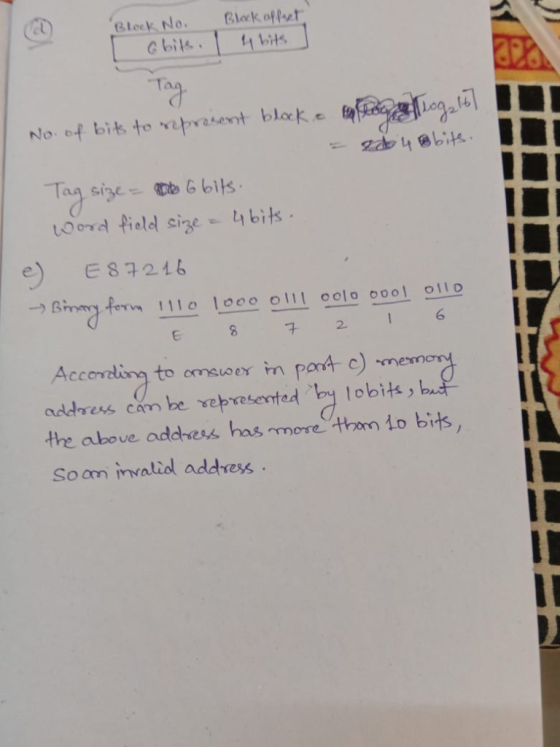

- What is the format of a memory address as seen by the cache, that is, what are the sizes of the tag and word fields?
-
- To which cache block will the memory reference E87216 (assume as many leading zeros as needed per your answer to part c)?
Homework Answers
Add Answer to:
Suppose a computer using fully-associative cache has
222 words of main memory and a cache of...
Suppose a computer using a fully associative cache has 232 bytes of byte-addressable main memory and...
Suppose a computer using a fully associative cache has 232 bytes of byte-addressable main memory and a cache of 1024 blocks, were each cache block contains 32 bytes. Consider a memory address as seen by the cache. How many bits are in the tag field?
Suppose a computer using set associative cache has 216 words of main memory and a cache...
Suppose a computer using set associative cache has 216 words of main memory and a cache of 32 blocks, and each cache block contains 8 words. 3. If this cache is 2-way set associative, what is the format of a memory address as seen by the cache, that is, what are the sizes of the tag, set, and word fields? If this cache is 4-way set associative, what is the format of a memory address as seen by the cache?...
Suppose a computer has 216 words of main memory, and a cache of 64 blocks, where...
Suppose a computer has 216 words of main memory, and a cache of 64 blocks, where each cache block contains 32 words. Please explain step by step. a) If this cache is a direct-mapped cache, what is the format of a memory address as seen by the cache, i.e., what are the sizes of the tag and word fields? b) To which cache block will the memory reference F8C9 map? c) If this cache is fully associative, what is the...
Suppose a computer using direct mapped cache has 232 byte of byte-addressable main memory, and a...
Suppose a computer using direct mapped cache has 232 byte of byte-addressable main memory, and a cache of 1024 blocks, where each cache block contains 32 bytes. a. How many blocks of main memory are there? b. What is the format of a memory address as seen by the cache, i.e., what are the sizes of the tag, block, and offset fields? c.To which cache block will the memory address 0x000063FA map?
Problem 6. Suppose we have a computer with 32 megabytes of main memory, 256 bytes of...
Problem 6. Suppose we have a computer with 32 megabytes of main memory, 256 bytes of cache, and a block size of 16 bytes. For each configuration below, determine the memory address format, indicating the number of bits needed for each appropriate field (i.e. tag, block, set, offset). Show any relevant calculations. Direct cache mapping and memory is byte-addressable a) Direct cache mapping and memory is word-addressable with a word size of 16 bits b) c) 2-way set associative cache...
QUESTION 2 Suppose a computer using direct mapped cache has 216 bytes of byte-addressable main memory...
QUESTION 2 Suppose a computer using direct mapped cache has 216 bytes of byte-addressable main memory and a cache of 64 blocks, where each cache block contains 32 bytes. a. How many blocks of main memory are there? b) What is the format of a memory address as seen by the cache, (include field names and their sizes) c) To which cache block will the memory address (F8C916 map? What address in that block does it map to?
A 2-way set associative cache consists of four sets 0, 1, 2, 3. The main memory...
A 2-way set associative cache consists of four sets 0, 1, 2, 3. The main memory is word addressable (i.e. treat the memory as an array of words indexed by the address). It contains 2048 blocks 0 through 2047, and each block has eight words. (a) How many bits are needed to address the main memory? (b) Show how a main memory address will be translated into a tag, a set number, and an offset within a block. Illustrate this...
Name #5 Suppose a compute memory and a cache of 1024 blocks, where each cache block...
Name #5 Suppose a compute memory and a cache of 1024 blocks, where each cache block contains a) How many blocks of main memory are there? b) Wha r using direct mapped cache has 4bytes of byte-addressable main t is the format of a memory address as seen by the cache; that is, what are the sizes of the tag, block, and offset fields? To which cache block will the memory address 0x000063FA map? c)
32 bytes of memory. 16 bytes of 2-way set-associative cache, where blocks can go anywhere within...
32 bytes of memory. 16 bytes of 2-way set-associative cache, where blocks can go anywhere within the set. Block is 2 bytes, set in cache is two blocks. Populate memory starting with upper-case letters, then 0-5. Hint- with full associativity in the set: each block has its own set of Tag bits in the cache. Memory is not organized by sets, though blocks get assigned to sets, and load in the cache per set. 1) Break down the addressing: Tag...
Assume the cache can hold 64 kB. Data are transferred between main memory and the cache...
Assume the cache can hold 64 kB. Data are transferred between main memory and the cache in blocks of 4 bytes each. This means that the cache is organized as 16K=2^14 lines of 4 bytes each. The main memory consists of 16 MB, with each byte directly addressable by a 24-bit address (2^24 =16M). Thus, for mapping purposes, we can consider main memory to consist of 4M blocks of 4 bytes each. Please show illustrations too for all work. Part...
Suppose a computer using set associative cache has 216 words of main memory and a cache of 32 blocks, and each cache block contains 8 words. 3. If this cache is 2-way set associative, what is the format of a memory address as seen by the cache, that is, what are the sizes of the tag, set, and word fields? If this cache is 4-way set associative, what is the format of a memory address as seen by the cache?...
Problem 6. Suppose we have a computer with 32 megabytes of main memory, 256 bytes of cache, and a block size of 16 bytes. For each configuration below, determine the memory address format, indicating the number of bits needed for each appropriate field (i.e. tag, block, set, offset). Show any relevant calculations. Direct cache mapping and memory is byte-addressable a) Direct cache mapping and memory is word-addressable with a word size of 16 bits b) c) 2-way set associative cache...
QUESTION 2 Suppose a computer using direct mapped cache has 216 bytes of byte-addressable main memory and a cache of 64 blocks, where each cache block contains 32 bytes. a. How many blocks of main memory are there? b) What is the format of a memory address as seen by the cache, (include field names and their sizes) c) To which cache block will the memory address (F8C916 map? What address in that block does it map to?
A 2-way set associative cache consists of four sets 0, 1, 2, 3. The main memory is word addressable (i.e. treat the memory as an array of words indexed by the address). It contains 2048 blocks 0 through 2047, and each block has eight words. (a) How many bits are needed to address the main memory? (b) Show how a main memory address will be translated into a tag, a set number, and an offset within a block. Illustrate this...
Name #5 Suppose a compute memory and a cache of 1024 blocks, where each cache block contains a) How many blocks of main memory are there? b) Wha r using direct mapped cache has 4bytes of byte-addressable main t is the format of a memory address as seen by the cache; that is, what are the sizes of the tag, block, and offset fields? To which cache block will the memory address 0x000063FA map? c)
