Homework Answers

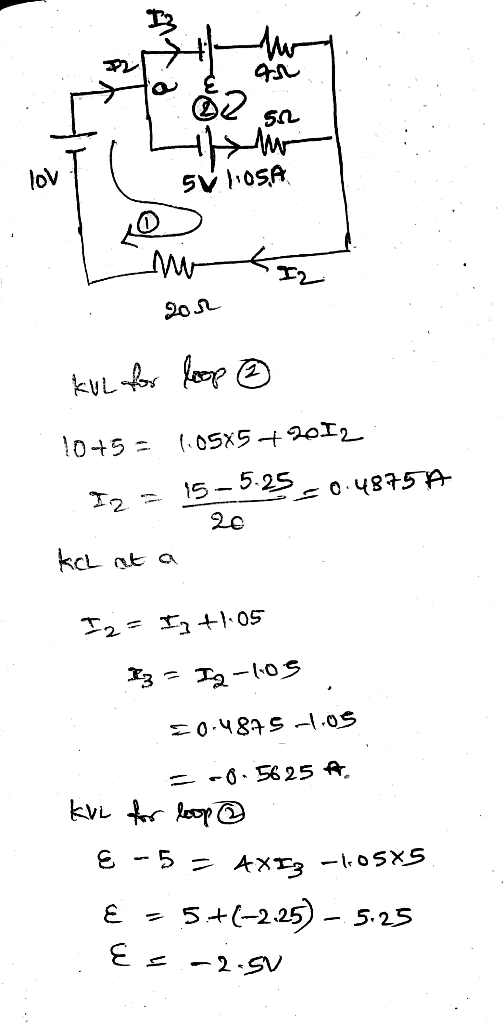

Add Answer to:

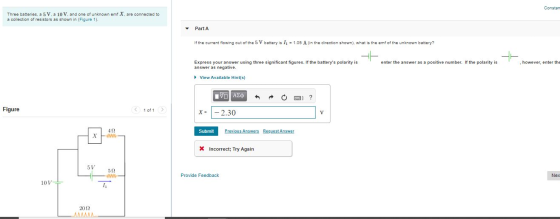

Constan Three batteries, a 5 V. a 10 V. and one of unknown emf X. are...
Problem 26.44 13 of 14 Part A Constants | Periodic Table In the figure, the total resistance is 12.8 k2, and the battery's emf is 28.8 V.If the time constant is measured to be 23.0148 Figure 1) C...
Problem 26.44 13 of 14 Part A Constants | Periodic Table In the figure, the total resistance is 12.8 k2, and the battery's emf is 28.8 V.If the time constant is measured to be 23.0148 Figure 1) Calculate the total capacitance of the circuit. C 1.80x109 F Correct Part B Calculate the time it takes for the voltage across the resistor to reach 17.6 V after the switch is closed. Figure 1 of 1 Submit X Incorrect, Try Again; 4...
2. The circuit diagram shown in Figure 2 shows two emf sources (batteries) connected together through...
2. The circuit diagram shown in Figure 2 shows two emf sources (batteries) connected together through a conductor with resistance R- 0.2 S2 in order to form a battery pack. The batery pack, is then connected to a light bulb having a resistance of Rb-55 ?. The sour internal resistance ri 0.025 ? and r2-0.020 ? as shown in Figure to the right. a. [5 marks! If ?? = 13.0 V and ?,-1 1.5 V, calculate the current 12 ri...
MP3. Consider a dc circuit consisting of a battery of emf E = 9.0 V and...
MP3. Consider a dc circuit consisting of a battery of emf E = 9.0 V and two resistors R = 5.0 22 and R' = 15.0 22 as shown in the figure below. The magnitude of the current I1 flowing through point 1 is, 9.0 V 5.0 22 >I, Z 15.02 Soi A) 1.2 A B) 2.4 A C) 4.8 A D) 9.6 A E) 12.6 A MP4. An electron and a proton enter a region above the x-axis of...
Consider the circuit shown in (Figure 1). The batteries have emfs of Ei = 9.0 V...
Consider the circuit shown in (Figure 1). The batteries have emfs of Ei = 9.0 V and Ex = 12.0V and the resistors have values of Ri = 272, R = 64, and Rs = 41 22. Part A Determine the magnitudes of the currents in each resistor shown in the figure. Ignore inte resistance of the batteries Express your answers using two significant figures separated by commas, Figure AXO O 2 ? 11, 12, 13 - Submit Previous Answers...
Constants The batteries shown in the circuit in the figure have zero internal resistances and emf...
Constants The batteries shown in the circuit in the figure have zero internal resistances and emf values Ej = 12.0 V and E2 = 15.8 V, respectively. The resistors have resistances R1 =7.40 and R2 = 10.8 0. R www & R & Part A Find the current through resistor Ri. ΑΣΦ D. SH ? I = A Submit Request Answer Part B Find the current through resistor R2. IVO ALO ? 11 A Submit Request Answer Part C Find...
60. Three resistors and two 10.0-V batteries are arranged as shown in the circuit diagram. Which one of...
60. Three resistors and two 10.0-V batteries are arranged as shown in the circuit diagram. Which one of the following entries in the table is correct? Power Delivered by Battery 1 Power Delivered by Battery 2 A) 2.5 W 2.5 W B) 4.0 W 1.0 W C) 1.0 W 1.0 W D) 1.0 W 4.0 W E) 4.0 W 4.0 W
A battery having an emf of 9.03 V delivers 120 mA when connected to a 62.5...
A battery having an emf of 9.03 V delivers 120 mA when connected to a 62.5 load. Determine the internal resistance of e battery Need Help? Read [-720 Points] DETAILS SERCP11 18.3.P.006. Three 6.2 resistors are connected in series with a 2.0 V battery. Find the following. (a) the equivalent resistance of the circuit (b) the current in each resistor (c) Repeat for the case in which all three resistors are connected in parallel across the battery. equivalent resistance current...
Three identical light bulbs are connected to two batteries as shown in the diagram above.
Three identical light bulbs are connected to two batteries as shown in the diagram above.To start the analysis of this circuit you must write energy conservation (loop) equations. Each equation must involve around-trip path that begins and ends at the same location. Each segment of the path should go through a wire, a bulb, or a battery(not through the air). How many valid energy conservation (loop)equations is it possible to write for this circuit?---Select---012345Which of the following equations are valid...
Two batteries, є 1-6 v ande 2-9 V, and three resistors R1-2 06 Ω R2-389 Ω...
Two batteries, є 1-6 v ande 2-9 V, and three resistors R1-2 06 Ω R2-389 Ω and R3 : 494 Ω, a e co nected as shown in the igure below. 2 R. 3 How much current flows through the E2 -9 V battery when the switch is closed? 0.8116A Submit Answer Incorrect. Tries 1/8 Previous Tries How much current flows through the 1 6 V battery when the switch is closed? Submit Answer Tries 0/8 How much current flows...
In the circuit shown in the figure (Figure 1), the 6.0 12 resistor is consuming energy...
In the circuit shown in the figure (Figure 1), the 6.0 12 resistor is consuming energy at a rate of 21 J/s when the current through it flows as shown Part A Find the current through the ammeter A. Express your answer with the appropriate units. li μΑ ? I = Value Units Submit Previous Answers Request Answer X Incorrect; Try Again; 4 attempts remaining Part B Figure < 1 of 1 > What are the polarity and emf of...
Problem 26.44 13 of 14 Part A Constants | Periodic Table In the figure, the total resistance is 12.8 k2, and the battery's emf is 28.8 V.If the time constant is measured to be 23.0148 Figure 1) Calculate the total capacitance of the circuit. C 1.80x109 F Correct Part B Calculate the time it takes for the voltage across the resistor to reach 17.6 V after the switch is closed. Figure 1 of 1 Submit X Incorrect, Try Again; 4...
2. The circuit diagram shown in Figure 2 shows two emf sources (batteries) connected together through a conductor with resistance R- 0.2 S2 in order to form a battery pack. The batery pack, is then connected to a light bulb having a resistance of Rb-55 ?. The sour internal resistance ri 0.025 ? and r2-0.020 ? as shown in Figure to the right. a. [5 marks! If ?? = 13.0 V and ?,-1 1.5 V, calculate the current 12 ri...
MP3. Consider a dc circuit consisting of a battery of emf E = 9.0 V and two resistors R = 5.0 22 and R' = 15.0 22 as shown in the figure below. The magnitude of the current I1 flowing through point 1 is, 9.0 V 5.0 22 >I, Z 15.02 Soi A) 1.2 A B) 2.4 A C) 4.8 A D) 9.6 A E) 12.6 A MP4. An electron and a proton enter a region above the x-axis of...
Consider the circuit shown in (Figure 1). The batteries have emfs of Ei = 9.0 V and Ex = 12.0V and the resistors have values of Ri = 272, R = 64, and Rs = 41 22. Part A Determine the magnitudes of the currents in each resistor shown in the figure. Ignore inte resistance of the batteries Express your answers using two significant figures separated by commas, Figure AXO O 2 ? 11, 12, 13 - Submit Previous Answers...
Constants The batteries shown in the circuit in the figure have zero internal resistances and emf values Ej = 12.0 V and E2 = 15.8 V, respectively. The resistors have resistances R1 =7.40 and R2 = 10.8 0. R www & R & Part A Find the current through resistor Ri. ΑΣΦ D. SH ? I = A Submit Request Answer Part B Find the current through resistor R2. IVO ALO ? 11 A Submit Request Answer Part C Find...
A battery having an emf of 9.03 V delivers 120 mA when connected to a 62.5 load. Determine the internal resistance of e battery Need Help? Read [-720 Points] DETAILS SERCP11 18.3.P.006. Three 6.2 resistors are connected in series with a 2.0 V battery. Find the following. (a) the equivalent resistance of the circuit (b) the current in each resistor (c) Repeat for the case in which all three resistors are connected in parallel across the battery. equivalent resistance current...
Two batteries, є 1-6 v ande 2-9 V, and three resistors R1-2 06 Ω R2-389 Ω and R3 : 494 Ω, a e co nected as shown in the igure below. 2 R. 3 How much current flows through the E2 -9 V battery when the switch is closed? 0.8116A Submit Answer Incorrect. Tries 1/8 Previous Tries How much current flows through the 1 6 V battery when the switch is closed? Submit Answer Tries 0/8 How much current flows...
In the circuit shown in the figure (Figure 1), the 6.0 12 resistor is consuming energy at a rate of 21 J/s when the current through it flows as shown Part A Find the current through the ammeter A. Express your answer with the appropriate units. li μΑ ? I = Value Units Submit Previous Answers Request Answer X Incorrect; Try Again; 4 attempts remaining Part B Figure < 1 of 1 > What are the polarity and emf of...
