Question

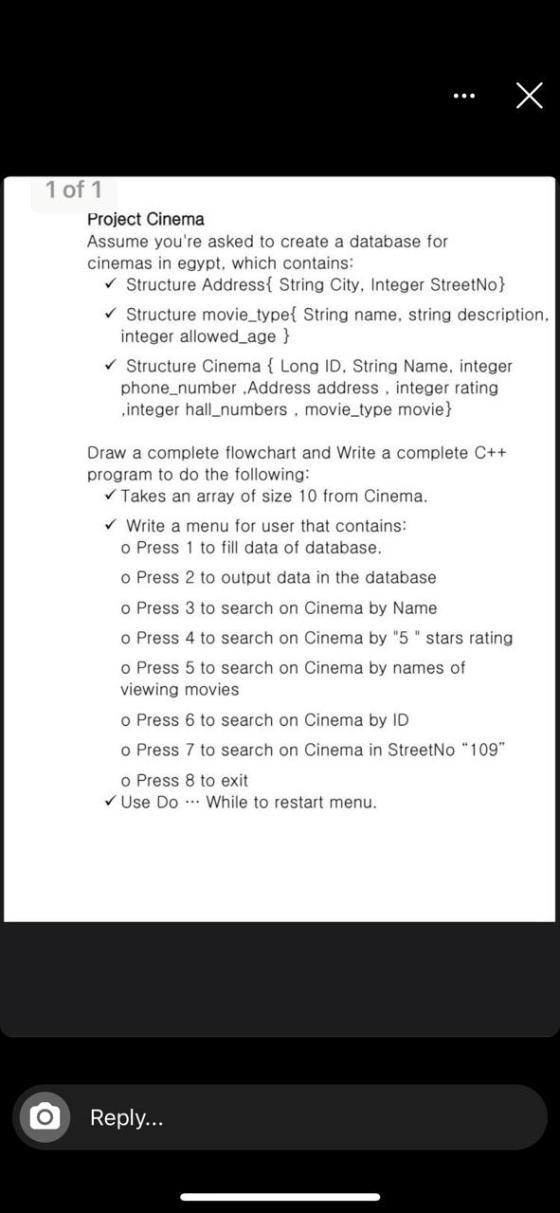

Project Cinema Assume you're asked to create a database for cinemas in egypt, which contains:

Structure Address\{ String City, Integer StreetNo\}

Structure movie_type\{ String name, string description. integer allowed_age \}

Structure Cinema \{ Long ID. String Name, integer phone_number , Address address, integer rating , integer hall_numbers, movie_type movie\}

Draw a complete flowchart and Write a complete C++ program to do the following:

Takes an array of size 10 from Cinema.

Write a menu for user that contains:

o Press 1 to fill data of database.

o Press 2 to output data in the database

o Press 3 to search on Cinema by Name

o Press 4 to search on Cinema by " 5 " stars rating

o Press 5 to search on Cinema by names of viewing movies

o Press 6 to search on Cinema by 10

o Press 7 to search on Cinema in StreetNo "109"

o Press 8 to exit

Use Do \(\cdots\) While to restart menu.

Answer 1

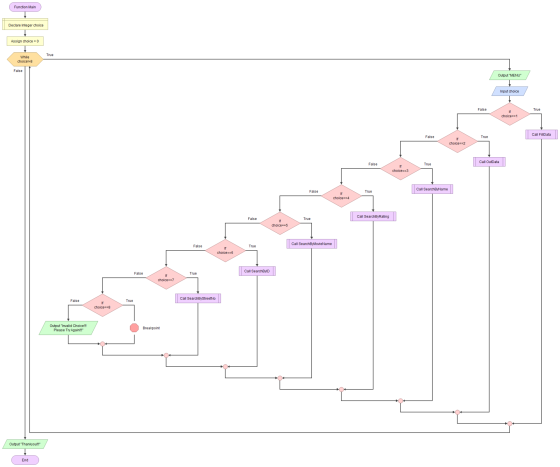

Flowchart

C++ Program

#include #define t_size 10 using namespace std; struct Address { string City; int StreetNo; }; struct movie_type { string name; string description; int allowed_age; }; struct Cinema { long ID; string Name; long long int phone_number; struct Address address; int rating; int hall_numbers; struct movie_type movie; }; void FillData(struct Cinema* cinema, int c_index) { cout< < endl< < "Please enter the following details"< < endl; cout< < "ID: "; cin>>cinema[c_index].ID; cout< < "Name: "; cin>>cinema[c_index].Name; cout< < "Phone Number: "; cin>>cinema[c_index].phone_number; cout< < "City: "; cin>>cinema[c_index].address.City; cout< < "Street Number: "; cin>>cinema[c_index].address.StreetNo; cout< < "Rating: "; cin>>cinema[c_index].rating; cout< < "Hall Numbers: "; cin>>cinema[c_index].hall_numbers; cout< < "Movie Name: "; cin>>cinema[c_index].movie.name; cout< < "Movie Description: "; cin>>cinema[c_index].movie.description; cout< < "Allowed Age in Movie: "; cin>>cinema[c_index].movie.allowed_age; cout< < endl< < "Data filled Successfully."< < endl; } void OutData(struct Cinema* cinema, int c_index) { cout< < "ID: "< < cinema[c_index].ID; cout< < "\tName: "< < cinema[c_index].Name; cout< < endl< < "Phone Number: "< < cinema[c_index].phone_number; cout< < endl< < "City: "< < cinema[c_index].address.City; cout< < "\tStreet Number: "< < cinema[c_index].address.StreetNo; cout< < endl< < "Rating: "< < cinema[c_index].rating; cout< < "\tHall Numbers: "< < cinema[c_index].hall_numbers; cout< < endl< < "Movie Name: "< < cinema[c_index].movie.name; cout< < endl< < "Movie Description: "< < cinema[c_index].movie.description; cout< < endl< < "Allowed Age in Movie: "< < cinema[c_index].movie.allowed_age; cout< < endl< < endl; } int SearchByName(struct Cinema* cinema, int c_size, string Name) { int found=0; for(int i=0;i>choice; if(choice==1) { if(c_size>search_item; int found=SearchByName(cinema, c_size, search_item); if(found==0) { cout< < endl< < "Not Found!!!"< < endl; } } else if(choice==4) { int search_item; cout< < "Enter rating to search on Cinema: "; cin>>search_item; int found=SearchByRating(cinema, c_size, search_item); if(found==0) { cout< < endl< < "Not Found!!!"< < endl; } } else if(choice==5) { string search_item; cout< < "Enter Viewing Movie Name to search on Cinema: "; cin>>search_item; int found=SearchByMovieName(cinema, c_size, search_item); if(found==0) { cout< < endl< < "Not Found!!!"< < endl; } } else if(choice==6) { long search_item; cout< < "Enter ID to search on Cinema: "; cin>>search_item; int found=SearchByID(cinema, c_size, search_item); if(found==0) { cout< < endl< < "Not Found!!!"< < endl; } } else if(choice==7) { int search_item; cout< < "Enter Street Number to search on Cinema: "; cin>>search_item; int found=SearchByStreetNo(cinema, c_size, search_item); if(found==0) { cout< < endl< < "Not Found!!!"< < endl; } } else if(choice==8) { cout< < endl< < "Thankyou!!!"< < endl; } else { cout< < endl< < "Invalid Choice!!! Please Try Again!!!"< < endl; } }while(choice!=8); return 0; }
