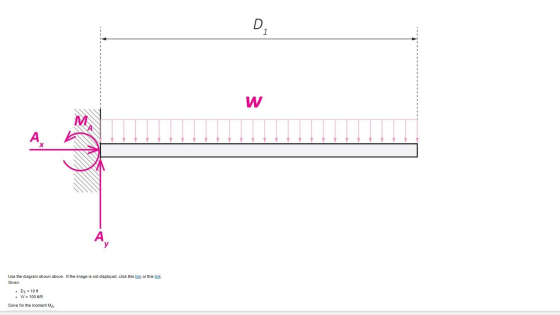

Use the diagram shown above. If the image is not displayed, click this link or this...
w Use the diagram shown above. If the image is not displayed, chick this link or...

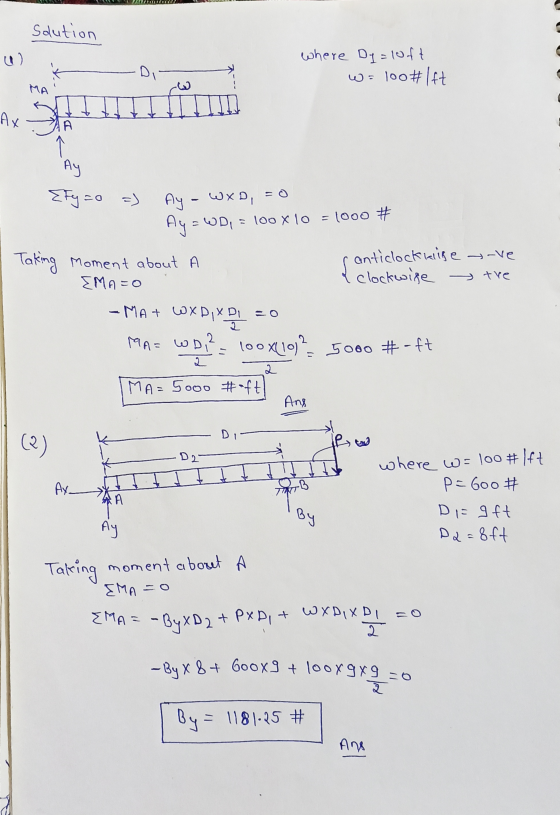

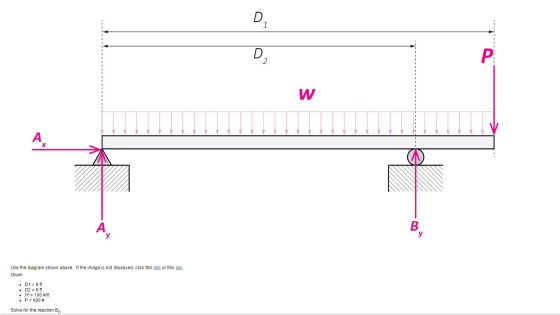

w Use the diagram shown above. If the image is not displayed, chick this link or this link Given . D1-51 - W=300 / Solve for the reaction Ay Use the diagram shown above. If the image is not displayed, click this link or this link Given D1 = 5 ft W = 300 #/ft Solve for the reaction Ay.
Use matrix methods to find the image location and magnification in the optical system shown in...
Use matrix methods to find the image location and magnification in the optical system shown in Fig. 2 (n=5 cm, f-8 cm, dl=4 cm, d2=7cm) fl f2 C) d1 d2 Fig. 2
Use the graphical method to construct the shear-force and bending moment diagrams for the beam shown....
Use the graphical method to construct the shear-force and bending moment diagrams for the beam shown. Let a=4.0 ft, b=5.0 ft, c=5.0 ft,d=3.0 ft. w = 7.5 kips/ft and P = 30 kips. Construct the shear-force and bending-moment diagrams on paper and use the results to answer the questions in the subsequent parts of this GO exercise. с D E b For this loading, calculate the reaction forces A, and E, acting on the beam. Positive values for the reactions...
Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Let...
Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Let a=4.0 ft, b=5.0 ft, c=5.0 ft, d=3.0 ft, w = 11.5 kips/ft and P = 63 kips. Construct the shear-force and bending-moment diagrams on paper and use the results to answer the questions in the subsequent parts of this GO exercise. W X B D E a b d For this loading, calculate the reaction forces Ay and Ey acting on the beam. Positive...
Part 1 Use the graphical method to construct the shear-force and bending-moment diagrams for the beam...
Part 1 Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Let a=3.0 ft, b=7.0 ft, c=5.0 ft, d=4.0 ft, w = 13 kips/ft and P = 90 kips. Construct the shear-force and bending-moment diagrams on paper and use the results to answer the questions in the subsequent parts of this GO exercise. w B с D E b с d For this loading, calculate the reaction forces Ay and Ey acting on the...
a. Draw a free-body diagram for the beam shown above and derive expressions for the support...
a. Draw a free-body diagram for the beam shown above and derive
expressions for the support reactions at A and B
b. Draw internal force (shear and bending moment) diagrams.
c. If a = 10 ft and M0 = 200 ft-lb, use the dimensions of the
beam cross-section, provided on the previous page, to compute the
maximum flexural and shear stresses on the beam cross-section.
d. If the allowable bending stress is 925 psi and the allowable
shear stress is...
16. Beam Deflection Using the method of progressive diagrams, find the centerline deflection for the given...
16. Beam Deflection Using the method of progressive diagrams, find the centerline deflection for the given beam. Give the required values for each diagram (load, shear, moment slope(EI) and deflection) shown in the problem statement (see the pdf). 3 w 1 DATASET: 1 -2. Length A Length B Point Load P Uniform Load w Modulus of Elasticity Moment of Inertia 9 FT 10 FT 13 KIPS 1 KLF 29000 KSI 600 IN 4 -A- B- -- A - Correct Answer...
Question completion Status: QUESTION 1 42 3A 20V I 322 12 V IMAGE LINK Use source...
Question completion Status: QUESTION 1 42 3A 20V I 322 12 V IMAGE LINK Use source transformation to find Vo (in Volts) in the circuit shown above. Assume I = 3 A Click Save and Submit to save and submit. Click Save All Answers to save all answers 1
Question (8) Directions: Click the Case Link above and use the information provided in Hearth and...
Question (8) Directions: Click the Case Link above and use the information provided in Hearth and Home, Part B, to answer this question: Hearth and Home presently offers 30 day terms to its customers . If Hearth and Home changed its terms to 45 days, and as a result, all customers paid 15 days later than before, what would be the approximate effect on the company's borrowing needs in 20Y3?
PROBLEM 3 (25%) For the problem shown below, the free body diagram (FBD) is superimposed showing...
PROBLEM 3 (25%) For the problem shown below, the free body diagram (FBD) is superimposed showing the reactions forces (the reaction forces are given). Ax = 0; Ay = 9 kip, Cy = 33 kip 1. Draw the shear force diagram. Identify values at kink points (no equations required). 2. Draw the bending moment diagram. Identify values at kink points (no equations required). 3. Determine the value of the maximum positive moment in the beam (Mmax). 4. Compute the vertical...
w Use the diagram shown above. If the image is not displayed, chick this link or this link Given . D1-51 - W=300 / Solve for the reaction Ay Use the diagram shown above. If the image is not displayed, click this link or this link Given D1 = 5 ft W = 300 #/ft Solve for the reaction Ay.
Use matrix methods to find the image location and magnification in the optical system shown in Fig. 2 (n=5 cm, f-8 cm, dl=4 cm, d2=7cm) fl f2 C) d1 d2 Fig. 2
Use the graphical method to construct the shear-force and bending moment diagrams for the beam shown. Let a=4.0 ft, b=5.0 ft, c=5.0 ft,d=3.0 ft. w = 7.5 kips/ft and P = 30 kips. Construct the shear-force and bending-moment diagrams on paper and use the results to answer the questions in the subsequent parts of this GO exercise. с D E b For this loading, calculate the reaction forces A, and E, acting on the beam. Positive values for the reactions...
Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Let a=4.0 ft, b=5.0 ft, c=5.0 ft, d=3.0 ft, w = 11.5 kips/ft and P = 63 kips. Construct the shear-force and bending-moment diagrams on paper and use the results to answer the questions in the subsequent parts of this GO exercise. W X B D E a b d For this loading, calculate the reaction forces Ay and Ey acting on the beam. Positive...
Part 1 Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Let a=3.0 ft, b=7.0 ft, c=5.0 ft, d=4.0 ft, w = 13 kips/ft and P = 90 kips. Construct the shear-force and bending-moment diagrams on paper and use the results to answer the questions in the subsequent parts of this GO exercise. w B с D E b с d For this loading, calculate the reaction forces Ay and Ey acting on the...
a. Draw a free-body diagram for the beam shown above and derive
expressions for the support reactions at A and B
b. Draw internal force (shear and bending moment) diagrams.
c. If a = 10 ft and M0 = 200 ft-lb, use the dimensions of the
beam cross-section, provided on the previous page, to compute the
maximum flexural and shear stresses on the beam cross-section.
d. If the allowable bending stress is 925 psi and the allowable
shear stress is...
16. Beam Deflection Using the method of progressive diagrams, find the centerline deflection for the given beam. Give the required values for each diagram (load, shear, moment slope(EI) and deflection) shown in the problem statement (see the pdf). 3 w 1 DATASET: 1 -2. Length A Length B Point Load P Uniform Load w Modulus of Elasticity Moment of Inertia 9 FT 10 FT 13 KIPS 1 KLF 29000 KSI 600 IN 4 -A- B- -- A - Correct Answer...
Question completion Status: QUESTION 1 42 3A 20V I 322 12 V IMAGE LINK Use source transformation to find Vo (in Volts) in the circuit shown above. Assume I = 3 A Click Save and Submit to save and submit. Click Save All Answers to save all answers 1
Question (8) Directions: Click the Case Link above and use the information provided in Hearth and Home, Part B, to answer this question: Hearth and Home presently offers 30 day terms to its customers . If Hearth and Home changed its terms to 45 days, and as a result, all customers paid 15 days later than before, what would be the approximate effect on the company's borrowing needs in 20Y3?
PROBLEM 3 (25%) For the problem shown below, the free body diagram (FBD) is superimposed showing the reactions forces (the reaction forces are given). Ax = 0; Ay = 9 kip, Cy = 33 kip 1. Draw the shear force diagram. Identify values at kink points (no equations required). 2. Draw the bending moment diagram. Identify values at kink points (no equations required). 3. Determine the value of the maximum positive moment in the beam (Mmax). 4. Compute the vertical...
