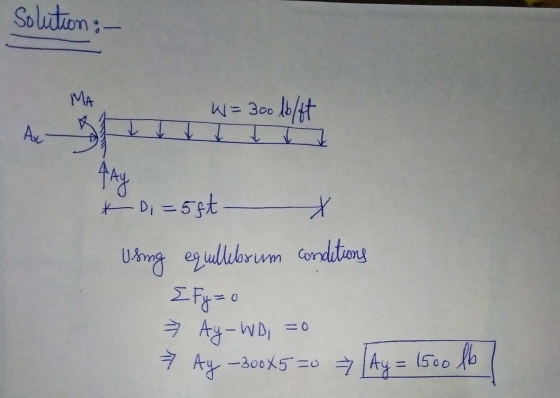

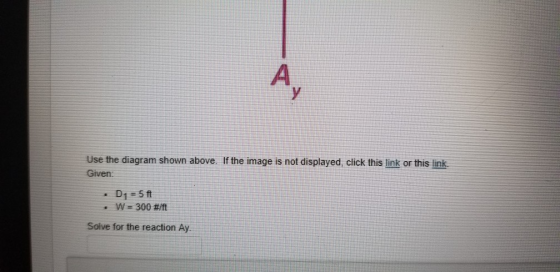

Use the diagram shown above. If the image is not displayed, click this link or this link. Given: • D1 = 10 ft . W = 100 #ft Solve for the moment MA. w Use the diagram shown above. If the image is not displayed, click this link or this link. Given • D1 = 9 ft • D2 = 8 ft . W = 100 #/ft . P = 600 # Solve for the reaction By.
Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Let...
Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Let a=4.0 ft, b=5.0 ft, c=5.0 ft, d=3.0 ft, w = 11.5 kips/ft and P = 63 kips. Construct the shear-force and bending-moment diagrams on paper and use the results to answer the questions in the subsequent parts of this GO exercise. W X B D E a b d For this loading, calculate the reaction forces Ay and Ey acting on the beam. Positive...
Part 1 Use the graphical method to construct the shear-force and bending-moment diagrams for the beam...
Part 1 Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Let a=3.0 ft, b=7.0 ft, c=5.0 ft, d=4.0 ft, w = 13 kips/ft and P = 90 kips. Construct the shear-force and bending-moment diagrams on paper and use the results to answer the questions in the subsequent parts of this GO exercise. w B с D E b с d For this loading, calculate the reaction forces Ay and Ey acting on the...
Question completion Status: QUESTION 1 42 3A 20V I 322 12 V IMAGE LINK Use source...
Question completion Status: QUESTION 1 42 3A 20V I 322 12 V IMAGE LINK Use source transformation to find Vo (in Volts) in the circuit shown above. Assume I = 3 A Click Save and Submit to save and submit. Click Save All Answers to save all answers 1
Use the graphical method to construct the shear-force and bending moment diagrams for the beam shown....
Use the graphical method to construct the shear-force and bending moment diagrams for the beam shown. Let a=4.0 ft, b=5.0 ft, c=5.0 ft,d=3.0 ft. w = 7.5 kips/ft and P = 30 kips. Construct the shear-force and bending-moment diagrams on paper and use the results to answer the questions in the subsequent parts of this GO exercise. с D E b For this loading, calculate the reaction forces A, and E, acting on the beam. Positive values for the reactions...
5- The beam shown below has an internal hinge at point C. Support A is fixed...
5- The beam shown below has an internal hinge at point C. Support A is fixed while support D is a roller. a-Draw the free body diagram for the beam (5 points) b-solve for the reaction forces at support A and D Ax= (5 point) Ay Dy = (5 points) (5 point) Am = (5 points) 50K 3K/ft B 10 ft 10 ft 10 ft
Please help with this question. 5- The beam shown below has an internal hinge at point...
Please help with this question.
5- The beam shown below has an internal hinge at point C. Support A is fixed while support D is a roller a-Draw the free body diagram for the beam (5 points) b-solve for the reaction forces at support A and D Ax= (5 point) Ay = (5 point) Am = (5 points) Dy = (5 points) 50K 3K/ft OD B C 7777 10 ft 10 ft 10 ft * >
Statics 5- The beam shown below has an internal hinge at point C. Support A is...
Statics
5- The beam shown below has an internal hinge at point C. Support A is fixed while support D is a roller. a-Draw the free body diagram for the beam (5 points) b- solve for the reaction forces at support A and D (5 point) Ay (5 points) A- (5 point) Am (5 points) D- SOK 3K/A B 10.17 10 ft 10 ft *
For the beam shown, assume that ET-130 ,000 kip-ft2, P = 80 kips, and w = 4.5 kips/ft. Use discontinuity functions to determine (a) the reactions at A, C, and D (b) the beam deflection at B Assume LA...
For the beam shown, assume that ET-130 ,000 kip-ft2, P = 80 kips, and w = 4.5 kips/ft. Use discontinuity functions to determine (a) the reactions at A, C, and D (b) the beam deflection at B Assume LAB = LBC = 9.0 ft, LCD = 18.0 ft. AB CD Sum the forces in the y direction to find an expression that includes the reaction forces Ay, Cy, and Dy acting on the beam. Positive values for the reactions are...
5- The beam shown below has an internal hinge at point C. Support A is fixed...
5- The beam shown below has an internal hinge at point C. Support A is fixed while support D is a roller. a-Draw the free body diagram for the beam (5 points) b-solve for the reaction forces at support A and D Ax (5 point) Ay (5 point) Am (5 points) D- (5 points) SOK 3K/ft # B с 10 10 ft 10 ft B ot - inted CORE IS CF-33 A1 A2
Use the diagram shown above. If the image is not displayed, click this link or this link. Given: • D1 = 10 ft . W = 100 #ft Solve for the moment MA. w Use the diagram shown above. If the image is not displayed, click this link or this link. Given • D1 = 9 ft • D2 = 8 ft . W = 100 #/ft . P = 600 # Solve for the reaction By.
Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Let a=4.0 ft, b=5.0 ft, c=5.0 ft, d=3.0 ft, w = 11.5 kips/ft and P = 63 kips. Construct the shear-force and bending-moment diagrams on paper and use the results to answer the questions in the subsequent parts of this GO exercise. W X B D E a b d For this loading, calculate the reaction forces Ay and Ey acting on the beam. Positive...
Part 1 Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Let a=3.0 ft, b=7.0 ft, c=5.0 ft, d=4.0 ft, w = 13 kips/ft and P = 90 kips. Construct the shear-force and bending-moment diagrams on paper and use the results to answer the questions in the subsequent parts of this GO exercise. w B с D E b с d For this loading, calculate the reaction forces Ay and Ey acting on the...
Question completion Status: QUESTION 1 42 3A 20V I 322 12 V IMAGE LINK Use source transformation to find Vo (in Volts) in the circuit shown above. Assume I = 3 A Click Save and Submit to save and submit. Click Save All Answers to save all answers 1
Use the graphical method to construct the shear-force and bending moment diagrams for the beam shown. Let a=4.0 ft, b=5.0 ft, c=5.0 ft,d=3.0 ft. w = 7.5 kips/ft and P = 30 kips. Construct the shear-force and bending-moment diagrams on paper and use the results to answer the questions in the subsequent parts of this GO exercise. с D E b For this loading, calculate the reaction forces A, and E, acting on the beam. Positive values for the reactions...
5- The beam shown below has an internal hinge at point C. Support A is fixed while support D is a roller. a-Draw the free body diagram for the beam (5 points) b-solve for the reaction forces at support A and D Ax= (5 point) Ay Dy = (5 points) (5 point) Am = (5 points) 50K 3K/ft B 10 ft 10 ft 10 ft
Please help with this question.
5- The beam shown below has an internal hinge at point C. Support A is fixed while support D is a roller a-Draw the free body diagram for the beam (5 points) b-solve for the reaction forces at support A and D Ax= (5 point) Ay = (5 point) Am = (5 points) Dy = (5 points) 50K 3K/ft OD B C 7777 10 ft 10 ft 10 ft * >
Statics
5- The beam shown below has an internal hinge at point C. Support A is fixed while support D is a roller. a-Draw the free body diagram for the beam (5 points) b- solve for the reaction forces at support A and D (5 point) Ay (5 points) A- (5 point) Am (5 points) D- SOK 3K/A B 10.17 10 ft 10 ft *
For the beam shown, assume that ET-130 ,000 kip-ft2, P = 80 kips, and w = 4.5 kips/ft. Use discontinuity functions to determine (a) the reactions at A, C, and D (b) the beam deflection at B Assume LAB = LBC = 9.0 ft, LCD = 18.0 ft. AB CD Sum the forces in the y direction to find an expression that includes the reaction forces Ay, Cy, and Dy acting on the beam. Positive values for the reactions are...
5- The beam shown below has an internal hinge at point C. Support A is fixed while support D is a roller. a-Draw the free body diagram for the beam (5 points) b-solve for the reaction forces at support A and D Ax (5 point) Ay (5 point) Am (5 points) D- (5 points) SOK 3K/ft # B с 10 10 ft 10 ft B ot - inted CORE IS CF-33 A1 A2
