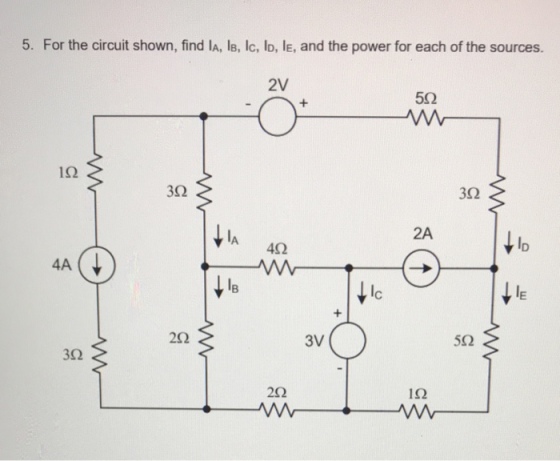

5. For the circuit shown, find la, ls, lc, lo, lE, and the power for each...

Question

Question

engineering Electrical-Engineering

Answer 1

Answer #1

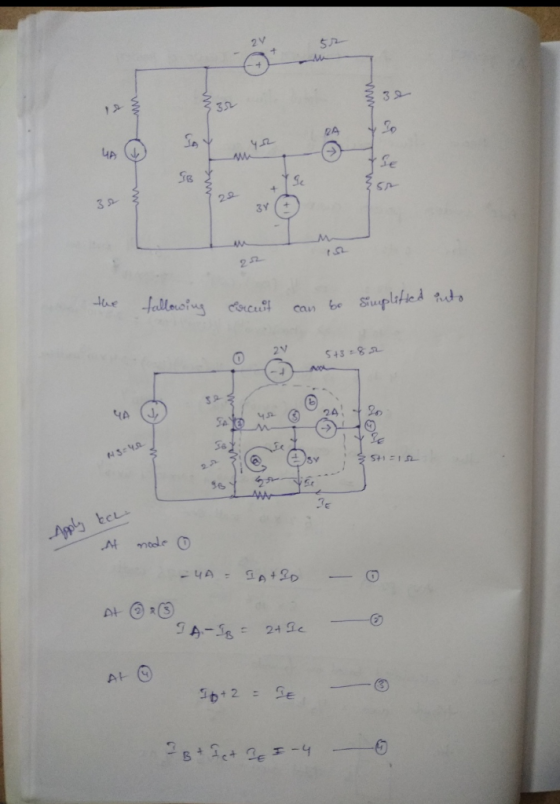

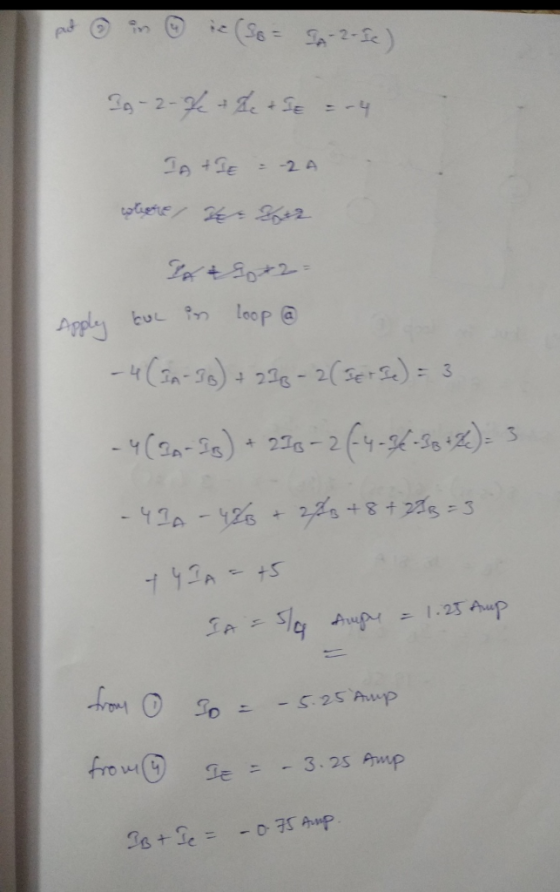

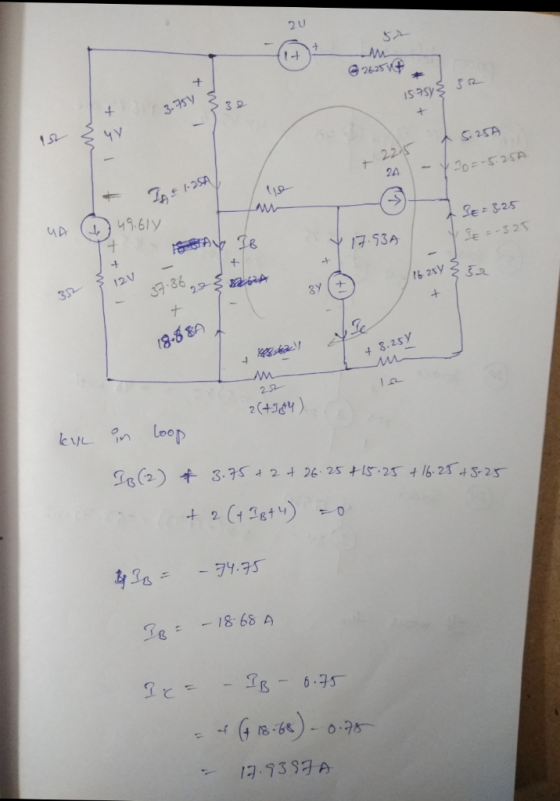

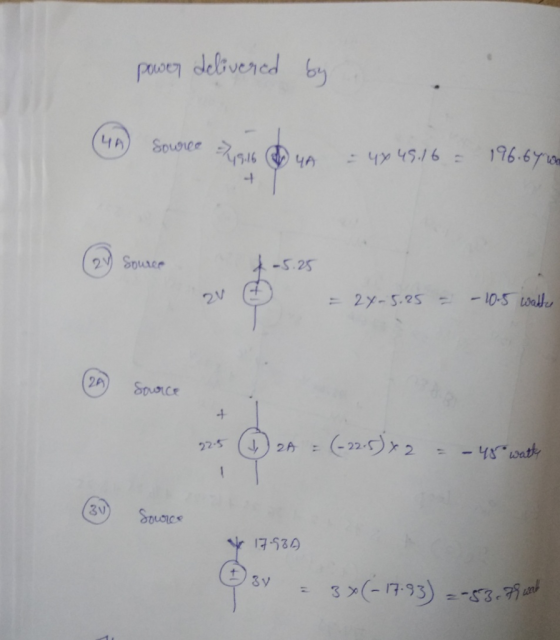

2V is Sc 3 9- S 2 56 JE if you have any doubt regarding explanation please comment.

thankyou

Answer 2

Similar Homework Help Questions

5. For the circuit shown, find lA, IB, Ic, lb, lE, and the power for each...

5. For the circuit shown, find lA, IB, Ic, lb, lE, and the power for each of the sources. 2V 5Ω 3Ω 3Ω la 4Ω 4A lE 2Ω 3Ω 2Ω
For the circuit shown, find lA, IB, Ic, ID, lE, and the power for each of...

For the circuit shown, find lA, IB, Ic, ID, lE, and the power for each of the sources. 8V 2.5 30 4.52 3Ω A 2A 652 4A lB 22 16V 5Ω 7Q 202 22 +
