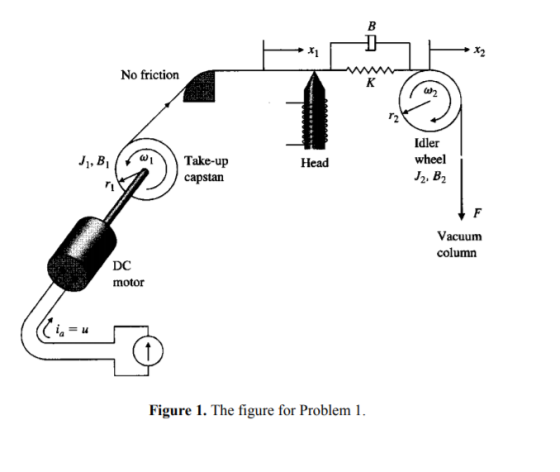

A simplified sketch of a computer tape drive is shown in Figure
1. Write the equations of motion. K and B are the spring constant
and damping of the tape stretch, respectively and 1 and 2
represent the angular velocities
.
