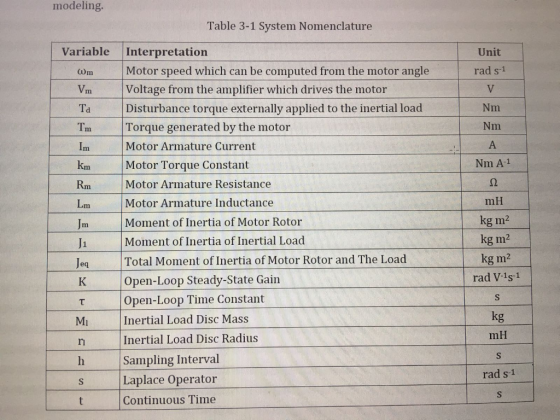

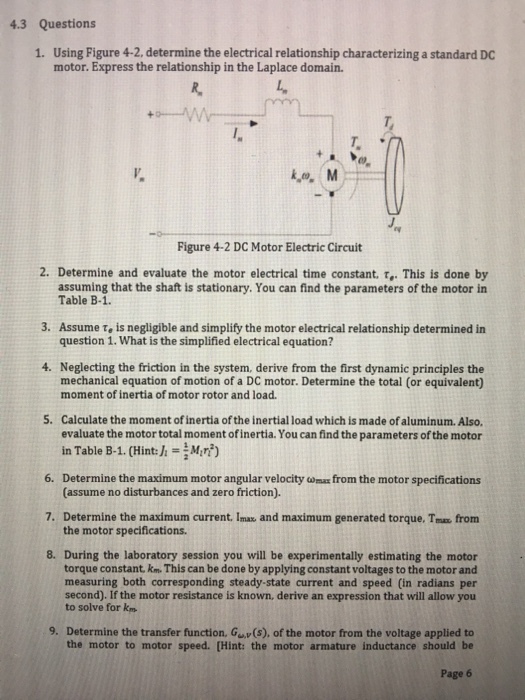

43 Questions 1. Using Figure 4-2, determine the electrical relationship characterizing a standard DC motor. Express...
01- (08 Pts) Figure below is a diagram of a DC motor connected in parallel to a current source is the torque and back-EMF constants of the motor are K. K respectively, the motor resistance is R, also modeled as connected in parallel, the motor inertia is I. (not shown), and the motor inductance is negligible. The motor load is an inertia compliance (stiffness) K and viscous friction coefficient b, and it is attached to the motor via a gear...
Q 1- 08 Pts) Figure below is a diagram of a DC motor connected in parnllel to a current source i,. The torque and back-EMF constants of the motor are Ko K respectively, the motor resistance is R, also modeled as connected in parallel, the motor inertia is 1- (not shown), and the motor inductance is negligible. The motor load is an inertia J with compliance (stiffness) K and viscous friction coefficient b, and it is attached a gear pair...
need the answer for the question no. 1
ENGR 113 Homework DC Motor Objectives Plot the Torque-Speed curve for a given DC motor given the stall torque and no load speed values Calculate the rotational power for a DC motor given the stall torque and no load speed values Plot the rotational power on a Torque-Speed curve to see the relationship between torque, speed, and power Calculate the maximum efficiency of a DC motor. Calculate the operating point for a...
I can not seem to get the right answers. Thank you!
Given a 1/4 hp, separately excited, dc motor with the following parameters: K = 0.61, R, 15Ω, La-120mb. J = 0.005, and b = 0.0006. The armature voltage is controlled by a 120-V dc PWM source operating at 100 Hz 1. What is the armature current if the no-load speed is 1800 rpm when the armature supply is operated at a 100% duty cycle? 2. What is the no-load...
Consider the DC motor-driven wheeled mobile robot shown in figure, in which m is the mass of the wheeled mobile robot, r is the radius of the driving wheel, and T is the torque delivered to the wheeled mobile robot by the DC motor. For simplicity, the motion is restricted to one spatial dimension. The figure also shows the simplified drive system, including the equivalent electrical circuit of the DC motor, the gears, and the driving wheel. The motor parameter...
Question 3: DC motors can be simplistically modeled as shown in Figure 5 MoTor back emf Vi: +1 Resistor Ra Ia Figure 5: Simplified model of DC Motor (a) Write the three characteristic equations that determine the behavior of the DC motor. Denote torque constant and speed constant as Ka, K, respectively. (b) Motor parameters are the quantities that define the behavior of the motor. List the motor parameters from the described model. What are their units? (c) For given...
Using Approach 2 please.
The basic electric circuit of a permanent-magnet DC motor and the free body diagram of the load attached to it are shown below. be The parameters of this system are identified as follows: Moment of inertia of the system, J-001 kg.m" /s2 Damping constant of the mechanical system, b-0.1N.m.s Armature and motor constants. A. K. K, 0.01 N·m/Amp Electric resistance, R-1 ohm Electric inductance, L = 0.5 H For this system, the goal is to plot...
QUESTIONS Question-3: Draw "speed vs. torque" curve using data in Table-1. The completed graph represents the speed vs. torque characteristics of a typical DC shunt-wound motor. Terax Question-4: Calculate the speed regulation (full load - 12 lbf.in) using the equation: 2-143) 143 (no load Regulation (full load speed) Speed regulation- % Part-II - Motor Efficiency Calculation: Set the dynamometer control knob at its full CW position (to provide the maximum starting load for the shunt-wound motor). Turn on the power...
Higher Colleges of Technology Faculty of Electronic Engineering Class Assignment 4 Second Order Systems EEC 4043: Control Systems Score from 5 Student Name Student ID # You are required to analyze a DC motor speed control system shown in Figure I and 2 below. Figure 1 shows the equivalent circuit diagram of the DC motor control system, while Figure 2 shows the block diagram of the system feedback control G(s) drmanvee Motor Figare 2: The System Feedhack syacm daprams Figue...
