Two solenoids are side by side. The switch S, initially open, is closed. The induced current...

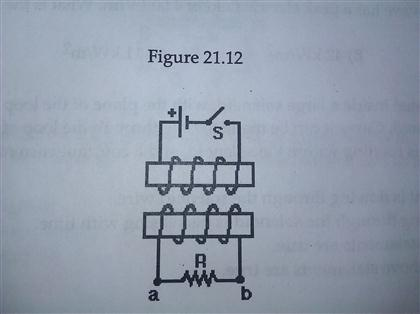

Two solenoids are side by side. The switch S, initially open, is closed. The induced current through the resistor R is:
zero
from a to b
from b to a
Homework Answers
as the switch is closed the current will flow in upper circuit fron left to right creating magnetic flux in left direction. as the current is increasing, the other circuit will try to oppose it by producing magnetic flux in opposite direction or right direction. hence, the current flows from,
b to a
