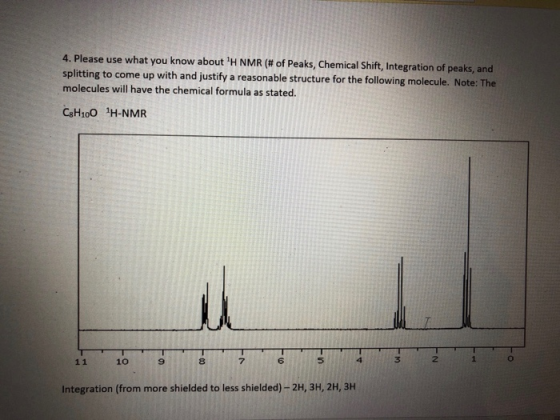

4. Please use what you know about 'H NMR (# of Peaks, Chemical Shift, Integration of...

Question

Question

science chemistry

Answer 1

Answer #1

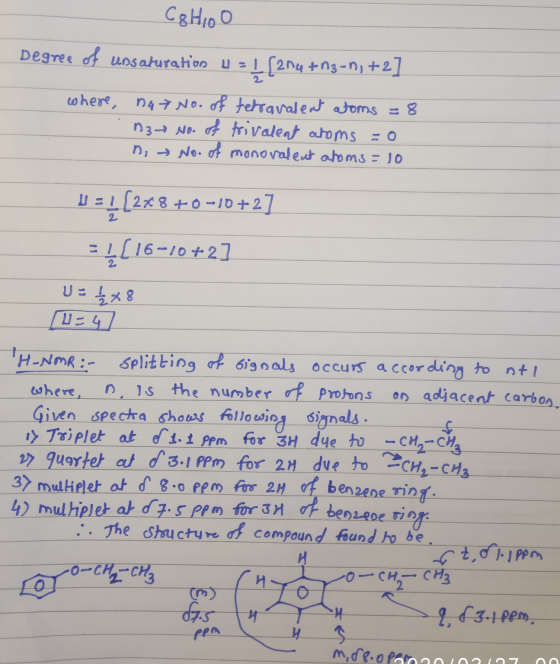

C&H OO Degree of unsaturation D=! (214+ng-ni+2] where, nat No. of terravalent atoms = 8 13 No. of trivalent atoms =0 n, No. o

Answer 2
