Question

The diagram below shows the situation described in the problem. The focal length of the mirror is labeled f; the scale on the optical axis is in centimeters. Draw the three special rays Ray1, Ray2, and Ray3 as described in the Tactics Box above, and label each ray accordingly. Draw the rays from the tip of the object to the mirror plane (dashed vertical line). Do not draw the reflected rays. Draw the vectors starting from the tip of the object making use of the crosshair to locate the tip. The location and orientation of the vectors will be graded.

Ray 1: ray parallel to axis

Ray 2: ray through focal point

Ray 3: ray striking the center of the mirror

add element vector sum x delete element i attributes Object reset help Ray 1 Ray Ray2

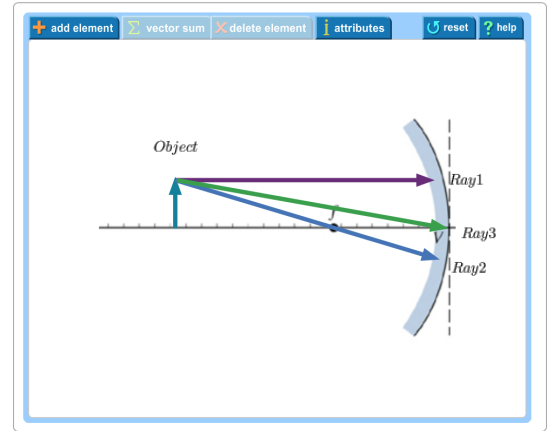

this is the answer i have and im told it is wrong. Can someone help me ?

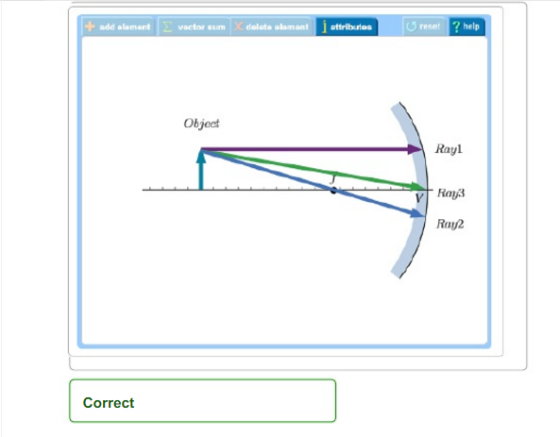

Answer 1
