Question

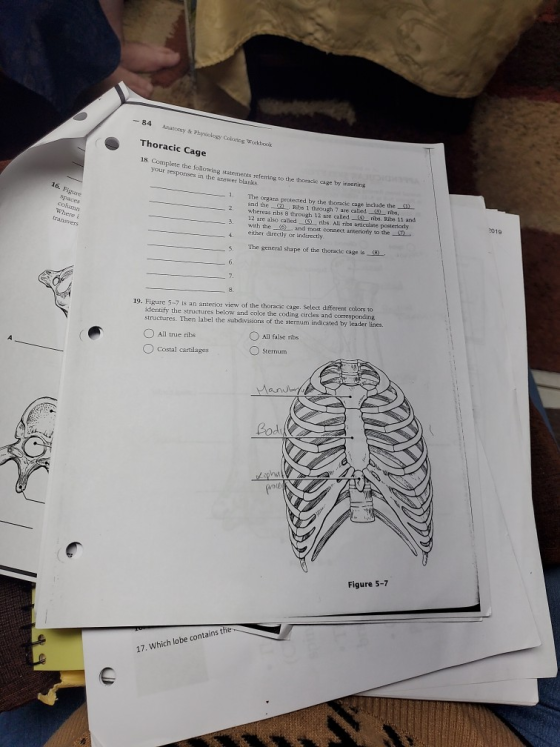

-84 Anatomy & Phylogy Coloring Workbook Thoracic Cage 18. Complete the followme sering to the orice cage try insetting your responses in the answer blanks 16. Figure Where transvers The organs protected by the thoracic care inchide the and the Bibs 1 through 7 are called ribs, whereas ribs 8 through 12 are called ribs, abs 11 and 12 are also called 15 rbs. All ribs article posterioty with them and most connect and to the either directly or indirectly 2019 mir The general shape of the thoracic cage is (3 19. Figure 5-7 is an anterior view of the thoracic cave. Select different colors to identify the structures below and color the coding circles and corresponding structures. Then label the subdivisions of the sternum indicated by leader lines. All true ribs Costal cartilages O All false ribs Sternum Manub Bodil Vpl Figure 5-7 17. Which lobe contains the

Answer 1

18. The organs protected by the thoracic cage include the Lung and the Heart. Ribs 1 to 7 are called True ribs or Vertebrosternal ribs. Ribs 8 to 12 are called False ribs or Vertebrochondral ribs. Ribs 11 and 12 are also called Floating ribs. The ribs articulate posteriorly with the T1 to T12 thoracic vertebrae, and most connect anteriorly to the costal cartilages to the sternum either directly or indirectly. The general shape of the thoracic cage is a domed birdcage.

19. The quadrangular shaped upper portion is Manubrium.

The second sub-division indicated by the leading line is the Sternum body.

The last part indicated is the Xiphoid process.
