![lo SmA R1 8.0kQ 5Ks. R4 R3 4.0kQ 2.0kQ 13 a) Solve for 13 using Nodal analysis [20pts] Redraw the entire circuit and label all nodes. b) Solve for 13 using mesh analysis [20 pts]-Redraw the entire circuit and carefully label your mesh currents.](http://img.homeworklib.com/questions/995c3ea0-f15d-11eb-bb8b-e3bf71787b08.png?x-oss-process=image/resize,w_560)
Homework Answers
Add Answer to:
A and B please! Thank you!

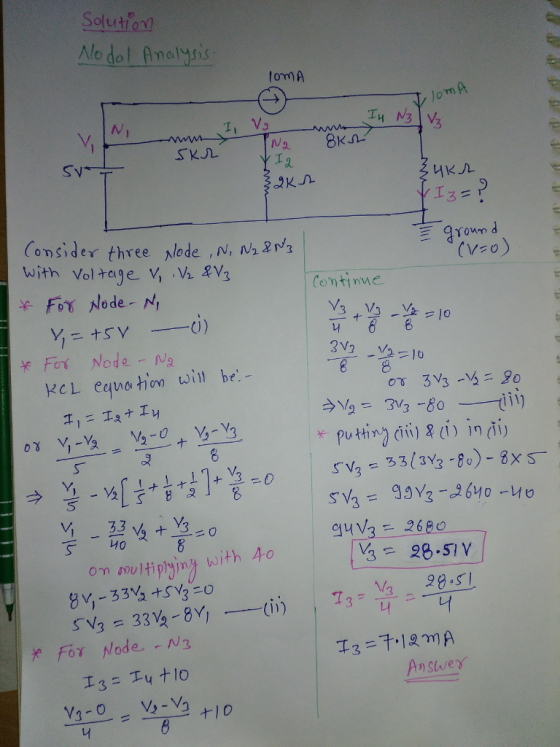

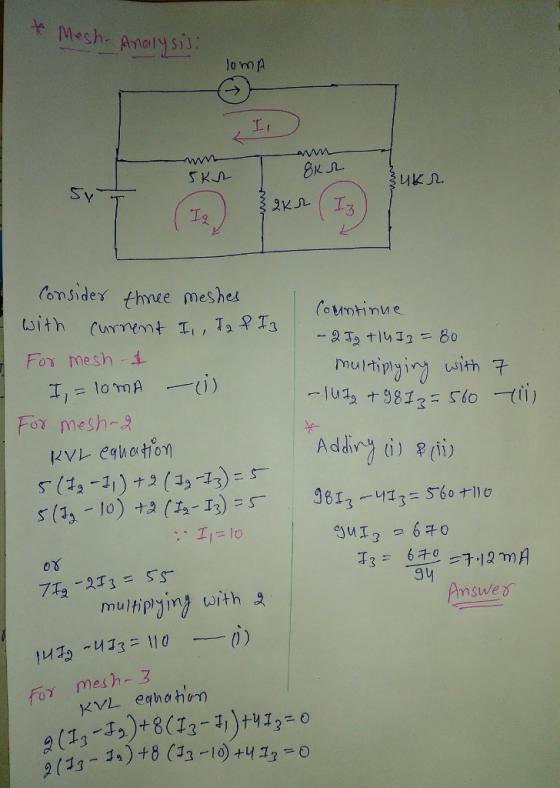

a) Solve for 13 using Nodal analysis-Redraw the entire circuit...
