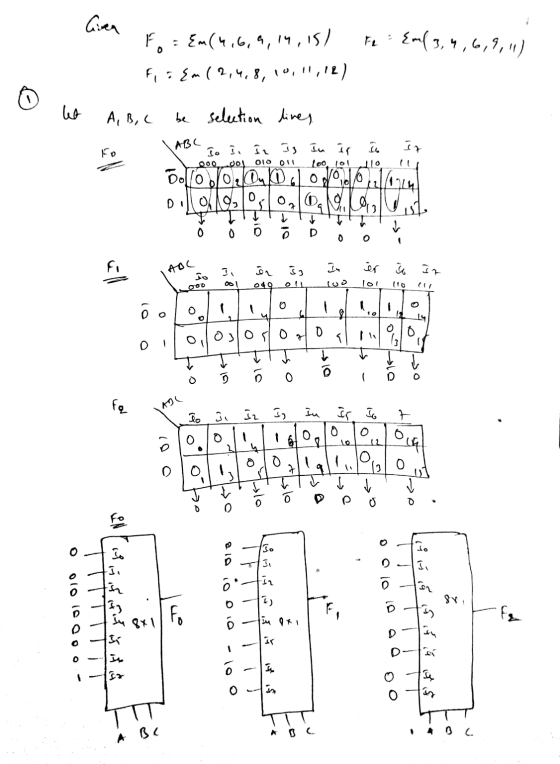

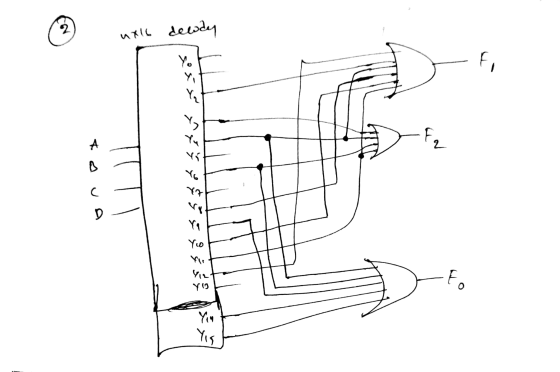

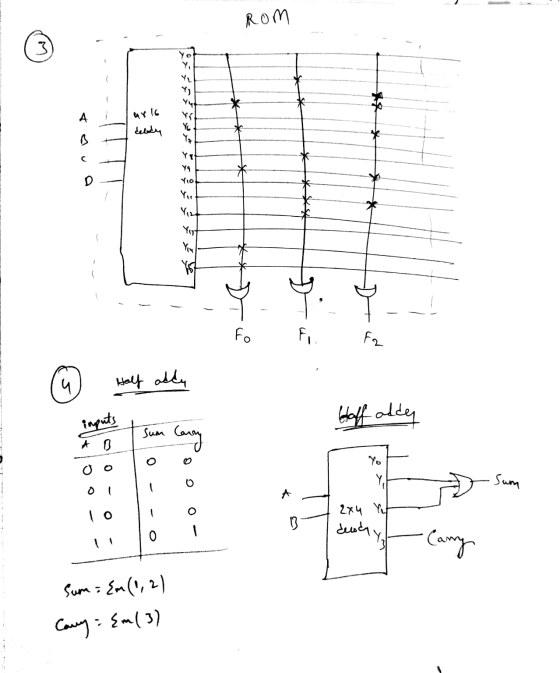

if
you have any doubts you can comment below

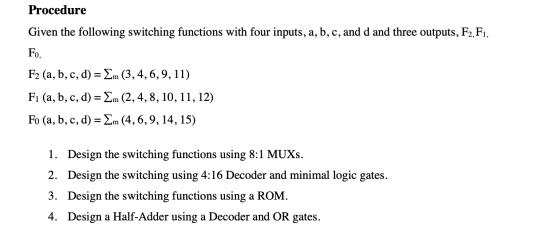

Procedure Given the following switching functions with four inputs, a, b, c, and d and three...
Design a circuit with three inputs (A, B, C) and two outputs (F1, F2). The first output F1 is logic 1 if the number of l’s in the binary number is less than the number of O's, otherwise F1 is logic 0. The second output F2 is 1 if the binary input is 2, 4, 5, 6,7 otherwise the second output F2 is logic 0. a. Derive the truth-table for F1 and F2 as a function of the 3 inputs....
Design a circuit with three inputs (A, B, C) and two outputs (F1, F2). The first output F1 is 1 when the binary input is 2, 3, 4, 7, otherwise the first output F1 is logic 0. The second output F2 is 1 when the input variables have more l's than 0's. The output is 0 otherwise. Input/ Output ABC F1 F2 000 001 010 011 100 101 a. Derive the truth-table for F1 and F2 as a function of...
Computer architecture
Having the next Boolean functions: F1(x,y,z)-П (1, 3, 5) . F2(x,y,z)-Σ (0, 2, 4, 5) . 1. Make one logic gate design circuit, using AND, OR and NOT logic gates (20 points). 2. Design two 4-to-1 selectors, one for each Boolean function (20 points) 3. Design one 3-to-8 decoder to solve both Boolean functions (20 points) 4. Design a 8x2 ROM to solve both Boolean functions (20 points) 5. Design a 3x5x2 PLA to solve both Boolean functions...
Given four-input Boolean functions, F1 (A,B,C,D) = Σm(4, 5, 10, 11, 12) F2 (A,B,C,D) = Σm(0, 1, 3, 4, 8, 11) F3 (A,B,C,D) = Σm(0, 4, 10, 12, 14) (a) Realize F1, F2 and F3 using a ROM. (b) Realize F1, F2 and F3 using a PLA of minimum size. Show the PLA table and location of switches.
Q2A: Truth tables of three logic functions F1, F2 and F3 given above. Implement the function F1, F2 and F3 using 3 to 8 decoder? (Assume a 3to8 decoder component given to you, if required you may use minimum number of additional logic gates to support your design with 3 to 8 decoder) (Points) Q2B: Write HDL code to implement the above function F1, F2 and F3. All three function should include in on HDL code. In you HDL code use...
[10] A combinational circuit is specified by the following three Boolean function: F1(A,B,C) = {(2,4,7) F2(A, B, C) = 2(0,3) F3(A,B,C) = {(0,2,3,4,7) Implement the circuit with a decoder constructed with NAND gates and NAND or NOR gates connected to the decoder outputs. Use block diagram for the decoder. Minimize the number of inputs in the external gates.
write the answers in the PLA map given in the question
please solve the question completely and show the steps ...
thumb up will be given
Show how to program the two PLAs to realize the following functions of 5 variables (A, B, C, D, E) without using additional logic gates. Indicate all inputs, outputs and necessary connections. (15 points) ICO: 7] F1 = (A,B,C + ABC + ABC') D'E, F2 = (ABC, + A,B,C), DE P4/4
Show how to...
3. PRELAB 1. A half adder is a circuit that has two inputs, A and B, and two outputs, sum and carry. It adds A and B according to the rules of binary addition and outputs the sum and carry. Design a half-adder circuit using one XOR gate and one AND gate. Verify your design through truth table and with Multisim. 2. Whereas the half adder added two inputs A and B, the full adder adds three inputs together, A,...
1. (15 pts) Simplify the following Boolean functions using K-maps: a. F(x,y,z) = (1,4,5,6,7) b. F(x, y, z) = (xy + xyz + xyz c. F(A,B,C,D) = 20,2,4,5,6,7,8,10,13,15) d. F(A,B,C,D) = A'B'C'D' + AB'C + B'CD' + ABCD' + BC'D e. F(A,B,C,D,E) = (0,1,4,5,16,17,21,25,29) 2. (12 pts) Consider the combinational logic circuit below and answer the following: a. Derive the Boolean expressions for Fi and F2 as functions of A, B, C, and D. b. List the complete truth table...
We are interested in designing a circuit that implements the following three Boolean functions: 3. h(x,y,z)=Σm(1,4,6) f1x,y,z)- > m(1,4,6) y-m35) (x,y, z) Σ m (2,4,6,7) 左 You are supposed to implement the circuit with a decoder constructed with NAND gates (a) [12pt] Start by drawing the block diagram of a NAND-based decoder with three inputs (x,y,z), labelling all the outputs with their corresponding Boolean functions (b) [8pt) Using a new block diagram of the NAND-based decoder, implement the circuit using...
