3. PRELAB 1. A half adder is a circuit that has two inputs, A and B,...
1. Write the truth table for a half adder (inputs A and B; outputs Sum and...

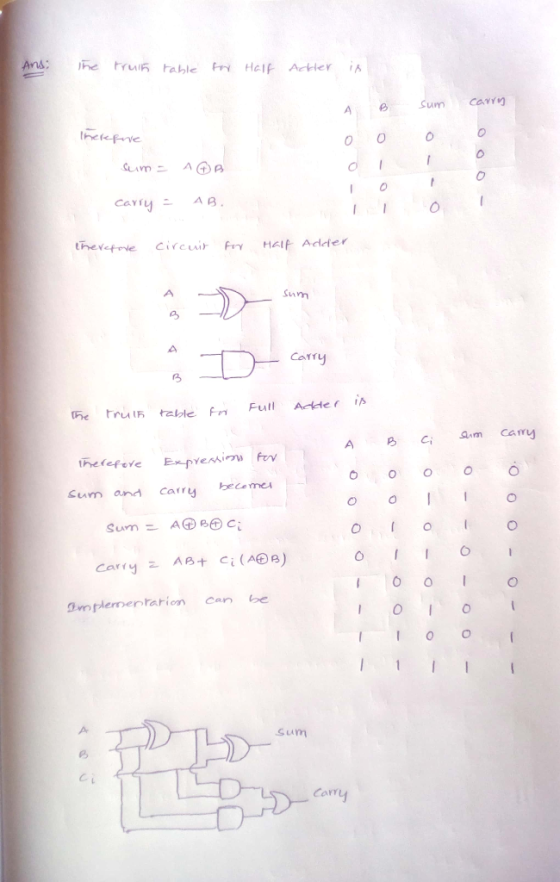

1. Write the truth table for a half adder (inputs A and B; outputs Sum and Carry). From the truth table design a logic circuit that will act as a half adder.
In quartus prime Implement a 4-bit adder/subtractor using structural VHDL. The circuit will have two 4-bit...
In quartus prime Implement a 4-bit adder/subtractor using structural VHDL. The circuit will have two 4-bit data inputs (A and B), a control line (add /sub), a 4-bit sum output (S), a carry-out bit (Cout), and an overflow flag. You need two VHDL files (fulladd.vhd) and (hybrid.vhd) to implement the design. VHDL code, fulladd.vhd, will implement a single-bit full adder. The VHDL file, hybrid.vhd, will create four instances of the single-bit full adder. Four XOR gates will be needed to...
a full-adder circuit is used to add 2 bits A and B and the carry (Cin)...
a full-adder circuit is used to add 2 bits A and B and the carry (Cin) that resulted from the addition of the previous 2 bits. It then produces a SUM S and a carry out (Cout) that would be added to the more significant bits. Generate a truth table that has inputs A, B and Cin and the 2 outputs S and Cout. Find the logical function from the truth table and simplify it, if possible. Implement the function...
1. A 2-bit adder may be constructed by connection two full adders (i.e. 1-bit adders) or directly...
Can you please show the work!plzz
1. A 2-bit adder may be constructed by connection two full adders (i.e. 1-bit adders) or directly. For the latter, suppose the inputs (corresponding to the operands A and B) are A, Ao, B1 and Bo; and the outputs are So and S, for the 2-bit sum, S, and a carry-out, C . Give a truth table for the "direct" adder » From the truth table, derive a logic expression in sum-of-products form Give...
number 4 and 5 please! PROBLEM STATEMENT A logic circuit is needed to add multi-bit binary...
number 4 and 5 please!
PROBLEM STATEMENT A logic circuit is needed to add multi-bit binary numbers. A 2-level circuit that would add two four-bit numbers would have 9 inputs and five outputs. Although a 2-level SOP or POS circuit theoretically would be very fast, it has numerous drawbacks that make it impractical. The design would be very complex in terms of the number of logic gates. The number of inputs for each gate would challenge target technologies. Testing would...
A full-adder is a combinational circuit (memory-less) that forms the arithmetic sum of two input bits...
A full-adder is a combinational circuit (memory-less) that forms the arithmetic sum of two input bits (say a and b) and a carry in (Cin, so three input bits total). The full-adder provides two outputs in the form of the (S)um and the carry out (Cout). The input bits a and b represent the terms to be added, but the full-adder needs to also consider the carry in bit, too. Construct a truth table for the Full-Adder Construct a K-Map...
Develop a VHDL modelfor a full adder. The adder has three inputs, A, B, Cinand two...
Develop a VHDL modelfor a full adder. The adder has three inputs, A, B, Cinand two outputs SUM and Cout. All inputs/outputs are of STD_LOGIC. Synthesis and simulate your design to verify it is functionally correct.Submit source code and self-checking testbench.
Design a Combinational circuit that forms that form the 2-bit binary Sum S1S2 of two 2-bit...
Design a Combinational circuit that forms that form the 2-bit binary Sum S1S2 of two 2-bit numbers X1X0 and Y1Y0 and can produce a carry ouput C. Design the entire circuit with the help of three half adder circuits implementing each of the three outputs with XOR-AND and OR gates
Use logism or any other circuit simulation program: A half adder is adequate for summing the...
Use
logism or any other circuit simulation program:
A half adder is adequate for summing the low-order bits of two multi-bit numbers, but it will not work for a bit in the middle of a number because it does not handle the carry into the position from the right. A full adder is needed. A full adder is built up from two half adders. The Sum output line is 1 if an odd number of the inputs A, B, and...
You are to design a circuit that calculates the Hamming distance between two 5-bit numbers. It...
You are to design a circuit that calculates the Hamming distance between two 5-bit numbers. It takes two 5-bit binary numbers A4 A3 A2 A1 A0 and B4 B3B 2B1 B0 as inputs and returns the number of bits that are different between the two numbers as the 3-bit binary output O2 O1 O0. For example: *If the two input numbers were 10111 and 00001 then the output would be 011 as there are 3 bits different between them. *If...
Can you please show the work!plzz
1. A 2-bit adder may be constructed by connection two full adders (i.e. 1-bit adders) or directly. For the latter, suppose the inputs (corresponding to the operands A and B) are A, Ao, B1 and Bo; and the outputs are So and S, for the 2-bit sum, S, and a carry-out, C . Give a truth table for the "direct" adder » From the truth table, derive a logic expression in sum-of-products form Give...
number 4 and 5 please!
PROBLEM STATEMENT A logic circuit is needed to add multi-bit binary numbers. A 2-level circuit that would add two four-bit numbers would have 9 inputs and five outputs. Although a 2-level SOP or POS circuit theoretically would be very fast, it has numerous drawbacks that make it impractical. The design would be very complex in terms of the number of logic gates. The number of inputs for each gate would challenge target technologies. Testing would...
Use
logism or any other circuit simulation program:
A half adder is adequate for summing the low-order bits of two multi-bit numbers, but it will not work for a bit in the middle of a number because it does not handle the carry into the position from the right. A full adder is needed. A full adder is built up from two half adders. The Sum output line is 1 if an odd number of the inputs A, B, and...
