a full-adder circuit is used to add 2 bits A and B and the carry (Cin)...

a full-adder circuit is used to add 2 bits A and B and the carry (Cin) that resulted from the addition of the previous 2 bits. It then produces a SUM S and a carry out (Cout) that would be added to the more significant bits. Generate a truth table that has inputs A, B and Cin and the 2 outputs S and Cout. Find the logical function from the truth table and simplify it, if possible. Implement the function using logic gates.

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

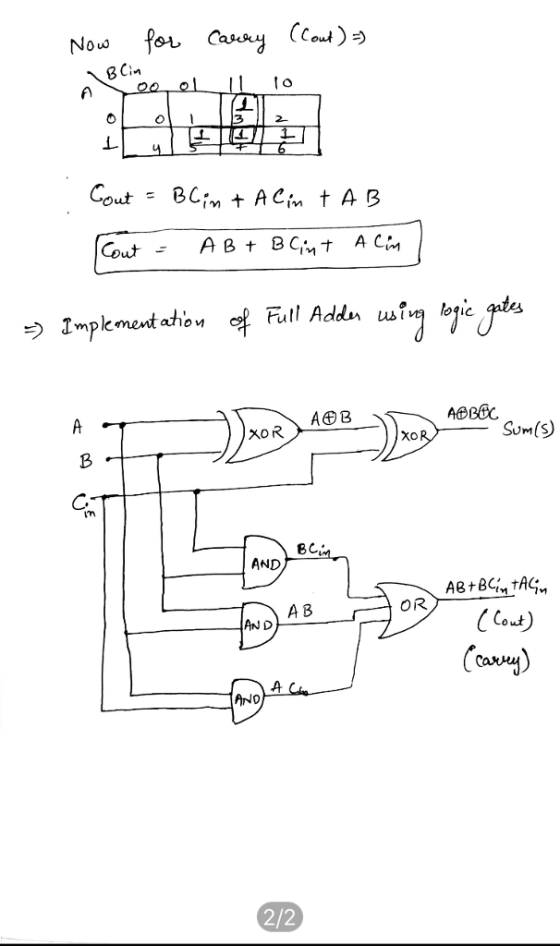

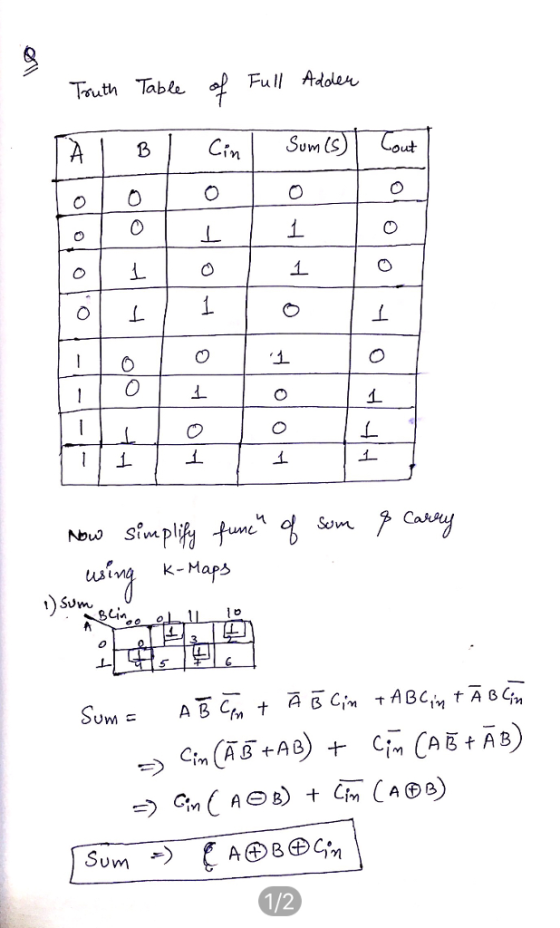

Full A dolor Touth Table UW ut Um 1/2

0 0
