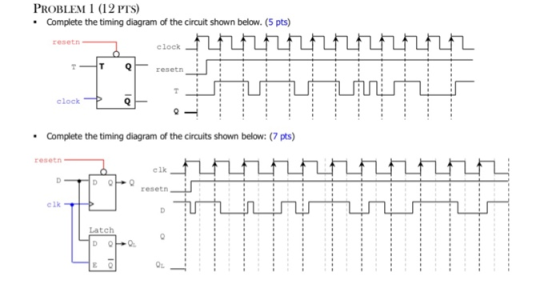

PROBLEM 1 (12 PTS) Complete the timing diagram of the circuit shown below. (5 pts) resetn...
PROBLEM 2 (83 PTS) Complete the timing diagram of the circuit shown below: (10 pts) Full Adder clk resetn cin cout Cout clk resetn cout I Complete the timing diagram of the circuit shown below: (7 pts) resetn clk resetn clk

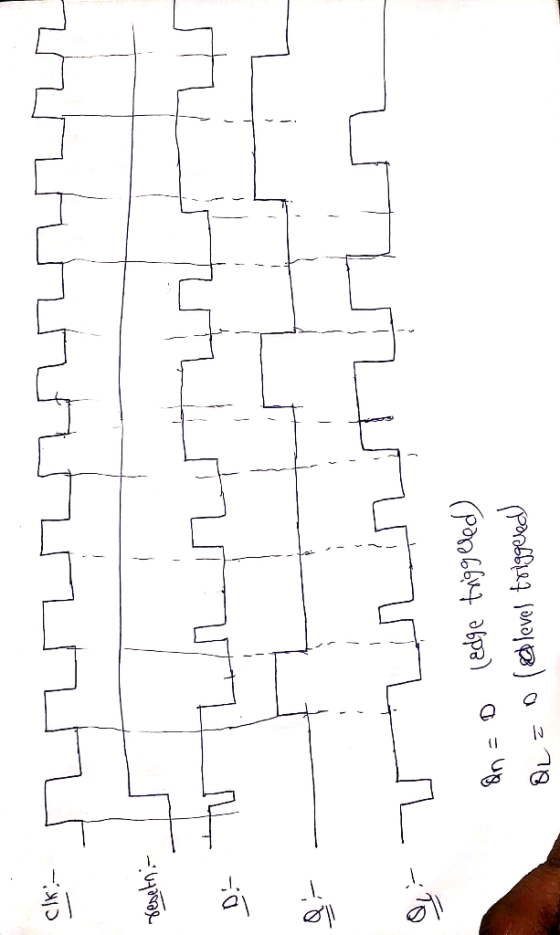

Complete the timing diagram of the following circuit. G = G-G2G,Go-1011, Q Q3QaQ1Qo resetn clk clk resetn Q 0000 | ﹁ ㄒㄧ | ﹁ ㄒㄧ | ㄒㄧ | ㄒㄧ |-

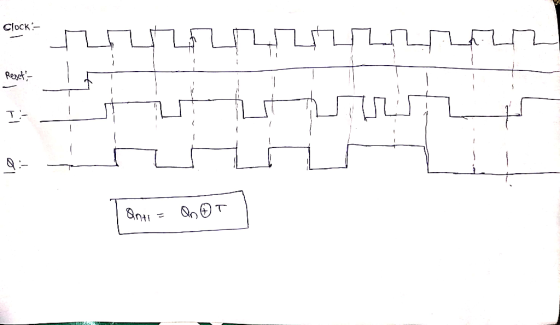

Complete the timing diagram for output Q for the TFF shown below. Note, the reset is active low. D reset clock clock clock 444444mzmzmy| reset
.For the following circuit, do: RR3R2R, Ro G G3G2G,Go Write structural VHDL code. Create two files: i) flip flop, ii) top file (where you will interconnect the flip flops and the logic gates). Provide a printout. (10 pts) Write a VHDL testbench according to the timing diagram shown below. Complete the timing diagram by simulating your circuit (Behavioral Simulation). The clock frequency must be 100 MHz with 50% duty cycle. Provide a printout. (15 pts) Ro R1 R2 Ro resetn...
Complete the timing diagram of Fig. P4.14b by drawing the
waveforms of signals
4.14 The circuit of Fig. P4.14a contains a D latch, a positive-edge-triggered D flip-flop, and a negative-edge-triggered D flip-flop. Complete the timing diagram of Fig. P4.14b by drawing the waveforms of signals,, and y FI D O Clack Clock Figure P4.14: a. Logic diagram. B. Timing diagram.
(b) Using a timing diagram showing the clk, Q1 and D2 signals, explain the following timing constraints for the circuit shown in Figure 2.1 cqtcd 2 old where tod is the contamination delay of the combinational logic 7 marks reg2 reg1 Combinational D2 logic clk. clk Figure 2.1 (c) In the circuit shown in Figure 2.2, the flip-flops have a clock-to-Q contamination delay of 30 ps and a propagation delay of 80 ps. They have a setup time of 50...
(20 pts.) For the following circuit, the timing characteristics of the components are summarized below. .Flip-flop: clock-to-Q maximum delay tpcq 40ps, clock-to-Q minimum delay tec 30ps, setup time tsetup 50ps, hold time thold 60ps Logic gate (each AND, OR, Inverter): propagation delay tpd 35ps, contamination delay ted25ps. FFl Fr3 CLK OUT FF2 CLK Suppose that there is no clock skew. What is the maximum clock frequency of this a. circuit? b. How much clock skew can the circuit tolerate before...
please answer all thanks very much!
Question 3 Shown below is a schematic diagram of a counter made up of three JK flip-flops. (d) Shown below is a master-slave D flip-flop. This is made using two gated D latches. The truth table for a gated D latch is also shown below. HIGH J J CLK ас ас ac Truth table: gated D latch D EN D D, Q. D, 0. 0 0 go CLK ΕΝΟ ENO: 0 0 1 0...
5) Complete the timing diagram for the circuit with one positive-edge and one negative-edge triggered D FF. Q1 and Q0 start a low (0) because CLRn starts low. CLk K - 1 cun Q ई 6) For each set of waveforms, create a D, T or J/K waveform that will generate the desired Q output. Assume Q starts low. There are several right answers for the J and K inputs. To prevent flip-flop instability, all changes to the D, T...
b) For the circuit below, draw the timing diagram for outputs X and Y for the CLK signal shown below. Note that the flip-flops are negative-edge-triggered. Ignore the propagation delays. Assume X=Y=0 at the start. (6 Points) LO 7x CLK CLK d oo Loy CLK
