PROBLEM 2 (83 PTS) Complete the timing diagram of the circuit shown below: (10 pts) Full...

Question

Question

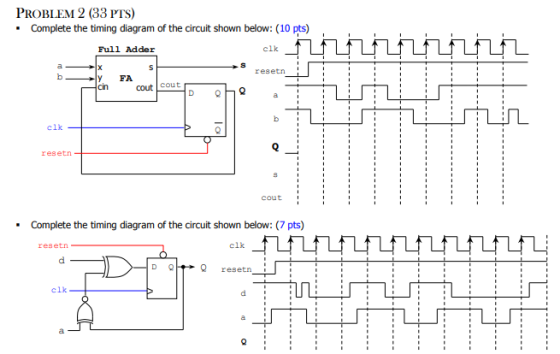

PROBLEM 2 (83 PTS) Complete the timing diagram of the circuit shown below: (10 pts) Full Adder clk resetn cin cout Cout clk r

engineering Computer-Science

Answer 1

Answer #1

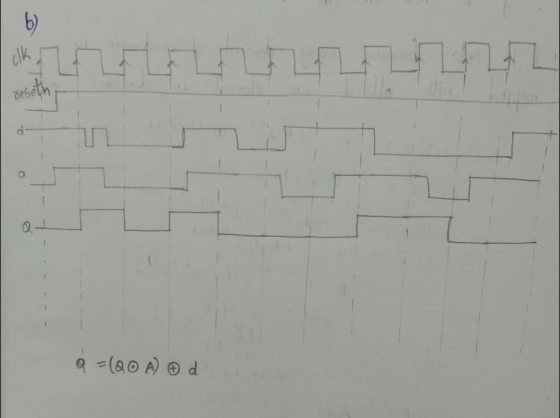

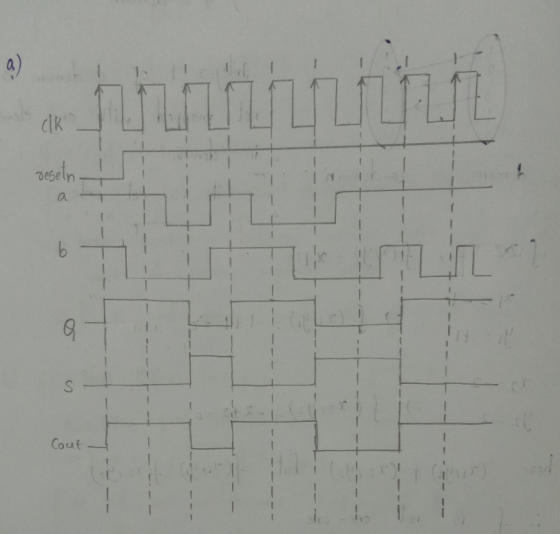

clk Cout- dk O. 0

Answer 2
