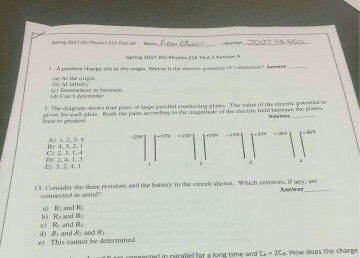

change sis at the where shown, which eetsider resi ion and the bwuten in the RI...
R1 fR2) fC1) For the circuit shown below: In terms of Vo, RI, R2 CI, t, and s what is the time domain equation for V at node l? In terms of Vo, RI,R2, C1,t, and s what is the s-domain equation for V at node 1? In terms of Vo, R1, R2, C1, t, and s what is the equation for τ? If the voltage at time-0 is 7 V R 1-1 kQ, R2-1 kΩ and C 1-3 μF...
Problems 12 and 13 are related. In the circuit shown to the right, the sum of the resistances of resistors R, and R, IS 16 Ohms. 4Ω R, 12) What is the current in the right branch of the circuit? A. 0.25 A B. 0.50 A C. 1.00 A D. 2.00 A R2 13) why? Resistor R, and the 4-Ohm resistor are now swapped. How does the current through the battery change, and A. The current does not change, because...
Adding acetate ion produces a change in the color of the indicator. Watch Video-le where a drop of methyl orange is added to each of two 3-mL samples of 0.1 M CH3COOH (acetic acid). The 1 M Na CH3COO (sodium acetate) is added a few drops at a time (with mixing) to one of the samples. The effect on the dissociation of acetic acid that is produced by adding sodium acetate is called the common ion effect. Specify the color...
30.69 CP In the circuit shown Figure P30.69 in Fig. P30.69, 60.0 V, RI-40.0 Ω, R2-25.0 Ω, and L 0.300 H. Switch S is closed at t 0. Just after the switch is S closed, (a) what is the potential difference vab across the resistor Ri; (b) which point, a or b, is at a gher potential; (c) what is the potential difference ved across the inductor L; (d) which point, c or d, is at a higher potential? The...
2) Shown below is a c R2 = 7 Ω, R3 = 24 Ω, R4 = 10 ircuit with two switches. Si and S2M = 15 V, V.-5 V, V,-20 V, Rı = 15 Ω . 25s2 C,200F v -,,I -R, Г 2:0 start atp sition A. This creates two dependent circuits. The left circuit with only resistors '5 V-15A)(T)-YAG).2ov-ocharges the capacitor C, through resistor Rs with battery Vs(the capacitor is initially The switch 1 will start in the on/closed...
pts.) Consider a long resistance wire of radius ri-1.5 cm and thermal conductivity m'к in which heat is generated uniformly as a result of resistance heating at a e wire is embedded in a 1.0-cm-thick layer of ceramic whose thermal bTeam. W/m K. If the outer surface temperature of the ceramic layer is nstant rate. The nductivity is keramic-1.5 to be T,-45°C and the maximum temperature at the center is 375°C. Determine the ar generated per unit volume in (W/em)...
For the circuit shown below In terms of Vo. RI. R2, R3. R4 Cİ.t and s what is the time domain equation for the voltage at node out? Preview In terms of Vo, R1, R2, R3 R4, C1,t, and s what is the frequency domain equation the voltage at node out? Preview In terms of Vo. R1. R2. R3. R4. Cl.t. and s what is the equation for t? Preview Ifthe voltage vi at tune-0 is 3 V RI"? kQ....
in
the circuit shown below, the emf of the batteries are E1=42 volts,
E2= 25 volts, E3=33volts and the resistors have a value of R1= 34
R2=36. initially switch s is open. After the switch is closed, how
much does the current change in resistor R1. Anwer to the nearest
milliamp. If the current increases after the switch is closed imput
answer as positive. if i decreases input answer as negative.
U Question 2 2 pts In the circuit shown...
ON CAPAC Transient RL Circuit Consider the circuit shown in the figure. The resistance of the wire used to make the inductor is negligible compared to the resistors in the circuit. V-140 V, R; -10.Ohms, Ry - 1100 Ohms, and L-200 H RI WWW For this part, assume that switch S has been closed for a long time so that steady currents exist in the circuit. Find (1) the battery current, (2) the current in resistor Ry, and (3) the...
Longer Questions LITTLE OR NO CREDIT MAY BE EARNED FOR ANSWERS THAT DO NOT SHOW HOW YOU GOT THEM. Be sure to show your work. I will try to give you partial credit for correct steps if I can follow your logic. 16. (8 points) Consider a circuit containing a battery of voltage E, a switch S, resistors of resistances Ri and Rs, and an inductor with inductance L, as shown below. The switch has been closed for a very...
