A transmission line connects a transmitter of 1.2 MHz to the antenna located 50 m away...

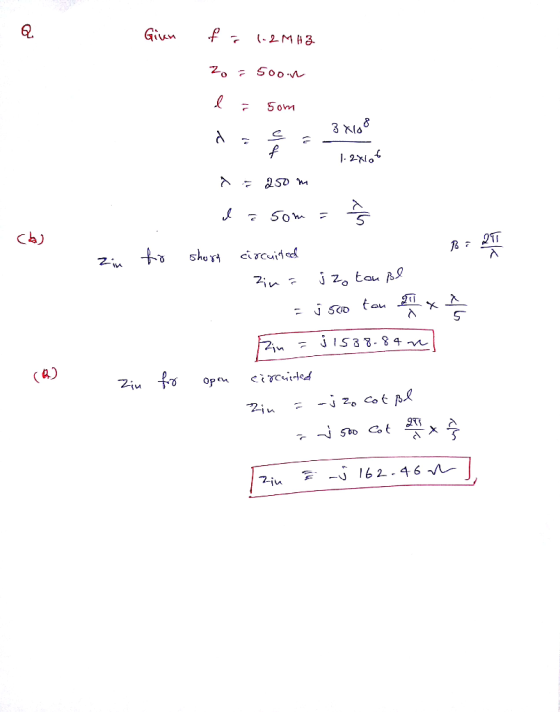

A transmission line connects a transmitter of 1.2 MHz to the antenna located 50 m away from it. If ?? of the line equals 500 Ω, what is the input impedance of this line if antenna end: a) Open circuited b) Short circuited
Homework Answers
Add Answer to:
A transmission line connects a transmitter of 1.2 MHz to the
antenna located 50 m away...
