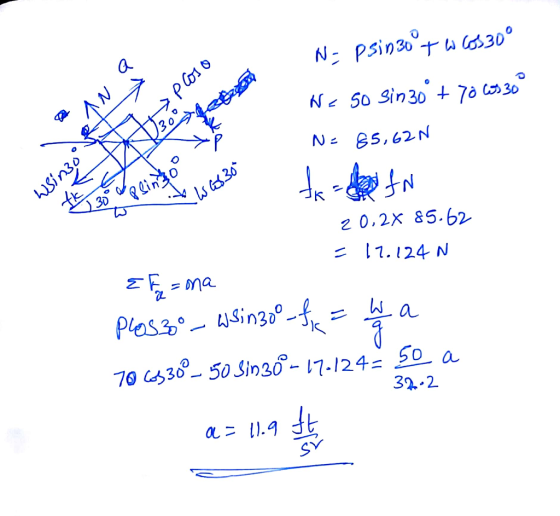

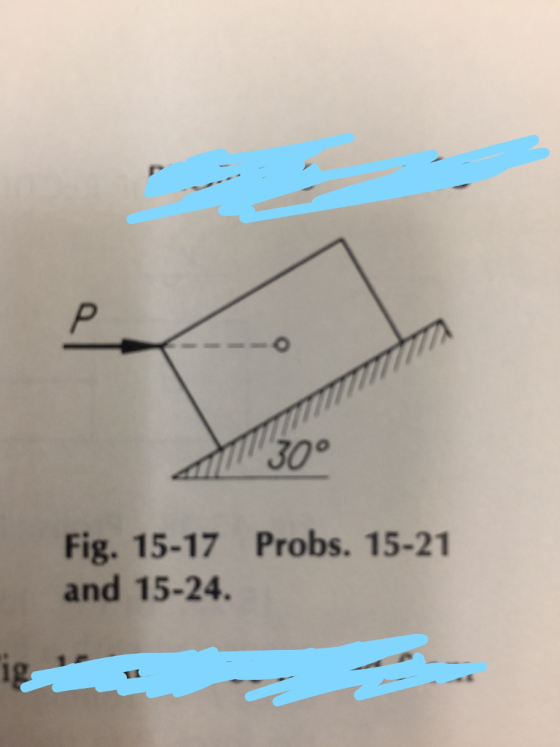

the body shown in fig 15-17 weighs 50 lb. if p is 70lb and f is 0.2, what acceleration will be given to the body?
Please show me each step and be as simple and clear as possible thank you
Homework Answers
Draw a Cylinder A weighs 50 lb and B weighs 30 1b Fig. P 3-3 Also,...
Draw a Cylinder A weighs 50 lb and B weighs 30 1b Fig. P 3-3 Also, find the reeceians at the wals
The billboard sign shown weighs 4000 lb and is supported on a 15" circular hollow steel...
The billboard sign shown weighs 4000 lb and is supported on a 15" circular hollow steel tube with 3/8" thickness. The sign will be built in west Mobile and is subjected to wind forces with maximum wind speed of 160 mph. The hollow steel tube has a maximum compressive/tensile strength of 50 Ksi and a maximum shear strength of 10 Ksi. Determine if the hollow steel tube has enough axial and shear strength to support loads applied to the sign....
i want just (F) 2. (40 points) In the engine mechanism shown in fig. 2, the...
i want just (F)
2. (40 points) In the engine mechanism shown in fig. 2, the crank AB has a constant clockwise angular velocity of 2000 rpm.And the connecting rod is a uniform, slender rod whose center of mass is in its geometric center G. For the crank position shown determine l 8 in 3in Figure 2: Problem 2 (a) (2.5 points) The velocity of B (b) (5 points) The angular velocity of the connecting rod BD, and the velocity...
Please solve the problem, thank you F = 15 t lb- The spheres weigh 25 lb...
Please solve the problem, thank you
F = 15 t lb- The spheres weigh 25 lb each 3 ft M = 7t2 + 9 t lb-ft F = 15 t Ib The system above starts from rest and rotates about O. The system is subject to a moment and forces as shown. Note that both the moment and forces depend on time, t. Determine the speed of the spheres at t=5 seconds. (Show all work.)
Please show me all calculations, thank you 2. Point "P" as shown in Figure 2 represents...
Please show me all calculations, thank you
2. Point "P" as shown in Figure 2 represents the end-effector position of a Robot Manipulator. The point P is to be translated through (0.5, 0.6, 0.4), followed by rotations of 10 degrees about the x axis, 15 degrees about the y-axis, and 15 degrees about the z-axis. Find the transformation matrix for the concatenated transformation and co-ordinates of the final position of the point? Fig. 2 Original position P [1 1 2...
I'm having trouble with b and e 46. Use the portion of the contour diagram of f(x,) shown below to estimate the following: 80 78 76 74 72 113 6 9 12 15 18 21 24 (b) f (15,76) in the direct...
I'm having trouble with b and e
46. Use the portion of the contour diagram of f(x,) shown below to estimate the following: 80 78 76 74 72 113 6 9 12 15 18 21 24 (b) f (15,76) in the direction -i+j (d) vf di where C is the path from (15,76) to (24,76) (a) gradf (15, 78) (c) A critical point of f(x, y). (e) f(x,y)dA where R is the rectangle 9Sxs 15, 76 3 y s 80...
step by step explanation please Working from first principles show that the gyroscopic torque Ta generated by a body of polar moment of inertia I spinning about one axis at an angular velocity an...
step by step explanation please
Working from first principles show that the gyroscopic torque Ta generated by a body of polar moment of inertia I spinning about one axis at an angular velocity an whilst precessing at a about a perpendicular axis is lo Clearly indicate the direction of [10 marks] A submerged submarine is travelling at 36 kmh in a circular path of unknown radius R as shown in Fig. Q2a. A transversely mounted single-rotor gyroscope is carried onboard....
Please write in the answer clear. Will leave like if its correct . Age Gen Sibs Work Exercise Units Mom 18 M 1 20 10 15 6 17 F 3 0 7 15 14 23 M...
Please write in the answer clear. Will leave like if its
correct
.
Age
Gen
Sibs
Work
Exercise
Units
Mom
18
M
1
20
10
15
6
17
F
3
0
7
15
14
23
M
3
20
5
13
8
20
M
2
0
5
15
16
18
F
4
22
6
16
9
20
F
2
11
7
20
20
34
F
1
48
10
10
18
22
F
3
37
13
13
18
19
M
3
0...
please solve 17 for me thanks~~ :) ! temperature f(x) °C, where 5. f(x) = sin 0.1 x 6 f(x) = 4 - 08 |x - 5 7. fix) =x(1...
please solve 17 for me thanks~~ :) !
temperature f(x) °C, where 5. f(x) = sin 0.1 x 6 f(x) = 4 - 08 |x - 5 7. fix) =x(10 - x) 8 Arbitrarytemperatures at ends. If the ends x = 0 and x= Lof the bar in the text are kept at constant 20. CAS PROJECT. Isotherms. Fim solutions (tempe rature s) in the squa with a 2 satisfying the followin tions. Graph isotherms. (a) u80 sin Tx on...
Please answer all questions, and I will rate you well! Thanks :) 2. 12/18 points | Previous Answers SCalcET8 6.4.013.MI My Note A heavy rope, 60 ft long, weighs 0.5 lb/ft and hangs over the edge of a...
Please answer all questions,
and I will rate you well! Thanks :)
2. 12/18 points | Previous Answers SCalcET8 6.4.013.MI My Note A heavy rope, 60 ft long, weighs 0.5 lb/ft and hangs over the edge of a building 150 ft high. (Let x be the distance in feet below the top of the building. Enter xas x,.) (a) How much work W is done in pulling the rope to the top of the building? Show how to approximate the...
Draw a Cylinder A weighs 50 lb and B weighs 30 1b Fig. P 3-3 Also, find the reeceians at the wals
The billboard sign shown weighs 4000 lb and is supported on a 15" circular hollow steel tube with 3/8" thickness. The sign will be built in west Mobile and is subjected to wind forces with maximum wind speed of 160 mph. The hollow steel tube has a maximum compressive/tensile strength of 50 Ksi and a maximum shear strength of 10 Ksi. Determine if the hollow steel tube has enough axial and shear strength to support loads applied to the sign....
i want just (F)
2. (40 points) In the engine mechanism shown in fig. 2, the crank AB has a constant clockwise angular velocity of 2000 rpm.And the connecting rod is a uniform, slender rod whose center of mass is in its geometric center G. For the crank position shown determine l 8 in 3in Figure 2: Problem 2 (a) (2.5 points) The velocity of B (b) (5 points) The angular velocity of the connecting rod BD, and the velocity...
Please solve the problem, thank you
F = 15 t lb- The spheres weigh 25 lb each 3 ft M = 7t2 + 9 t lb-ft F = 15 t Ib The system above starts from rest and rotates about O. The system is subject to a moment and forces as shown. Note that both the moment and forces depend on time, t. Determine the speed of the spheres at t=5 seconds. (Show all work.)
Please show me all calculations, thank you
2. Point "P" as shown in Figure 2 represents the end-effector position of a Robot Manipulator. The point P is to be translated through (0.5, 0.6, 0.4), followed by rotations of 10 degrees about the x axis, 15 degrees about the y-axis, and 15 degrees about the z-axis. Find the transformation matrix for the concatenated transformation and co-ordinates of the final position of the point? Fig. 2 Original position P [1 1 2...
I'm having trouble with b and e
46. Use the portion of the contour diagram of f(x,) shown below to estimate the following: 80 78 76 74 72 113 6 9 12 15 18 21 24 (b) f (15,76) in the direction -i+j (d) vf di where C is the path from (15,76) to (24,76) (a) gradf (15, 78) (c) A critical point of f(x, y). (e) f(x,y)dA where R is the rectangle 9Sxs 15, 76 3 y s 80...
step by step explanation please
Working from first principles show that the gyroscopic torque Ta generated by a body of polar moment of inertia I spinning about one axis at an angular velocity an whilst precessing at a about a perpendicular axis is lo Clearly indicate the direction of [10 marks] A submerged submarine is travelling at 36 kmh in a circular path of unknown radius R as shown in Fig. Q2a. A transversely mounted single-rotor gyroscope is carried onboard....
Please write in the answer clear. Will leave like if its
correct
.
Age
Gen
Sibs
Work
Exercise
Units
Mom
18
M
1
20
10
15
6
17
F
3
0
7
15
14
23
M
3
20
5
13
8
20
M
2
0
5
15
16
18
F
4
22
6
16
9
20
F
2
11
7
20
20
34
F
1
48
10
10
18
22
F
3
37
13
13
18
19
M
3
0...
please solve 17 for me thanks~~ :) !
temperature f(x) °C, where 5. f(x) = sin 0.1 x 6 f(x) = 4 - 08 |x - 5 7. fix) =x(10 - x) 8 Arbitrarytemperatures at ends. If the ends x = 0 and x= Lof the bar in the text are kept at constant 20. CAS PROJECT. Isotherms. Fim solutions (tempe rature s) in the squa with a 2 satisfying the followin tions. Graph isotherms. (a) u80 sin Tx on...
Please answer all questions,
and I will rate you well! Thanks :)
2. 12/18 points | Previous Answers SCalcET8 6.4.013.MI My Note A heavy rope, 60 ft long, weighs 0.5 lb/ft and hangs over the edge of a building 150 ft high. (Let x be the distance in feet below the top of the building. Enter xas x,.) (a) How much work W is done in pulling the rope to the top of the building? Show how to approximate the...
