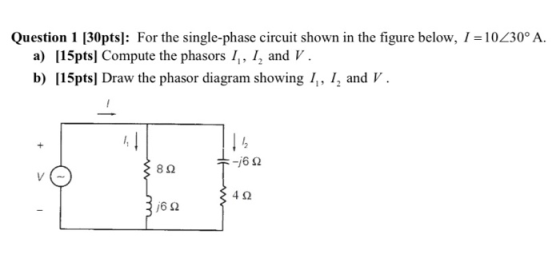

![Question 1 [30pts]: For the single-phase circuit shown in the figure below, I = 10230° A. a) [15pts] Compute the phasors I, I](http://img.homeworklib.com/questions/dcefe9f0-f704-11eb-9d22-295ff20ae8da.png?x-oss-process=image/resize,w_560)

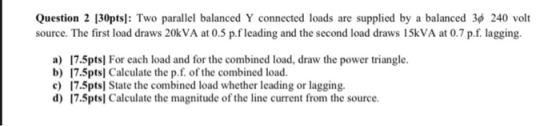

![Question 2 [30pts]: Two parallel balanced Y connected loads are supplied by a balanced 36 240 volt source. The first load dra](http://img.homeworklib.com/questions/dd6ecfb0-f704-11eb-b6e8-517e0f7c99ad.png?x-oss-process=image/resize,w_560)

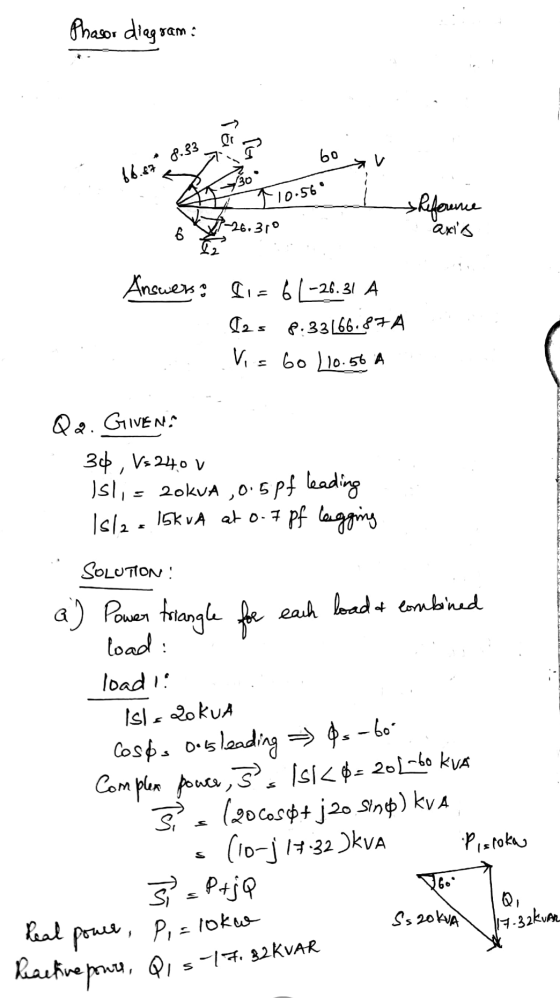

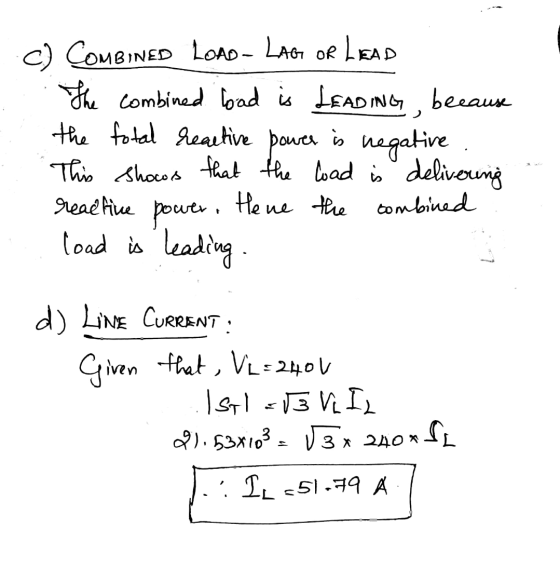

Homework Answers
(Hai I have explained the
solution step by step for your better understanding. Hope it helps.
If you find my answer suitable kindly give a thumbs up.Good day to
you. )
Add Answer to:
Question 1 [30pts]: For the single-phase circuit shown in the figure below, I = 10230° A....
1, Two balanced three-phase loads are in parallel. Load 1 draws 10 kW at 0.8 PF...
1, Two balanced three-phase loads are in parallel. Load 1 draws 10 kW at 0.8 PF lagging Load 2 draws 20 kVA at 0.6 PF leading a. b. The loads are supplied by a balanced three-phase 480 Vu source. (a) Draw the power triangle for the combined load. (b) Determine PF of the combined load. (c) Determine the magnitude of the line current from the source. (d) Y-connected inductors are now installed in parallel with the combined load. What value...
(4) Three single-phase AC loads draw power from the same 12020으 kms source. Load 1 draws...
(4) Three single-phase AC loads draw power from the same 12020으 kms source. Load 1 draws 120 w at a lagging PF of 0.75, Load 2 draws 75 VA at a leading PF of 0.6 and Load 3 draws 100 VA at a leading PF of 0.8. Determine the complex power consumed by each load. Calculate the rms current phasor for each load. a. b.
1. A 480 V (rms) source supplies power to two loads connected in parallel. The first...
1. A 480 V (rms) source supplies power to two loads connected in parallel. The first load draws 80 kW and 30 kVAR. The second load draws 100 kVA at a power factor of 0.6 lagging. a) Draw the power triangle for the first load and determine its power factor; b) Determine the current (both magnitude and phase, using the source voltage as the phase reference) drawn by the first load; c) Draw the power triangle for the second load...
3- Two balanced Y-connected loads in parallel, one drawing 25 kW at 0.6 power factor lagging...
3- Two balanced Y-connected loads in parallel, one drawing 25 kW at 0.6 power factor lagging and the other drawing 15 kVA at 0.8 power factor leading, are supplied by a balanced, three-phase, 480-volt source. (a) Draw the power triangle for each load and for the combined load. (b) Determine the power factor of the combined load and state whether lagging or leading. (c) Determine the magnitude of the line current from the source. (d) ∆- connected capacitors are now...
Good day all. I am facing the following problem and would like to seek some kind...
Good day all.
I am facing the following problem and would like to seek some
kind help, please.
Sincerely appreciate all help and input.
- Ms Tan
1. An 10 MVA, 33 kV, 34 pole, 60 Hz, three-phase wye-connected synchronous generator has a synchronous reactance of 10 and a negligible armature resistance. a. Find the synchronous speed of this generator. b. At a certain excitation, the generator delivers 50% of rated load at 0.7 leading power factor at '33' kV....
Electrical Engineering Question 2. Three loads are connected in parallel across a source as shown. Load...
Electrical Engineering Question
2. Three loads are connected in parallel across a source as shown. Load 1 absorbs 7 kW and 8 KVAR. Load 2 absorbs 10 KVA at a lagging p.f. of 0.6. Load 3 absorbs 10 kW at a leading p.f. of 0.5. a) Find the total complex power absorbed by the three loads. 10.12 b) If V. = 12020° Vrms, find V, in polar form.
1SL 1. (30%). A single-phase source is applied to a two terminal passive circuit with equivalent...
1SL 1. (30%). A single-phase source is applied to a two terminal passive circuit with equivalent impedance Z = 12/6: measured from the terminals. The reactive power delivered by the source is Q=-32/v2 Mvar and the power factor is p.f.=1/V2 leading, the source current is i(t) = 4v2 cos (120-t) kA. (a) Determine the complex power and the apparent power delivered by the source (b) Draw the power triangle. A (e) Determine the load impedance Z = 2/6, bel/bz 20
Problem 3: (20 points) ase serves two balanced parallel loads. The line- A three-phase transmission line...
Problem 3: (20 points) ase serves two balanced parallel loads. The line- A three-phase transmission line with an impedance (0.2 +j1.0) 12/phase serves two balan to-line voltage at the load end of the line is 480 V (rms). Load 1: Wye-connected and absorbs a total of 200 kW with a lagging p.f. of 0.87. Load 2: Delta-connected with an impedance of (20+30) 2/phase. a. Draw the single phase representation of the circuit b. How much current flows through phase A...
In the circuit below, R = 4Ω4Ω, the load draws 14.9kVA14.9kVA at a PF=0.56PF=0.56 lagging. If...
In the circuit below, R = 4Ω4Ω, the load draws 14.9kVA14.9kVA at
a PF=0.56PF=0.56 lagging. If |ILoad|=20|ILoad|=20 ARMSARMS, what
must the value of C be to cause the source to operate at a
PF=0.95PF=0.95 lagging if the source operates at 6060 Hz.
Please keep 4 after decimal for each calculation
(1 point) Problem 4 In the circuit below, R = 422, the load draws 14.9kV A at a PF = 0.56 lagging. If I Load| = 20 ARMS, what must...
508 CHAPTER 11 . POLYPHASE CIRCUITS 11.40 In a balanced three-phase system, the source has an...
508 CHAPTER 11 . POLYPHASE CIRCUITS 11.40 In a balanced three-phase system, the source has an aboc phase-sequence and is connected in delta. There are two rallel wye-connected loads. The phase impedance of load i and load 2 is 4 The line impedance connecting the source to the loads is 0.3 + j0.2 2. If the curre IAN! = 10/20-Arms, find the delta currents in the source 4 Ω and 10 +/4 Ω, respectively. nt in the a phase of...
1, Two balanced three-phase loads are in parallel. Load 1 draws 10 kW at 0.8 PF lagging Load 2 draws 20 kVA at 0.6 PF leading a. b. The loads are supplied by a balanced three-phase 480 Vu source. (a) Draw the power triangle for the combined load. (b) Determine PF of the combined load. (c) Determine the magnitude of the line current from the source. (d) Y-connected inductors are now installed in parallel with the combined load. What value...
(4) Three single-phase AC loads draw power from the same 12020으 kms source. Load 1 draws 120 w at a lagging PF of 0.75, Load 2 draws 75 VA at a leading PF of 0.6 and Load 3 draws 100 VA at a leading PF of 0.8. Determine the complex power consumed by each load. Calculate the rms current phasor for each load. a. b.
1. A 480 V (rms) source supplies power to two loads connected in parallel. The first load draws 80 kW and 30 kVAR. The second load draws 100 kVA at a power factor of 0.6 lagging. a) Draw the power triangle for the first load and determine its power factor; b) Determine the current (both magnitude and phase, using the source voltage as the phase reference) drawn by the first load; c) Draw the power triangle for the second load...
Good day all.
I am facing the following problem and would like to seek some
kind help, please.
Sincerely appreciate all help and input.
- Ms Tan
1. An 10 MVA, 33 kV, 34 pole, 60 Hz, three-phase wye-connected synchronous generator has a synchronous reactance of 10 and a negligible armature resistance. a. Find the synchronous speed of this generator. b. At a certain excitation, the generator delivers 50% of rated load at 0.7 leading power factor at '33' kV....
Electrical Engineering Question
2. Three loads are connected in parallel across a source as shown. Load 1 absorbs 7 kW and 8 KVAR. Load 2 absorbs 10 KVA at a lagging p.f. of 0.6. Load 3 absorbs 10 kW at a leading p.f. of 0.5. a) Find the total complex power absorbed by the three loads. 10.12 b) If V. = 12020° Vrms, find V, in polar form.
1SL 1. (30%). A single-phase source is applied to a two terminal passive circuit with equivalent impedance Z = 12/6: measured from the terminals. The reactive power delivered by the source is Q=-32/v2 Mvar and the power factor is p.f.=1/V2 leading, the source current is i(t) = 4v2 cos (120-t) kA. (a) Determine the complex power and the apparent power delivered by the source (b) Draw the power triangle. A (e) Determine the load impedance Z = 2/6, bel/bz 20
Problem 3: (20 points) ase serves two balanced parallel loads. The line- A three-phase transmission line with an impedance (0.2 +j1.0) 12/phase serves two balan to-line voltage at the load end of the line is 480 V (rms). Load 1: Wye-connected and absorbs a total of 200 kW with a lagging p.f. of 0.87. Load 2: Delta-connected with an impedance of (20+30) 2/phase. a. Draw the single phase representation of the circuit b. How much current flows through phase A...
In the circuit below, R = 4Ω4Ω, the load draws 14.9kVA14.9kVA at
a PF=0.56PF=0.56 lagging. If |ILoad|=20|ILoad|=20 ARMSARMS, what
must the value of C be to cause the source to operate at a
PF=0.95PF=0.95 lagging if the source operates at 6060 Hz.
Please keep 4 after decimal for each calculation
(1 point) Problem 4 In the circuit below, R = 422, the load draws 14.9kV A at a PF = 0.56 lagging. If I Load| = 20 ARMS, what must...
508 CHAPTER 11 . POLYPHASE CIRCUITS 11.40 In a balanced three-phase system, the source has an aboc phase-sequence and is connected in delta. There are two rallel wye-connected loads. The phase impedance of load i and load 2 is 4 The line impedance connecting the source to the loads is 0.3 + j0.2 2. If the curre IAN! = 10/20-Arms, find the delta currents in the source 4 Ω and 10 +/4 Ω, respectively. nt in the a phase of...
