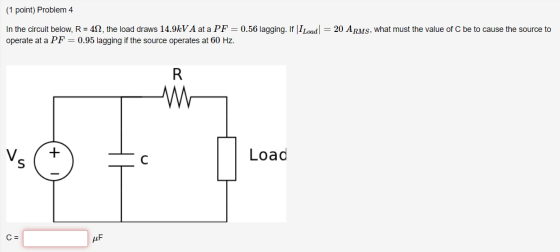

In the circuit below, R = 4Ω4Ω, the load draws 14.9kVA14.9kVA at a PF=0.56PF=0.56 lagging. If |ILoad|=20|ILoad|=20 ARMSARMS, what must the value of C be to cause the source to operate at a PF=0.95PF=0.95 lagging if the source operates at 6060 Hz.
Please keep 4 after decimal for each calculation

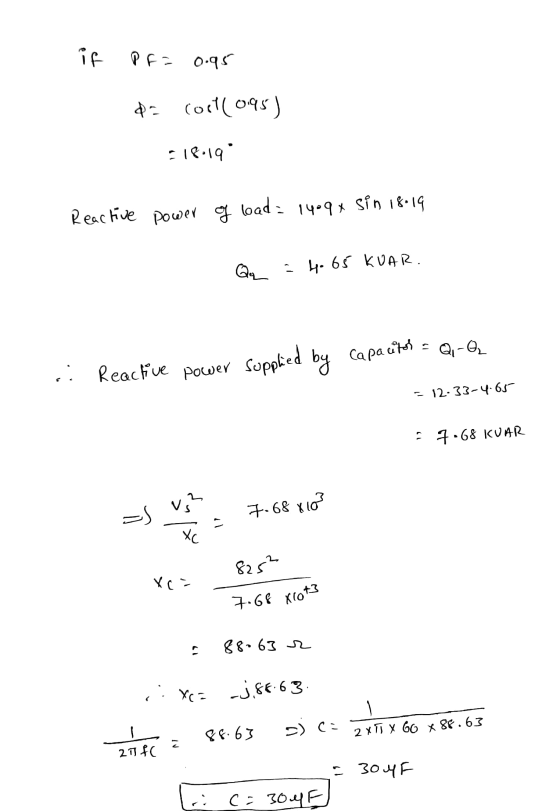

Homework Answers

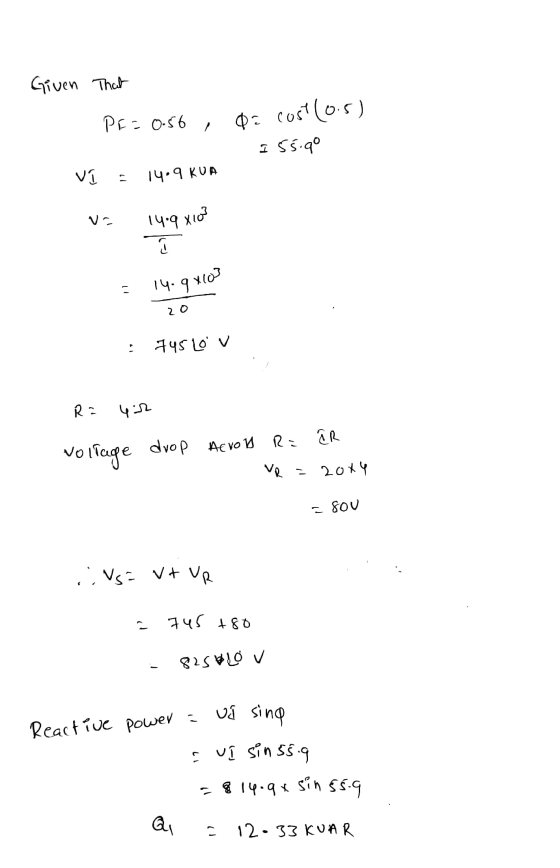

![Given That Pr=0.56 cost (0.5) I55.9° vi - 14.9 RUA V 1409 XIO ra 14.9410] 20 745 Lov RE ar Noltage drop Acroll = VR - 2004 a](http://img.homeworklib.com/questions/dd4841e0-183c-11ec-a478-557b8bdf147e.png?x-oss-process=image/resize,w_560)
