Homework Answers
Add Answer to:

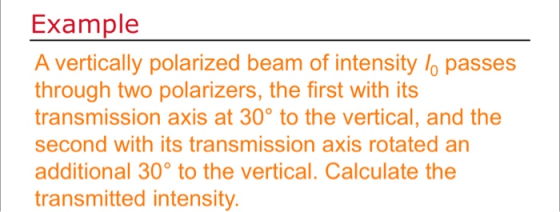

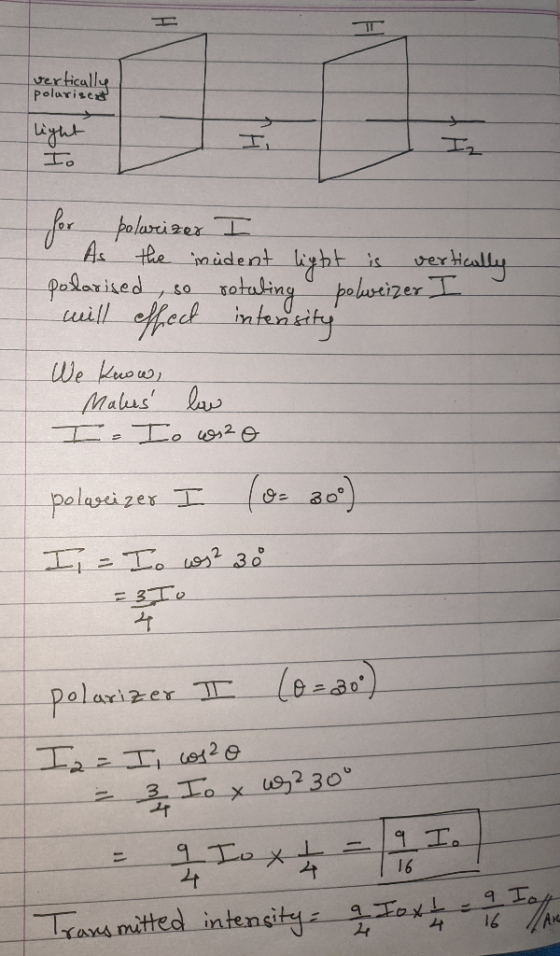

Example A vertically polarized beam of intensity lo passes through two polarizers, the first with its...
Calculate the transmitted intensity when a vertically polarized beam of intensity I0 passes through a polarizer...
Calculate the transmitted intensity when a vertically polarized beam of intensity I0 passes through a polarizer with its transmission axis at 30◦ to the vertical and a second polarizer with its transmission axis at 60◦ to the vertical.
Un-polarized light passes through two polarizers; the axis of one is vertical and that of the...
Un-polarized light passes through two polarizers; the axis of one is vertical and that of the other is at 60 degree to the vertical. Calculate the intensity of the transmitted light, I_t in terms of the intensity of the initial un-polarized light, I_0. What happens to the intensity of the transmitted light if a third polarizer, with axis at 45 degree to the second polarizer above, is placed?
A) A 70 mW laser beam is polarized horizontally. It then passes through two polarizers. The...
A) A 70 mW laser beam is polarized horizontally. It then passes through two polarizers. The axis of the first polarizer is oriented at 30∘ from the horizontal, and that of the second is oriented at 60∘ from the horizontal. What is the power of the transmitted beam? Express your answer with the appropriate units
"A 50 mW laser beam is polarized horizontally. It then passes through two polarizers. The axis...
"A 50 mW laser beam is polarized horizontally. It then passes through two polarizers. The axis of the first polarizer is oriented at 30° from the horizontal, and that of the second is oriented at 60° from the horizontal. What is the power of the transmitted beam?" -Thank you in advance for your help
GOAL Understand how polarizing materials affect light intensity. Unpolarized light is incident upon three polarizers. The...
GOAL Understand how polarizing materials affect light intensity. Unpolarized light is incident upon three polarizers. The first polarizer has a vertical transmission axis, the second has a transmission axis rotated 30.0 degree with respect to the first, and the third has a transmission axis rotated 75.0 degree relative to the first. If the initial light intensity of the beam is I_b, calculate the light intensity after the beam passes through the second polarizer and the third polarizer. After the beam...
Vertically polarized light with an intensity of 0.70 W/m2 passes through a polarizer whose transmission axis...
Vertically polarized light with an intensity of 0.70 W/m2 passes through a polarizer whose transmission axis is at an angle of 45 ∘ with the vertical. Part A What is the intensity of the transmitted light? Express your answer using two significant figures.
Vertically polarized light with an intensity of 0.50 W/m^2 passes through a polarizer whose transmission axis...
Vertically polarized light with an intensity of 0.50 W/m^2 passes through a polarizer whose transmission axis is at an angle of 21.0degree with the vertical. What is the intensity of the transmitted light?
A vertically polarized beam of light with an intensity lo is incident on a polarizing filter....
A vertically polarized beam of light with an intensity lo is incident on a polarizing filter. The transmission axis of the filter is initially vertical, as shown in the figure. polarizing filter with transmission axis vertical, originally vertically polarized incident beam Keeping the polarizing filter perpendicular to the direction of the incident light at all times, the polarizing filter is rotated a full rotation (360°). Graph 2 Graph 1 A + + + t t 180° 360° o 180° 360°...
Light passes through a first polaroid, producing a beam of intensity Io that is 100% polarized...
Light passes through a first polaroid, producing a beam of intensity Io that is 100% polarized in the vertical direction. The beam then passes through a second polaroid with axis at 30 degrees to the vertical, and a third polaroid at 90 degrees to the vertical. What fraction of Io emerges from the three polaroids?
A Non polarized light of intensity lo is passed through three polarizers. The last two (and...
A Non polarized light of intensity lo is passed through three polarizers. The last two (and and 3) are rotated by 6 clockwise and 499 counterclockwise with respect to the vertical axis respectively. By what factor the light intensity has been reduced during this process? Select one 2,03% 406% 24.74% 49 43% 75 26%
Un-polarized light passes through two polarizers; the axis of one is vertical and that of the other is at 60 degree to the vertical. Calculate the intensity of the transmitted light, I_t in terms of the intensity of the initial un-polarized light, I_0. What happens to the intensity of the transmitted light if a third polarizer, with axis at 45 degree to the second polarizer above, is placed?
GOAL Understand how polarizing materials affect light intensity. Unpolarized light is incident upon three polarizers. The first polarizer has a vertical transmission axis, the second has a transmission axis rotated 30.0 degree with respect to the first, and the third has a transmission axis rotated 75.0 degree relative to the first. If the initial light intensity of the beam is I_b, calculate the light intensity after the beam passes through the second polarizer and the third polarizer. After the beam...
Vertically polarized light with an intensity of 0.50 W/m^2 passes through a polarizer whose transmission axis is at an angle of 21.0degree with the vertical. What is the intensity of the transmitted light?
A vertically polarized beam of light with an intensity lo is incident on a polarizing filter. The transmission axis of the filter is initially vertical, as shown in the figure. polarizing filter with transmission axis vertical, originally vertically polarized incident beam Keeping the polarizing filter perpendicular to the direction of the incident light at all times, the polarizing filter is rotated a full rotation (360°). Graph 2 Graph 1 A + + + t t 180° 360° o 180° 360°...
A Non polarized light of intensity lo is passed through three polarizers. The last two (and and 3) are rotated by 6 clockwise and 499 counterclockwise with respect to the vertical axis respectively. By what factor the light intensity has been reduced during this process? Select one 2,03% 406% 24.74% 49 43% 75 26%
