A) A 70 mW laser beam is polarized horizontally. It then passes through two polarizers. The...

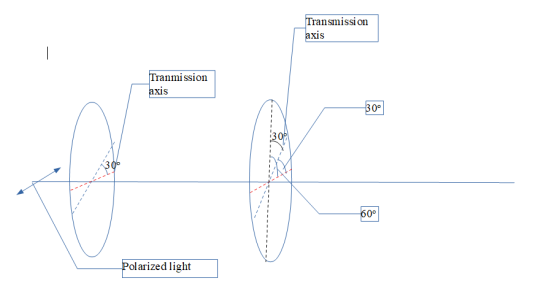

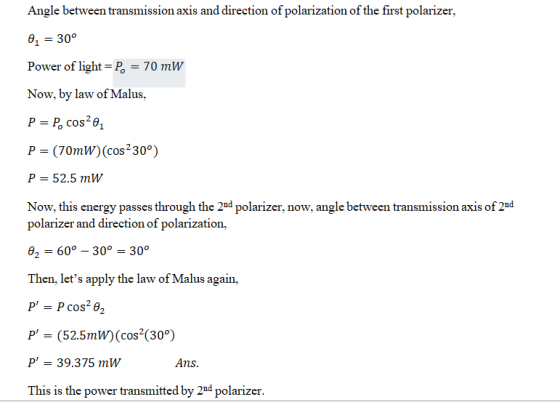

A) A 70 mW laser beam is polarized horizontally. It then passes through two polarizers. The axis of the first polarizer is oriented at 30∘ from the horizontal, and that of the second is oriented at 60∘ from the horizontal.
What is the power of the transmitted beam? Express your answer with the appropriate units
Homework Answers
Add Answer to:
A) A 70 mW laser beam is polarized horizontally. It then passes
through two polarizers. The...
"A 50 mW laser beam is polarized horizontally. It then passes through two polarizers. The axis...
"A 50 mW laser beam is polarized horizontally. It then passes through two polarizers. The axis of the first polarizer is oriented at 30° from the horizontal, and that of the second is oriented at 60° from the horizontal. What is the power of the transmitted beam?" -Thank you in advance for your help
A 240 mW vertically polarized laser beam passes through a polarizing filter whose axis is 34...
A 240 mW vertically polarized laser beam passes through a polarizing filter whose axis is 34 from horizontal. o Part A What is the power of the laser beam as it emerges from the filter? Express your answer to two significant figures and include the appropriate units. MÅ ? P= 160 mW Submit Previous Answers Request Answer X Incorrect; Try Again; 2 attempts remaining
A 200 mW horizontally polarized laser beam passes through apolarizing filter whose axis is 25 degrees...
A 200 mW horizontally polarized laser beam passes through apolarizing filter whose axis is 25 degrees fromvertical. What is the power of the laser beam as it emerges from thefilter?
Un-polarized light passes through two polarizers; the axis of one is vertical and that of the...
Un-polarized light passes through two polarizers; the axis of one is vertical and that of the other is at 60 degree to the vertical. Calculate the intensity of the transmitted light, I_t in terms of the intensity of the initial un-polarized light, I_0. What happens to the intensity of the transmitted light if a third polarizer, with axis at 45 degree to the second polarizer above, is placed?
Example A vertically polarized beam of intensity lo passes through two polarizers, the first with its...
Example A vertically polarized beam of intensity lo passes through two polarizers, the first with its transmission axis at 30° to the vertical, and the second with its transmission axis rotated an additional 30° to the vertical. Calculate the transmitted intensity.
The polarization of a helium-neon laser can change with time. The light from a 1.5 mW...
The polarization of a helium-neon laser can change with time. The light from a 1.5 mW laser is initially horizontally polarized; as the laser warms up, the light changes to be vertically polarized. Suppose the laser beam passes through a polarizer whose axis is 35 ∘ from horizontal. By what percent does the light intensity transmitted through the polarizer decrease as the laser warms up?
Light of intensity Io and polarized horizontally passes through three polarizers. The first and third polarizing...
Light of intensity Io and polarized horizontally passes through three polarizers. The first and third polarizing axes are horizontal, but the second one is oriented 20.0 degrees to the horizontal. In terms of Io, what is the intensity of the light that passes through the set of polarizers? Please show steps and equations
A 6.0 mW vertically polarized laser beam passes through a polarizing filter whose axis is 80...
A 6.0 mW vertically polarized laser beam passes through a polarizing filter whose axis is 80 degrees from vertical. What is the laser-beam power after passing through the filter?
Plane-polarized light passes through two polarizers whose axes are oriented at 35.0 ∘ to each other....
Plane-polarized light passes through two polarizers whose axes are oriented at 35.0 ∘ to each other. If the intensity of the original beam is reduced to 14.5 % , what was the polarization direction of the original beam, relative to the first polarizer? θ = _
The diagram below shows a beam of light shining through three linear polarizers in a row. The polarizing axis of each polarizer is measured at an angle (ϴ1,ϴ2,ϴ3) from vertical. Suppose that the orig...
The diagram below shows a beam of light shining through three
linear polarizers in a row. The polarizing axis of each polarizer
is measured at an angle (ϴ1,ϴ2,ϴ3) from vertical.
Suppose that the original beam of light emanates from a
vertically polarized laser. The laser has a power output of 1 mW
and the beam has a diameter of 2 mm. What is the intensity of the
laser beam before it travels through any polarizers?
Calculate the final intensity of...
A 240 mW vertically polarized laser beam passes through a polarizing filter whose axis is 34 from horizontal. o Part A What is the power of the laser beam as it emerges from the filter? Express your answer to two significant figures and include the appropriate units. MÅ ? P= 160 mW Submit Previous Answers Request Answer X Incorrect; Try Again; 2 attempts remaining
Un-polarized light passes through two polarizers; the axis of one is vertical and that of the other is at 60 degree to the vertical. Calculate the intensity of the transmitted light, I_t in terms of the intensity of the initial un-polarized light, I_0. What happens to the intensity of the transmitted light if a third polarizer, with axis at 45 degree to the second polarizer above, is placed?
Example A vertically polarized beam of intensity lo passes through two polarizers, the first with its transmission axis at 30° to the vertical, and the second with its transmission axis rotated an additional 30° to the vertical. Calculate the transmitted intensity.
The diagram below shows a beam of light shining through three
linear polarizers in a row. The polarizing axis of each polarizer
is measured at an angle (ϴ1,ϴ2,ϴ3) from vertical.
Suppose that the original beam of light emanates from a
vertically polarized laser. The laser has a power output of 1 mW
and the beam has a diameter of 2 mm. What is the intensity of the
laser beam before it travels through any polarizers?
Calculate the final intensity of...
