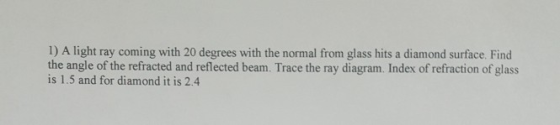

$1) A light ray coming with 20 degrees with the normal from glass hits a diamond surface. Find the angle of the refracted and$

This is due at 1:10pm

science physics

Answer 1

Answer #1

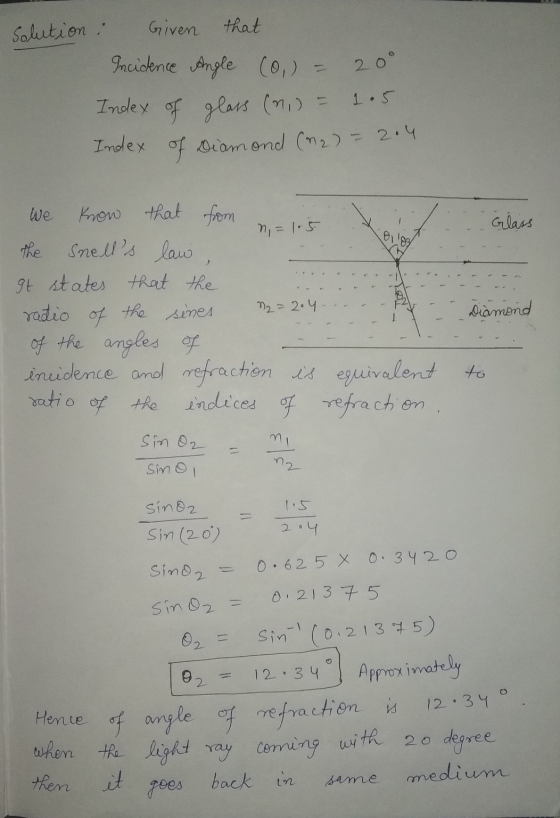

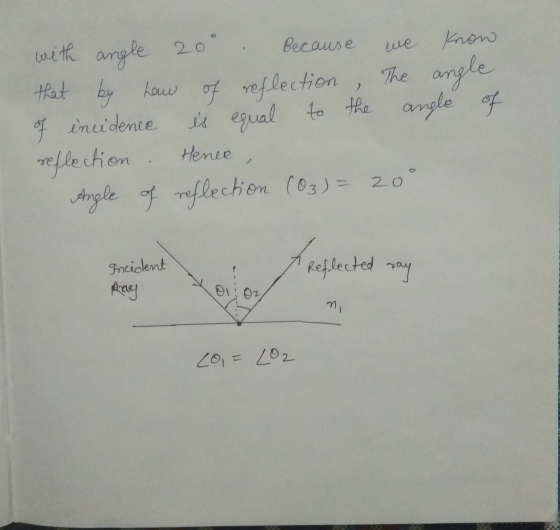

Solution : Given that Incidence Angle (0) = 20° Index of glass (n.) = 1.5 Index of Diamond (02) - 2.4 Glass o We know that fr

Answer 2
