Homework Answers
a) Patient ID is not given to Receptionist to create new appointment. Without patient ID, new appointment cannot be created. Inputs to Patient is given but no output. Receptionist has output but no inputs.
Pharmacist: No output from Pharmacist to provide medications details to Patient. Inputs to Pharmacist is provided, but no output.
b)
Add Answer to:

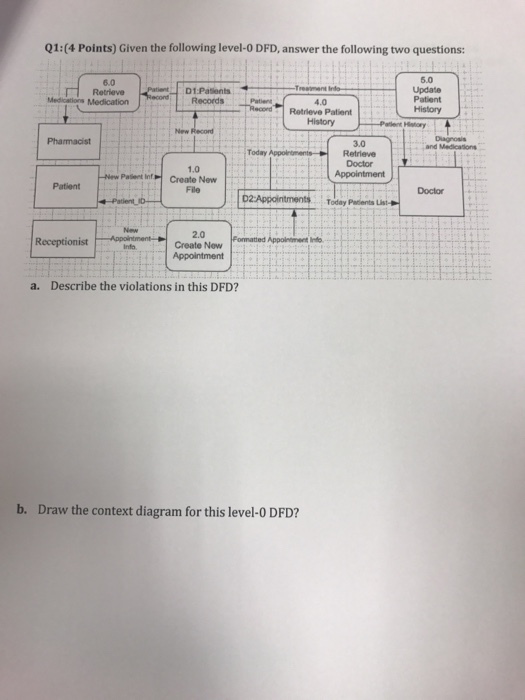

Given the following level-0 DFD, answer the following two questions: Describe the violations in this DFD?...
Create the DFD fragments and the Level 0 DFD utilizing Microsoft Visio. Before you begin to...
Create the DFD fragments and the Level 0 DFD utilizing Microsoft Visio. Before you begin to work on this activity, review the Microsoft Project and Microsoft Visio page tutorials. These tutorials will help you understand how to create the DFD fragments and the Level 0 DFD. Refer to the DFD fragment and the Level 0 DFD examples in the textbook. To create the DFD fragments and the Level 0 DFD, utilize the Data Flow Model Diagram template located in the...
Explain the relationship between a DFD context diagram and the DFD level o diagram. Explain the...
Explain the relationship between a DFD context diagram and the DFD level o diagram. Explain the relationship between a DFD level o diagram and a DFD Level 1 diagrams. please I need it's correct answer.
Problem 7. Perform a Context Diagram and a top level (DFD 0) Data Flow Diagram for...
Problem 7. Perform a Context Diagram and a top level (DFD 0) Data Flow Diagram for the following. Please make it very simple just to allow me to evaluate your understanding of the basic principles of process mapping. 4 and 5. Airport Security Check by TSA (Transportation Security Administration)
Draw a context diagram and a diagram 0 DFD that represents the information system at a...
Draw a context diagram and a diagram 0 DFD that represents the information system at a typical library.Be sure the DFDs are balanced
Use Case and DFD level 0,DFD level 1,DFD level 2 for at least one process for...
Use Case and DFD level 0,DFD level 1,DFD level 2 for at least one process for online website
Use Case and DFD level 0,DFD level 1,DFD level 2 for at least one process for...
Use Case and DFD level 0,DFD level 1,DFD level 2 for at least one process for ROP on line system for fine payment
Draw DFD for the Airline Management System. You need to include at least the context diagram,...
Draw DFD for the Airline Management System. You need to include at least the context diagram, Level-0 and all Level-1 diagrams except for “Report” process in Level-0.
Draw a Data Flow Diagram (DFD) of BUS BOOKING SYSTEM 1. Draw a Context diagram and...
Draw a Data Flow Diagram (DFD) of BUS BOOKING SYSTEM 1. Draw a Context diagram and the interaction between the entities DRIVER, BUS, PASSENGER, SCHEDULE, PAYMENT, AND ADMIN. 2. Level-0 diagram. The level-0 diagram MUST contain at least four distinct processes and relevant data stores. 3. Draw a Level-1 diagram. Decomposes one of the processes shown in the level-0 diagram.
Create: bulleted list of activities, context dfd, level 0 dfd, and flow chart for the following...
Create: bulleted list of activities, context dfd, level 0 dfd, and flow chart for the following info. Info: The mail is received by the receptionist who opens it in the presence of another individual. At that time, all checks are restrictively endorsed by the receptionist. She also prepares and signs a cash receipts summary. The receptionist then prepares and takes a deposit slip, along with the checks, to the bank for deposit on a daily basis. The validated deposit slip...
Create a DFD (Context and Level 0) for a Car Servicing Center. Model the login process...
Create a DFD (Context and Level 0) for a Car Servicing Center. Model the login process for walk-in customers. These customers can be “new” or “existing”. All new customers must be first registered. Each customer may own multiple vehicles, and all vehicles need to be assigned to a “Mechanic” based on schedule and availability. Each vehicle may have one or more service requests. Some services might require ordering of parts from a supplier. Post servicing, the customers will make payments,...
