Add Answer to:

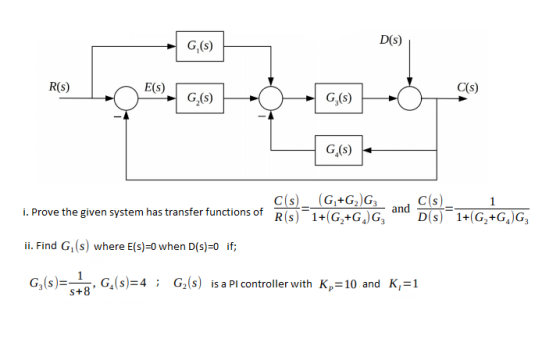

D(S) G(S) R(s) G,(s) G () G.) i. Prove the given system has transfer functions of...
K and consider a PI s+4 A unity feedback system has an open loop transfer function G(s) [4] S+a controller Ge(s) S Sele...
K and consider a PI s+4 A unity feedback system has an open loop transfer function G(s) [4] S+a controller Ge(s) S Select the values of K and a to achieve a) (i) Peak overshoot of about 20% (ii) Settling time (2% bases) ~ 1 sec b) For the values of K and a found in part (a), calculate the unit ramp input steady state error
K and consider a PI s+4 A unity feedback system has an open loop...
C(8) for the system shown in Figure 1. R(S Find the equivalent transfer function, Geg (s)...
C(8) for the system shown in Figure 1. R(S Find the equivalent transfer function, Geg (s) 1 Cix) Figure 1. Block diagram 2s+1 s(5s+6Ge(s) = and Figure 2 shows a closed-loop transfer function, where G(s) 2. proper H(s) K+s. Find the overall closed-loop transfer function and express is as rational function. C(s) Ea (s) Controller R(s) +/ Plant G(s) Ge (s) Feedback H(s) Figure 2. Closed loop transfer function Construct the actuation Error Transfer Function associated with the system shown...
Ex. 192. Refer to the system in Fig. 192 Determine the closed loop transfer function C/R...
Ex. 192. Refer to the system in Fig. 192
Determine the closed loop transfer function C/R = (As+B)/(s+D) where
G1=41, G2=1/(s+30), G3=17. Determine A,B,D. ans:3
Figure 192 G1 - G2 --) R (s) C(s) BLOCK DIAGRAM R 1 G1 G2 C SIGNAL-FLOW GRAPH -G3
1. Consider a feedback system given below: T(s) Disturbance Controller Dynamics R(S) + Gc(s) G.(s) U(s)...
1. Consider a feedback system given below: T(s) Disturbance Controller Dynamics R(S) + Gc(s) G.(s) U(s) Sensor H(s) IMs) Sensor noise where the input and transfer functions are given as follows: R(s) = –,7,(s) = 0, N(s) = 0, G, - 15,6, -_- , and H(s) = 1. s's + 3) a. Derive the system transfer function Y(s)/R(s) = G,, poles, $, On, and, from the response function y(t), the performance measures: rise time Tr, peak time Tp, percent overshoot...
Consider the unity feedback system is given below R(S) C(s) G() with transfer function: G(s) =...
Consider the unity feedback system is given below R(S) C(s) G() with transfer function: G(s) = K s(s + 1)(s + 2)(8 + 6) a) Find the value of the gain K, that will make the system stable. b) Find the value of the gain K, that will make the system marginally stable. c) Find the actual location of the closed-loop poles when the system is marginally stable.
Find the transfer function Y(s)/R(s) in the given SFG. Use fx to input your answer. H2...
Find the transfer function Y(s)/R(s) in the given SFG. Use fx to input your answer. H2 Н. L L2 G2 G3 G4 R(S) Gs GS G6 G7 Y(S) L3 L4 Ho H7 Using SFG, find the transfer function C(s)/R(s). Use fx to input your answer here. R(S) C(s) X x G1 H1 H2 Find the transfer function C/R for the given SFG. Use fx to input your answer. G1 X1 G2 X2 R С -H Reduce into a single transfer...
R+ E vo UA G G b) Given the block diagram as shown, R and D...
R+ E vo UA G G b) Given the block diagram as shown, R and D are inputs and G, G, and H, are transfer functions. D a) Using only the block diagram reduction method*, find the transfer function C/R in terms of G, G2, and H2 HA Using only the block diagram reduction method*, find the transfer function E/D in terms of G, G, and Hz. c) Using either the block diagram reduction method* or the equation method, find...
7.16C). Given the control system shown in Figure P7.16 where the plant transfer function G(o) is given by 2.0 design a PID controller for this system. Cis) R(s) 2.0 sis+ 1)(s+3) Plant PID control...
7.16C). Given the control system shown in Figure P7.16 where the plant transfer function G(o) is given by 2.0 design a PID controller for this system. Cis) R(s) 2.0 sis+ 1)(s+3) Plant PID controller FIGURE P7.16
7.16C). Given the control system shown in Figure P7.16 where the plant transfer function G(o) is given by 2.0 design a PID controller for this system. Cis) R(s) 2.0 sis+ 1)(s+3) Plant PID controller FIGURE P7.16
S+5 Consider a system where the transfer function is given as: G(s) -tS 3+6s2+11s+6 a. Sketch a r...
s+5 Consider a system where the transfer function is given as: G(s) -tS 3+6s2+11s+6 a. Sketch a root locus for static controller gain K b. Design a controller to meet the following specifictions: t, S 1s, 2 0.6, e(oo)Istep0
s+5 Consider a system where the transfer function is given as: G(s) -tS 3+6s2+11s+6 a. Sketch a root locus for static controller gain K b. Design a controller to meet the following specifictions: t, S 1s, 2 0.6, e(oo)Istep0
The transfer function of the given physical system is Gp(s)-1000 The physical system is controlle...
The transfer function of the given physical system is Gp(s)-1000 The physical system is controlled with a unity-feedback system shown below, R(s) + Where Ge is the controller transfer function 3. Lead/Lag Compensator (a) Design a compensator such that the settling time of the compensated system T < 0.02 sec (Use 5% definition), and maximum overshoot of the compensated system is Mp 20%. Clearly explain all your steps. (b) Build a simulink model and use the compensator you designed above....
K and consider a PI s+4 A unity feedback system has an open loop transfer function G(s) [4] S+a controller Ge(s) S Select the values of K and a to achieve a) (i) Peak overshoot of about 20% (ii) Settling time (2% bases) ~ 1 sec b) For the values of K and a found in part (a), calculate the unit ramp input steady state error
K and consider a PI s+4 A unity feedback system has an open loop...
C(8) for the system shown in Figure 1. R(S Find the equivalent transfer function, Geg (s) 1 Cix) Figure 1. Block diagram 2s+1 s(5s+6Ge(s) = and Figure 2 shows a closed-loop transfer function, where G(s) 2. proper H(s) K+s. Find the overall closed-loop transfer function and express is as rational function. C(s) Ea (s) Controller R(s) +/ Plant G(s) Ge (s) Feedback H(s) Figure 2. Closed loop transfer function Construct the actuation Error Transfer Function associated with the system shown...
Ex. 192. Refer to the system in Fig. 192
Determine the closed loop transfer function C/R = (As+B)/(s+D) where
G1=41, G2=1/(s+30), G3=17. Determine A,B,D. ans:3
Figure 192 G1 - G2 --) R (s) C(s) BLOCK DIAGRAM R 1 G1 G2 C SIGNAL-FLOW GRAPH -G3
1. Consider a feedback system given below: T(s) Disturbance Controller Dynamics R(S) + Gc(s) G.(s) U(s) Sensor H(s) IMs) Sensor noise where the input and transfer functions are given as follows: R(s) = –,7,(s) = 0, N(s) = 0, G, - 15,6, -_- , and H(s) = 1. s's + 3) a. Derive the system transfer function Y(s)/R(s) = G,, poles, $, On, and, from the response function y(t), the performance measures: rise time Tr, peak time Tp, percent overshoot...
Consider the unity feedback system is given below R(S) C(s) G() with transfer function: G(s) = K s(s + 1)(s + 2)(8 + 6) a) Find the value of the gain K, that will make the system stable. b) Find the value of the gain K, that will make the system marginally stable. c) Find the actual location of the closed-loop poles when the system is marginally stable.
Find the transfer function Y(s)/R(s) in the given SFG. Use fx to input your answer. H2 Н. L L2 G2 G3 G4 R(S) Gs GS G6 G7 Y(S) L3 L4 Ho H7 Using SFG, find the transfer function C(s)/R(s). Use fx to input your answer here. R(S) C(s) X x G1 H1 H2 Find the transfer function C/R for the given SFG. Use fx to input your answer. G1 X1 G2 X2 R С -H Reduce into a single transfer...
R+ E vo UA G G b) Given the block diagram as shown, R and D are inputs and G, G, and H, are transfer functions. D a) Using only the block diagram reduction method*, find the transfer function C/R in terms of G, G2, and H2 HA Using only the block diagram reduction method*, find the transfer function E/D in terms of G, G, and Hz. c) Using either the block diagram reduction method* or the equation method, find...
7.16C). Given the control system shown in Figure P7.16 where the plant transfer function G(o) is given by 2.0 design a PID controller for this system. Cis) R(s) 2.0 sis+ 1)(s+3) Plant PID controller FIGURE P7.16
7.16C). Given the control system shown in Figure P7.16 where the plant transfer function G(o) is given by 2.0 design a PID controller for this system. Cis) R(s) 2.0 sis+ 1)(s+3) Plant PID controller FIGURE P7.16
s+5 Consider a system where the transfer function is given as: G(s) -tS 3+6s2+11s+6 a. Sketch a root locus for static controller gain K b. Design a controller to meet the following specifictions: t, S 1s, 2 0.6, e(oo)Istep0
s+5 Consider a system where the transfer function is given as: G(s) -tS 3+6s2+11s+6 a. Sketch a root locus for static controller gain K b. Design a controller to meet the following specifictions: t, S 1s, 2 0.6, e(oo)Istep0
The transfer function of the given physical system is Gp(s)-1000 The physical system is controlled with a unity-feedback system shown below, R(s) + Where Ge is the controller transfer function 3. Lead/Lag Compensator (a) Design a compensator such that the settling time of the compensated system T < 0.02 sec (Use 5% definition), and maximum overshoot of the compensated system is Mp 20%. Clearly explain all your steps. (b) Build a simulink model and use the compensator you designed above....
