this is for a feedback control systems class. can
someone help me

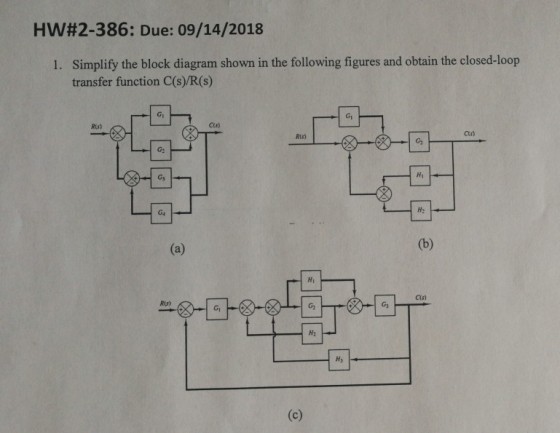

this is for a feedback control systems class. can someone help me HW#2-386: Due: 09/14/2018 Simplify...

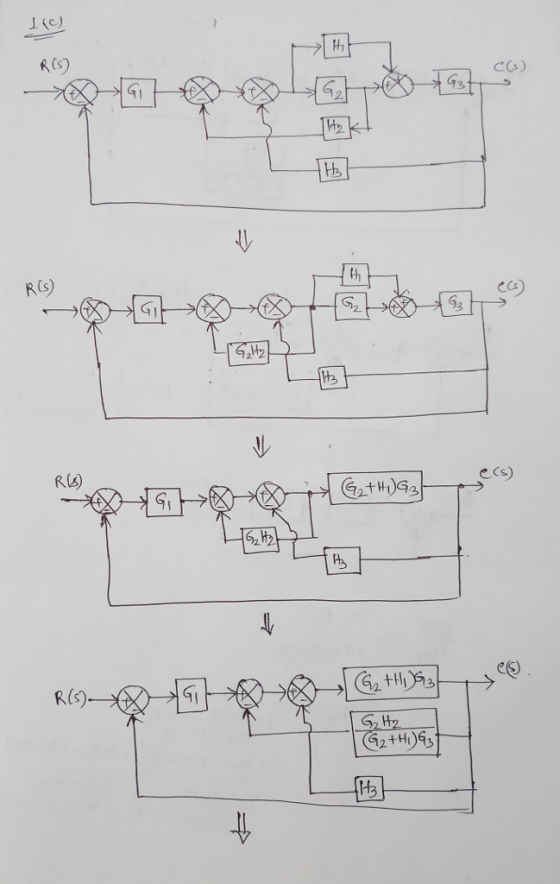

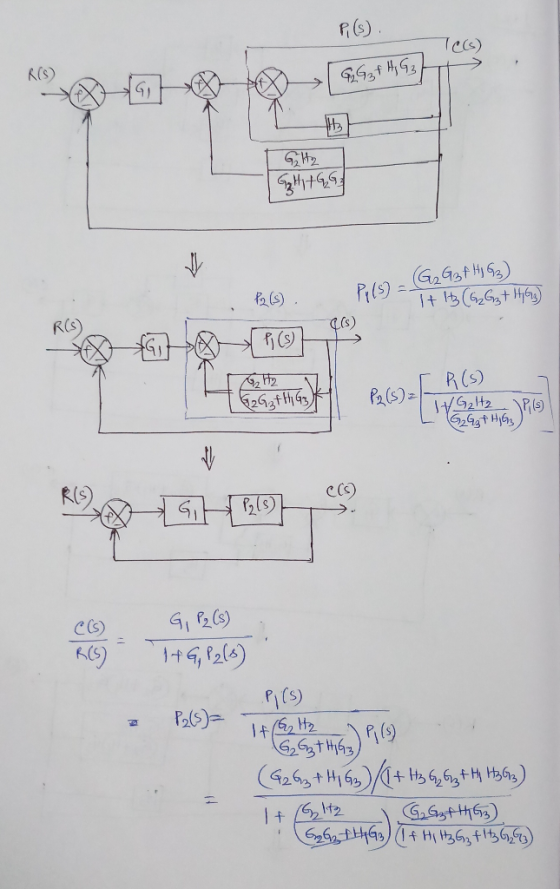

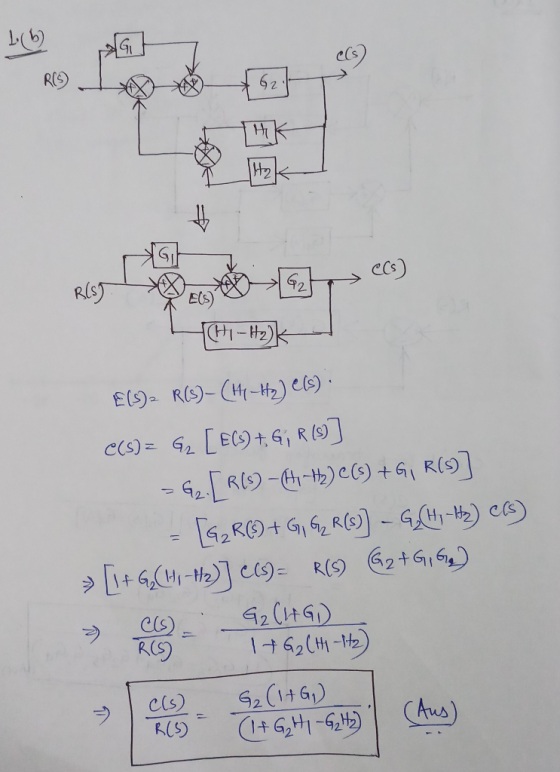

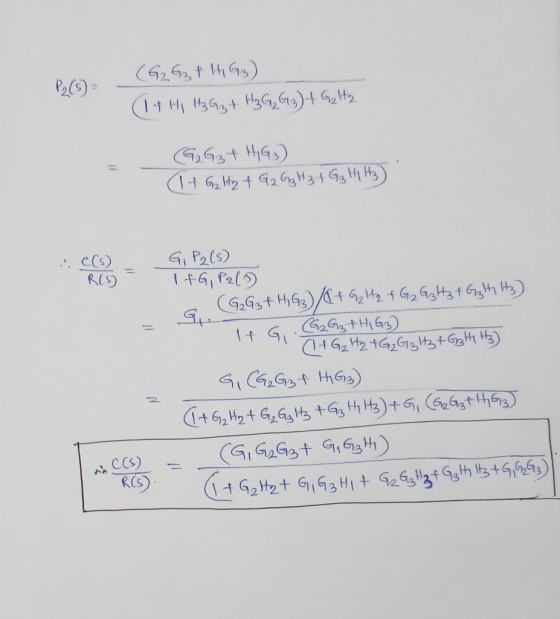

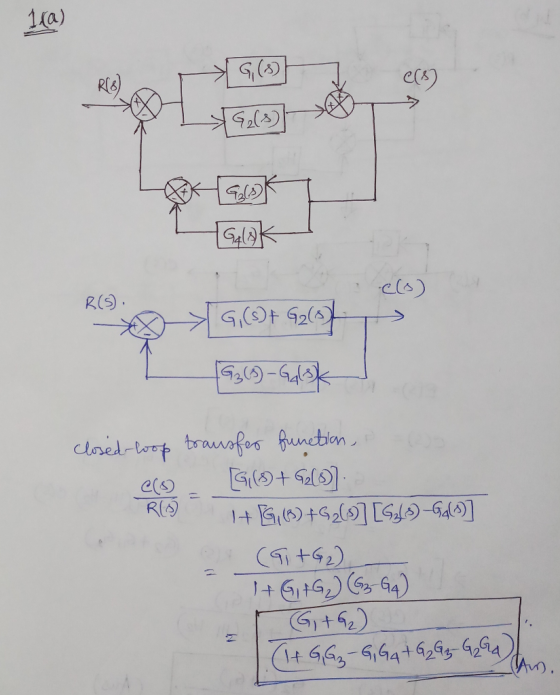

1. Simplify the block diagram shown in the figure below. Then, obtain the closed-loop transfer function C(s) /R(s). Hi R(s) G1 Gix 1 C(s) H2 H3
Answer all questions
ELE380: Control Systems I Homework #1 Due: 10/3/2018 1. The circuit of a bridged-T network is shown below. R2 CIC Show that the transfer function of the network is Vo (s)12R,Cs +R,R2C2s Vin(s) 1 (2R1 R2)Cs R,R2C2s2 Sketch the pole-zero diagram when R 0.5, R2 1,C 0.5 (Hint: One way is to start by writing KCL equations in the s-domain for nodes I and 2) 2. A feedback control system has the structure shown below. Determine the...
Problem 52: (25 points) Operational amplifiers are important building blocks in a wide spectrum of electronic systems such as amplifiers and filters. The concept of feedback control is of central importance in understanding the design of operational amplifier circuits. For without feedback, operational amplifiers behave as comparators. This problem shows why it is necessary to connect the output of an operational amplifier to its inverting input. Negative feedback produces a circuit that is BIBO stable. Figure 1(A) shows the circuit...
P8. Can you please explain your steps
The Performance of Feedback Control Systems the array at its maximum available as the solar inci- dence changes during the day. One such closed-loop system is shown in Eigure P8. The transfer function for necessary gain Ks to maintain a steady-state error equal to 1 ㎝ when the input is a ramp r(t)-1 (me- ters). (b) With this gain K3, determine the necessary gain Ki K2 in order to restrict the percent overshoot...
Higher Colleges of Technology Faculty of Electronic Engineering Class Assignment 4 Second Order Systems EEC 4043: Control Systems Score from 5 Student Name Student ID # You are required to analyze a DC motor speed control system shown in Figure I and 2 below. Figure 1 shows the equivalent circuit diagram of the DC motor control system, while Figure 2 shows the block diagram of the system feedback control G(s) drmanvee Motor Figare 2: The System Feedhack syacm daprams Figue...
Note: Course Name: Automatic Control Systems. Please help me to
solve this problem step-by-step. And thank very much for your great
support and time.
3. (10 points) Suppose the feedback system from problem #2 has a delay of Td seconds in reporting sensor data so that the feedback system is R(s + Y (s) G(s) Delay of Ts The frequency response of G(s) is repeated for convenience. If Td - 0, find the phase and gain margins. What is the...
Can someone help me with problem 4? You dont need to find the
answers for problem 6. Just use the transfer function from problem
6 to do problem 4.
6. Given the unity feedback system with the forward transfer function KG)H(s + 2)(s + 10) a) b) c) d) e) Sketch the root locus Find the breakaway point Find the gain at the breakaway point If one of the poles of the closed-loop system is at s--11, find the other...
