Question

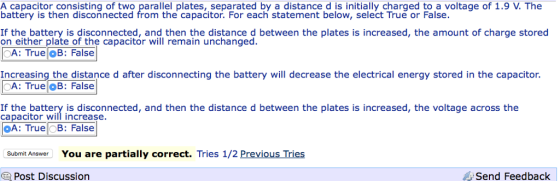

A capacitor consisting of two parallel plates, separated by a distance d is initially charged to a voltage of 1.9 V. The battery is then disconnected from the capacitor. For each statement below, select True or False. on either plate of the capacitor will remain unchanged CA: True OB: False n etherteiate oi tihe napatetor Wifthemaih unichanged between the plates is increased, the amount of charge stored Increasing the distance d after disconnecting the battery will decrease the electrical energy stored in the capacitor. A: TrueOB: False ca pacitor teinf increaoenected, and then the distance d between the plates is Increased, the voltlage across the A: True OB: False Submit Answer You are partially correct. Tries 1/2 Previous Tries Post Discussion Send Feedback

0 0
Add a comment Improve this question Transcribed image text
Answer #1

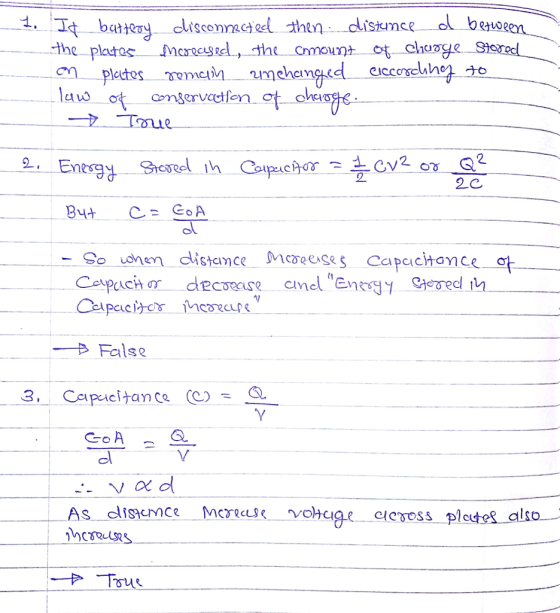

It battr disconnected then. .clistunce . C be tugeen the platos crecs, the cnmouh chusye Energy 2C So nm distance Mceese

Add a comment
Know the answer?
Add Answer to:
A capacitor consisting of two parallel plates, separated by a distance d is initially charged to...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • A capacitor consists of a set of two parallel plates of area A separated by a...

    A capacitor consists of a set of two parallel plates of area A separated by a distance d. This capacitor is connected to a battery that maintains a constant potential difference V across the plates. If the separation between the plates is doubled, the electrical energy stored in the capacitor will be -doubled -unchanged -quadrupled -quartered -halved

  • a parallel-plate capacitor of capacitance C and distance d between plates is fully charged from a...

    a parallel-plate capacitor of capacitance C and distance d between plates is fully charged from a battery of voltage V, and then disconnected. the plates of the capacitor are slowly pulled to the half of the initial distance (d/2). a) The charged stored on the capacitor is: b)The voltage across the capacitor is now: c)How does the energy stored in the capacitor change after this process: d) How does the electric field inside the capacitor change after this process:

  • A parallel plate capacitor is comprised of two metal plates with area A and separated by...

    A parallel plate capacitor is comprised of two metal plates with area A and separated by distance d. This parallel plate capacitor is connected to a battery with voltage AVo. Your answer should depend on A, d, ΔVo, and any other physical constants a. Determine the charge stored on the plates of the capacitor and the energy stored in the capacitor b. Determine the strength of the electric field between the plates of the capacitor c. An experimenter has five...

  • A parallel plate capacitor with plate separation d is connected to a battery. The capacitor is...

    A parallel plate capacitor with plate separation d is connected to a battery. The capacitor is fully charged to Q Coulombs and a voltage of V. (C is the capacitance and U is the stored energy.) Answer the following questions regarding the capacitor charged by a battery. For each statement below, select True or False. True False  With the capacitor connected to the battery, decreasing d increases C. True False  After being disconnected from the battery, inserting a dielectric with κ will...

  • explain why please A parallel-plate capacitor is made of two conducting plates of area A separated...

    explain why please A parallel-plate capacitor is made of two conducting plates of area A separated by a distance d. The capacitor carries a charge Q and is initially connected to a battery that maintains a constant potential difference between the plates. The battery is then disconnected from the plates and the separation between the plates is doubled. ) Which of the following remains constant? Voltage across the capacitor Capacitance of the capacitor Charge on the capacitor Submit (Survey Question)...

  • A capacitor with plates separated by distance do is charged to a voltage difference ΔVC. All...

    A capacitor with plates separated by distance do is charged to a voltage difference ΔVC. All wires and batteries are disconnected, then the two plates are pushed together (with insulated handles so charges cannot flow) to a new separation distance that was half the original distance ( ). Which of the following quantities will be doubled as a result of this new separation distance? a. The capacitance of the capacitor, C. b. The energy stored in the capacitor, U. c....

  • Question 2 1 pts A parallel -plate capacitor of capacitance C with distance d between plates...

    Question 2 1 pts A parallel -plate capacitor of capacitance C with distance d between plates is fully charged from a battery of voltage V and stays connected. The plates of capacitor are slowly pulled to the half of initial distance (d/2). Energy stored is capacitor after pulling the plates to distance d/2: Increased 4 times Increased twice Decreased twice Decreased 4 times Stays the same

  • A parallel plate capacitor with plate separation d is connected to a battery. The capacitor is...

    A parallel plate capacitor with plate separation d is connected to a battery. The capacitor is fully charged to O Coulombs and a voltage of V. (C is the capacitance and U is the stored energy.) Answer the following questions regarding the capacitor charged by a battery. For each statement below, select True or Falsě. True After being disconnected from the battery, decreasing d increases U. True After being disconnected from the battery, inserting a dielectric with k will decrease...

  • A parallel plate capacitor with plate separation d is connected to a battery. The capacitor is...

    A parallel plate capacitor with plate separation d is connected to a battery. The capacitor is fully charged to O Coulombs and a voltage of V. (C is the capacitance and U is the stored energy.) Answer the following questions regarding the capacitor charged by a battery. For each statement below, select True or False. False After being disconnected from the battery, increasing d increases V FalseAfter being disconnected from the battery, insertinga dielectric with K will decrease C. FalseAfter...

  • A parallel plate capacitor with plate separation d is connected to a battery The capacitor is...

    A parallel plate capacitor with plate separation d is connected to a battery The capacitor is fully charged to O Coulombs and a voltage of V. (C is the capacitance and U is the stored energy.) Answer the following questions regarding the capacitor charged by a battery. For each statement below select True or False TrueAfter being disconnected from the battery, inserting a dielectric with K will decrease V FalseWith the capacitor connected to the battery, decreasing d increases U....
