A capacitor with plates separated by distance do is charged to a voltage difference ΔVC. All...
A capacitor with plates separated by distance do is charged to a voltage difference ΔVC. All wires and batteries are disconnected, then the two plates are pushed together (with insulated handles so charges cannot flow) to a new separation distance that was half the original distance ( ). Which of the following quantities will be doubled as a result of this new separation distance?
a. The capacitance of the capacitor, C.
b. The energy stored in the capacitor, U.
c. The magnitude of the electric field between the plates, ∣ E ⃗∣.
d. The voltage drop across the capacitor, ΔVC
e. All of the above choices are correct.

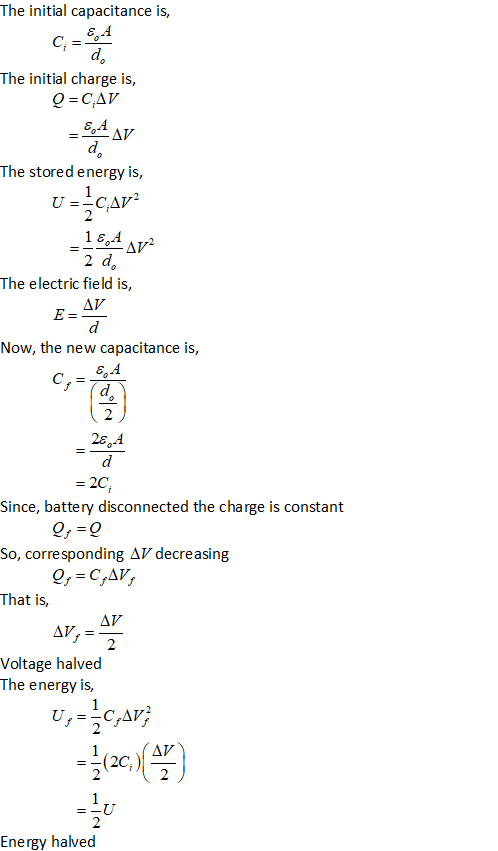

Homework Answers
Add Answer to:
A capacitor with plates separated by distance do is charged to a
voltage difference ΔVC. All...
A capacitor with plates separated by 0.0270 m is charged to a potential difference of 8.50...
A capacitor with plates separated by 0.0270 m is charged to a potential difference of 8.50 V. All wires and batteries are then disconnected, and the two plates are pulled apart to a new separation distance of 0.0540 m. If the initial charge on the capacitor is 3.50 nC, what is the charge after the increase in separation?
A capacitor is completely charged with 570 nC by a voltage source that had 200 V....
A capacitor is completely charged with 570 nC by a voltage source that had 200 V. What is its capacitance? ------------------ Now the plates of the charged capacitor are pushed together with the voltage source already disconnected. a. The energy stored in the capacitor remains the same. b. The capacitance increases. c. The energy stored in the capacitor increases. d. The charge on the plates increases. e. None of the above. ------------- The initial air gap of the capacitor above...
explain why please A parallel-plate capacitor is made of two conducting plates of area A separated...
explain why please
A parallel-plate capacitor is made of two conducting plates of area A separated by a distance d. The capacitor carries a charge Q and is initially connected to a battery that maintains a constant potential difference between the plates. The battery is then disconnected from the plates and the separation between the plates is doubled. ) Which of the following remains constant? Voltage across the capacitor Capacitance of the capacitor Charge on the capacitor Submit (Survey Question)...
a parallel-plate capacitor of capacitance C and distance d between plates is fully charged from a...
a parallel-plate capacitor of capacitance C and distance d between plates is fully charged from a battery of voltage V, and then disconnected. the plates of the capacitor are slowly pulled to the half of the initial distance (d/2). a) The charged stored on the capacitor is: b)The voltage across the capacitor is now: c)How does the energy stored in the capacitor change after this process: d) How does the electric field inside the capacitor change after this process:
A capacitor consisting of two parallel plates, separated by a distance d is initially charged to...
A capacitor consisting of two parallel plates, separated by a distance d is initially charged to a voltage of 1.9 V. The battery is then disconnected from the capacitor. For each statement below, select True or False. on either plate of the capacitor will remain unchanged CA: True OB: False n etherteiate oi tihe napatetor Wifthemaih unichanged between the plates is increased, the amount of charge stored Increasing the distance d after disconnecting the battery will decrease the electrical energy...
QUESTION 5 A capacitor is fully charged by a battery. When the capacitor is still connected...
QUESTION 5 A capacitor is fully charged by a battery. When the capacitor is still connected to the battery, the distance between the two plates decreases. Which of the followings will remain the same? Select all that apply. (a) voltage across the capacitor (b) capacitance (c) charge stored in the capacitor (d) electric field between the two plates (e) electric potential energy stored in the capacitor QUESTION 6 A capacitor is fully charged by a battery. When the capacitor is...
A capacitor consists of a set of two parallel plates of area A separated by a...
A capacitor consists of a set of two parallel plates of area A separated by a distance d. This capacitor is connected to a battery that maintains a constant potential difference V across the plates. If the separation between the plates is doubled, the electrical energy stored in the capacitor will be -doubled -unchanged -quadrupled -quartered -halved
1) A parallel plate capacitor with an area of 300 cm2 is separated by a distance...
1) A parallel plate capacitor with an area of 300 cm2 is separated by a distance of 2 mm in air or vacuum is charged by a battery of 12 volts. Find a) the capacitance of the system, b) the charge on the plates and c) the energy stored. 2) 2 capacitors , one 10 μF and the other 20 μF are connected in series to a battery of 12 volts. Find a) the equivalent capacitance of 2 b) the...
2.(A) A capacitor consisting of two parallel plates with direct between them is connected to a battery. As a result...
2.(A) A capacitor consisting of two parallel plates with direct between them is connected to a battery. As a result, the plates become charged. The battery is then disconnected with the lates insulated so no charge can escape, and the dielectric is then removed. How would each of the following change? The charge on the plates. Increase / Decrease / Remains the same The potential drop across the plates. Increase / Decrease / Remains the same The capacitance of the...
A parallel plate capacitor is comprised of two metal plates with area A and separated by...
A parallel plate capacitor is comprised of two metal plates with area A and separated by distance d. This parallel plate capacitor is connected to a battery with voltage AVo. Your answer should depend on A, d, ΔVo, and any other physical constants a. Determine the charge stored on the plates of the capacitor and the energy stored in the capacitor b. Determine the strength of the electric field between the plates of the capacitor c. An experimenter has five...
explain why please
A parallel-plate capacitor is made of two conducting plates of area A separated by a distance d. The capacitor carries a charge Q and is initially connected to a battery that maintains a constant potential difference between the plates. The battery is then disconnected from the plates and the separation between the plates is doubled. ) Which of the following remains constant? Voltage across the capacitor Capacitance of the capacitor Charge on the capacitor Submit (Survey Question)...
A capacitor consisting of two parallel plates, separated by a distance d is initially charged to a voltage of 1.9 V. The battery is then disconnected from the capacitor. For each statement below, select True or False. on either plate of the capacitor will remain unchanged CA: True OB: False n etherteiate oi tihe napatetor Wifthemaih unichanged between the plates is increased, the amount of charge stored Increasing the distance d after disconnecting the battery will decrease the electrical energy...
2.(A) A capacitor consisting of two parallel plates with direct between them is connected to a battery. As a result, the plates become charged. The battery is then disconnected with the lates insulated so no charge can escape, and the dielectric is then removed. How would each of the following change? The charge on the plates. Increase / Decrease / Remains the same The potential drop across the plates. Increase / Decrease / Remains the same The capacitance of the...
A parallel plate capacitor is comprised of two metal plates with area A and separated by distance d. This parallel plate capacitor is connected to a battery with voltage AVo. Your answer should depend on A, d, ΔVo, and any other physical constants a. Determine the charge stored on the plates of the capacitor and the energy stored in the capacitor b. Determine the strength of the electric field between the plates of the capacitor c. An experimenter has five...
