Homework Answers
Add Answer to:

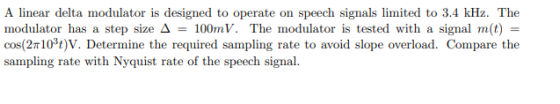

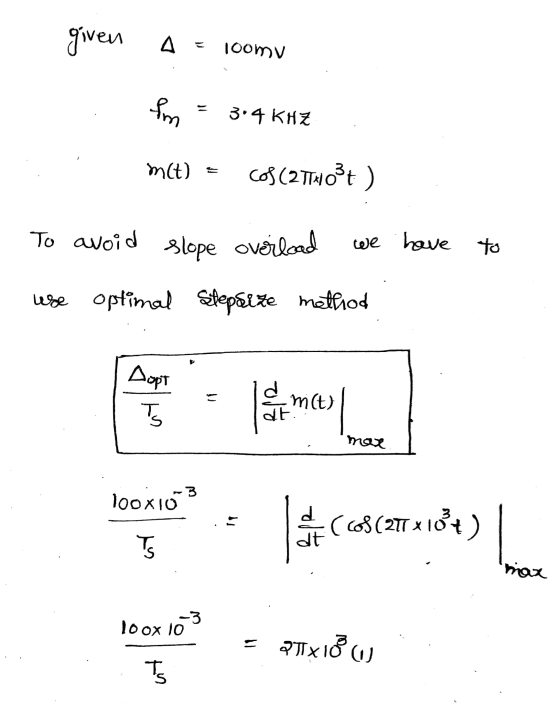

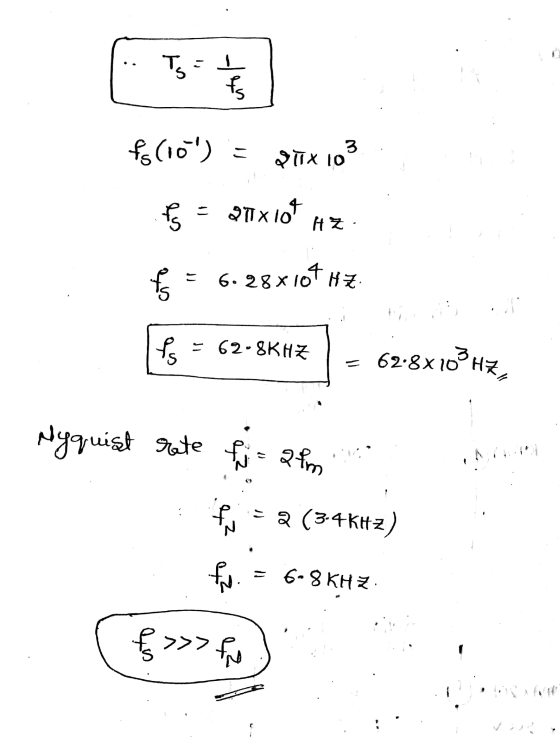

A linear delta modulator is designed to operate on speech signals limited to 3.4 kHz. The...
b) A signals, m(t), is band-limited to 5 KHz, and , is band-limited to 5 KHz,...
b) A signals, m(t), is band-limited to 5 KHz, and , is band-limited to 5 KHz, and three other signals, m(t), m(t) and mu(t), have a bandwidth of 2.2 KHz. These signals are to be transmitted by means of multiplexing (TDM). nals are to be transmitted by means of time-division Set up a TDM scheme for accomplishing this multiplexing requirement, with each signal sampled at or above its Nyquist rate. If the commutator output is quantized with L=512 levels and...
In a single-integration DM system, the voice signal is sampled at a rate of 64 kHz,...
In a single-integration DM system, the voice signal is sampled at a rate of 64 kHz, similar to PCM. The maximum signal amplitude is normalized as Amax1 (a) Determine the minimum value of the step size ? to avoid slope overload (b) Determine the granular noise power No if the voice signal bandwidth is 3.4 kHz. (c) Assuming that the voice signal is sinusoidal, determine So and the SNR. (d) Assuming that the voice signal amplitude is uniformly distributed in...
3. [25pt] We want to modulate m(t)=-2 1-0.5 +1, OSIS1 [sec], by using a delta modulation...
3. [25pt] We want to modulate m(t)=-2 1-0.5 +1, OSIS1 [sec], by using a delta modulation (DM) with the sampling frequency of 5 [Hz]. We let T denote a sampling period. (a) Determine the minimum permissible value of the step size A used in the delta modulation to avoid a slope overload distortion. (Note: The value of A obtained in (a) will be used in the following problems.) (b) Determine m,(nt) for 0<nt, s1 with m,(0)=0.2. (c) Let us encode...
LMS project Using the notes discussed in class: Implementing the LMS Algorithm First generate some signals clear all c...
LMS project Using the notes discussed in class: Implementing the LMS Algorithm First generate some signals clear all close al1: Generate signals for testing the LMS Algorithm 1000 Fs Sampling frequency Sample time 1/Fs 10000: = L Length of signal S Time vector (0:L-1) *T ; Sum of a 50 Hz sinusoid and a 120 Hz sinusoid 0.7 sin (2*pi*50*t); inuside X d+ 10 randn (size (t)); Sinusoids 5O0000000L plus noise fiqure (1) plot (Fs*t (1:150),x (1:1500)) title('Signal Corrupted with...
LMS project Using the notes discussed in class: Implementing the LMS Algorithm First generate some signals...
LMS project Using the notes discussed in class: Implementing the LMS Algorithm First generate some signals clear all close al1: Generate signals for testing the LMS Algorithm 1000 Fs Sampling frequency Sample time 1/Fs 10000: = L Length of signal S Time vector (0:L-1) *T ; Sum of a 50 Hz sinusoid and a 120 Hz sinusoid 0.7 sin (2*pi*50*t); inuside X d+ 10 randn (size (t)); Sinusoids 5O0000000L plus noise fiqure (1) plot (Fs*t (1:150),x (1:1500)) title('Signal Corrupted with...
b) A signals, m(t), is band-limited to 5 KHz, and , is band-limited to 5 KHz, and three other signals, m(t), m(t) and mu(t), have a bandwidth of 2.2 KHz. These signals are to be transmitted by means of multiplexing (TDM). nals are to be transmitted by means of time-division Set up a TDM scheme for accomplishing this multiplexing requirement, with each signal sampled at or above its Nyquist rate. If the commutator output is quantized with L=512 levels and...
In a single-integration DM system, the voice signal is sampled at a rate of 64 kHz, similar to PCM. The maximum signal amplitude is normalized as Amax1 (a) Determine the minimum value of the step size ? to avoid slope overload (b) Determine the granular noise power No if the voice signal bandwidth is 3.4 kHz. (c) Assuming that the voice signal is sinusoidal, determine So and the SNR. (d) Assuming that the voice signal amplitude is uniformly distributed in...
3. [25pt] We want to modulate m(t)=-2 1-0.5 +1, OSIS1 [sec], by using a delta modulation (DM) with the sampling frequency of 5 [Hz]. We let T denote a sampling period. (a) Determine the minimum permissible value of the step size A used in the delta modulation to avoid a slope overload distortion. (Note: The value of A obtained in (a) will be used in the following problems.) (b) Determine m,(nt) for 0<nt, s1 with m,(0)=0.2. (c) Let us encode...
LMS project Using the notes discussed in class: Implementing the LMS Algorithm First generate some signals clear all close al1: Generate signals for testing the LMS Algorithm 1000 Fs Sampling frequency Sample time 1/Fs 10000: = L Length of signal S Time vector (0:L-1) *T ; Sum of a 50 Hz sinusoid and a 120 Hz sinusoid 0.7 sin (2*pi*50*t); inuside X d+ 10 randn (size (t)); Sinusoids 5O0000000L plus noise fiqure (1) plot (Fs*t (1:150),x (1:1500)) title('Signal Corrupted with...
LMS project Using the notes discussed in class: Implementing the LMS Algorithm First generate some signals clear all close al1: Generate signals for testing the LMS Algorithm 1000 Fs Sampling frequency Sample time 1/Fs 10000: = L Length of signal S Time vector (0:L-1) *T ; Sum of a 50 Hz sinusoid and a 120 Hz sinusoid 0.7 sin (2*pi*50*t); inuside X d+ 10 randn (size (t)); Sinusoids 5O0000000L plus noise fiqure (1) plot (Fs*t (1:150),x (1:1500)) title('Signal Corrupted with...
