The beam is subjected to an internal moment of M = 82 kN.m. (Figure 1)

Question

Question

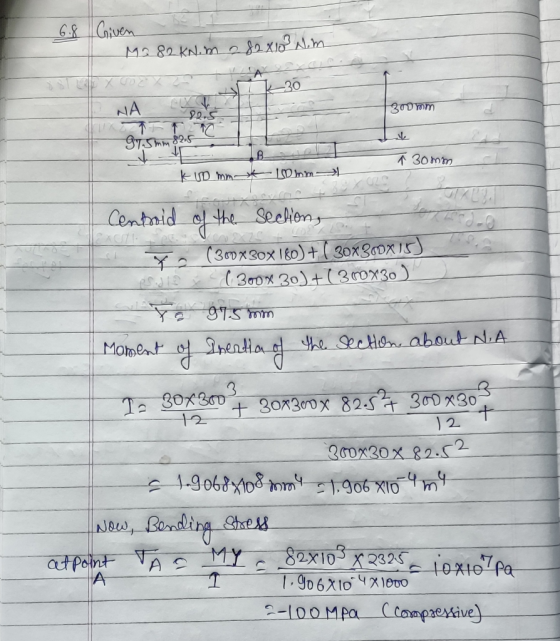

Part A Determine the bending stress developed at point A.

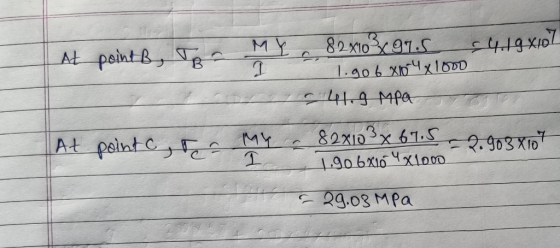

Part B Determine the bending stress developed at point B.

Part C Determine the bending stress developed at point C.

engineering Mechanical-Engineering

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

If the beam in figure 3 is subjected to a bending moment of M =20...

If the beam in figure 3 is subjected to a bending moment of M = 20 kN.m, determine the maximum bending stress in the beam
The beam is subjected to a moment of M = 4.8kip·ft . (Figure 1)

The beam is subjected to a moment of M = 4.8kip·ft . (Figure 1) Part ADetermine the maximum tensile bending stress in the beam. Part B Determine the maximum compressive bending stress in the beam.
The beam shown in the figure below (Figure 1) is subjected to a moment of M = 45 kN · m.

The beam shown in the figure below (Figure 1) is subjected to a moment of M = 45 kN · m. Part ADetermine the bending stress at point A. Express your answer to three significant figures and include appropriate units. Part BDetermine the bending stress at point B. Express your answer to three significant figures and include appropriate units.

If the beam is subjected to an internal bending moment of 36.8 kip-ft, determine the normal...

If the beam is subjected to an internal bending moment of 36.8 kip-ft, determine the normal stress (in ksi) due to bending developed at point B on the cross-section. Note: Your answer should be in requested units and be to 2 decimal places. 12" M 1.5" 1.5" C B 6" 6
If the beam, shown in Figure 6, is subjected to an internal moment of 2.5 kNm,...

If the beam, shown in Figure 6, is subjected to an internal moment of 2.5 kNm, determine the maximum tensile and compressive stress in the beam. Also sketch the bending stress distribution on the cross section.
Problem 6.54 The builtl up beam in (Figure 1) is subjected to an internal moment of...

Problem 6.54 The builtl up beam in (Figure 1) is subjected to an internal moment of M-55 kN-m. Part A Determine the maximum tensile stress acing in the beanm Express your answer to three significant figures and include appropriate units. Figure < 1011 150 (-..),- | Value Units 20 Submit Previous Ans Hequest Answer 10 mm 150 mm incorrect; Try Again: 3 attempts remaining 10 mm PartB Determine the maximum compressive stress acting in beam Express your answer to three...

Figure 2a shows a composite beam made by placing three steel plates inside a wooden section....

Figure 2a shows a composite beam made by placing three steel plates inside a wooden section. (a) Determine the maximum bending stress developed in the wooden section and steel plate if the beam is subjected to allowable bending moment, M of 20 kN.m. Given that the Modulus of Elasticity of wood is 13.1 GPa and steel is 200 GPa. [14 Marks] Figure 2a: Composite beam (b) Figure 2b shows another beam without steel plates. Suggest the maximum bending stress for...
If the beam is subjected to a positive bending moment of M = 100 kN-m, determine...

If the beam is subjected to a positive bending moment of M = 100 kN-m, determine the maximum and minimum bending stress. Also determine the shear stress at point, A which is 50 mm above from the bottom. The cross-section of the beam is I-shaped and shown in the figure. 300 mm 30 mm 300 mm . 50 mm 30 mm
If the beam is subjected to a positive bending moment of M = 100 kN-m, determine...

If the beam is subjected to a positive bending moment of M = 100 kN-m, determine the maximum and minimum bending stress. Also determine the shear stress at point, A which is 50 mm above from the bottom. The cross-section of the beam is I-shaped and shown in the figure. 300 mm 30 mm 300 mm . 50 mm 30 mm
