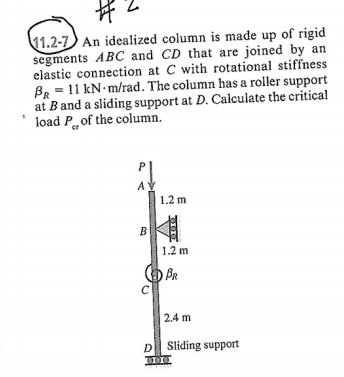

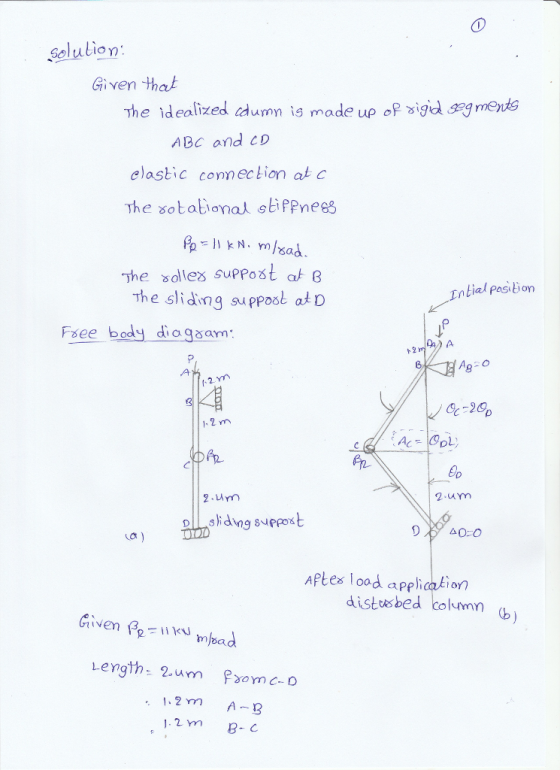

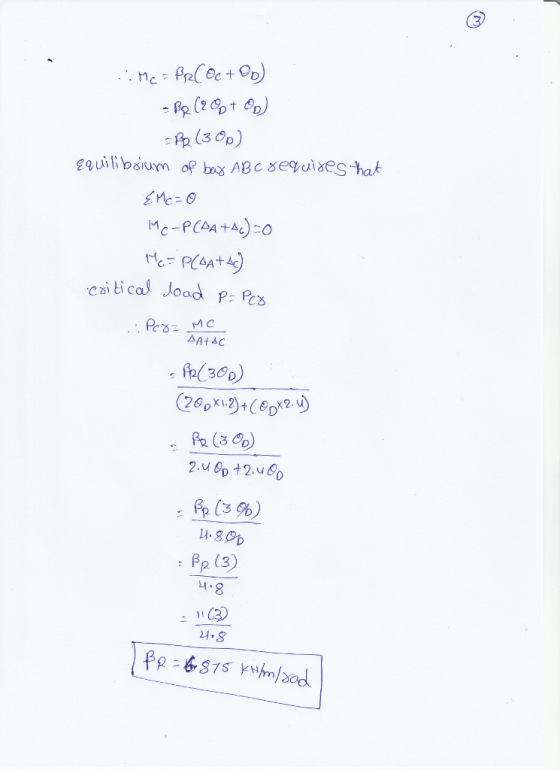

1.2-7 An idealized column is made up of rigid segments ABC and CD that are joined...
1.2-3 Segments AB and BCD of beam ABCD are pin con- nected at x- Thebeam is...
1.2-3 Segments AB and BCD of beam ABCD are pin con- nected at x- Thebeam is supported by a pin support at A and roller supports at C and D: the roller at D is rotated by 30° from the x axis (see figure). A trapezoidal dis- tributed load on BC varies in intensity fromat B to at C. A concentrated moment is applied at joint A, inclined load is applied at the mid-span of CD and a (a) Find...
Use the stiffness method to analyse the elastic frame ABC shown below. Use a model made...
Use the stiffness method to analyse the elastic frame ABC shown below. Use a model made up of 2 the elements (AB and CB) and the axis indicated in the figure. All members have the following properties: E = 2 -10% kPa, A = 0.005 m², 1 = 1.5e - 4 m. Also the lengths of the elements are the same: AB = BC = L = 3.1 m and 6 = 45 kN/m. ות 0 B 3 2 x...
Use the stiffness method to analyse the elastic frame ABC shown below. Use a model made...
Use the stiffness method to analyse the elastic frame ABC shown below. Use a model made up of 2 the elements (AB and CB) and the axis indicated in the figure. All members have the following properties: E = 2 -10% kPa, A = 0.005 m², 1 = 1.5e - 4 m. Also the lengths of the elements are the same: AB = BC = L = 3.1 m and 6 = 45 kN/m. ות 0 B 3 2 x...
Use the stiffness method to analyse the elastic frame ABC shown below. Use a model made...
Use the stiffness method to analyse the elastic frame ABC shown below. Use a model made up of 2 the elements (AB and CB) and the axis indicated in the figure. All members have the following properties: E = 2 -10% kPa, A = 0.005 m², 1 = 1.5e - 4 m. Also the lengths of the elements are the same: AB = BC = L = 3.1 m and 6 = 45 kN/m. ות 0 B 3 2 x...
3- (SKMMIH3/SME2113) from plastic having modulus of elasticity, E-4.0GPa a) Bar ABCD shown in Figure Q3a is made The bar consists of three segments, AB, BC, and CD. Segment AB is hollow and segm...
3- (SKMMIH3/SME2113) from plastic having modulus of elasticity, E-4.0GPa a) Bar ABCD shown in Figure Q3a is made The bar consists of three segments, AB, BC, and CD. Segment AB is hollow and segments BC and CD are solids If the shortening (contraction) of bar ABCD is limited to 4.0 mm, determine the maximum allowable force P to be applied at C. (8 marks) 90 mm ΟΙ 00 mm 1080 min PL 500 mm 250 mm 250 mm Figure Q3a...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the ver...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
1.2-3 Segments AB and BCD of beam ABCD are pin con- nected at x- Thebeam is supported by a pin support at A and roller supports at C and D: the roller at D is rotated by 30° from the x axis (see figure). A trapezoidal dis- tributed load on BC varies in intensity fromat B to at C. A concentrated moment is applied at joint A, inclined load is applied at the mid-span of CD and a (a) Find...
Use the stiffness method to analyse the elastic frame ABC shown below. Use a model made up of 2 the elements (AB and CB) and the axis indicated in the figure. All members have the following properties: E = 2 -10% kPa, A = 0.005 m², 1 = 1.5e - 4 m. Also the lengths of the elements are the same: AB = BC = L = 3.1 m and 6 = 45 kN/m. ות 0 B 3 2 x...
Use the stiffness method to analyse the elastic frame ABC shown below. Use a model made up of 2 the elements (AB and CB) and the axis indicated in the figure. All members have the following properties: E = 2 -10% kPa, A = 0.005 m², 1 = 1.5e - 4 m. Also the lengths of the elements are the same: AB = BC = L = 3.1 m and 6 = 45 kN/m. ות 0 B 3 2 x...
Use the stiffness method to analyse the elastic frame ABC shown below. Use a model made up of 2 the elements (AB and CB) and the axis indicated in the figure. All members have the following properties: E = 2 -10% kPa, A = 0.005 m², 1 = 1.5e - 4 m. Also the lengths of the elements are the same: AB = BC = L = 3.1 m and 6 = 45 kN/m. ות 0 B 3 2 x...
3- (SKMMIH3/SME2113) from plastic having modulus of elasticity, E-4.0GPa a) Bar ABCD shown in Figure Q3a is made The bar consists of three segments, AB, BC, and CD. Segment AB is hollow and segments BC and CD are solids If the shortening (contraction) of bar ABCD is limited to 4.0 mm, determine the maximum allowable force P to be applied at C. (8 marks) 90 mm ΟΙ 00 mm 1080 min PL 500 mm 250 mm 250 mm Figure Q3a...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
