Question

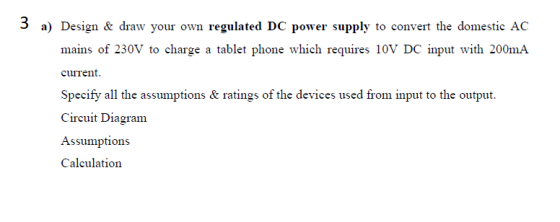

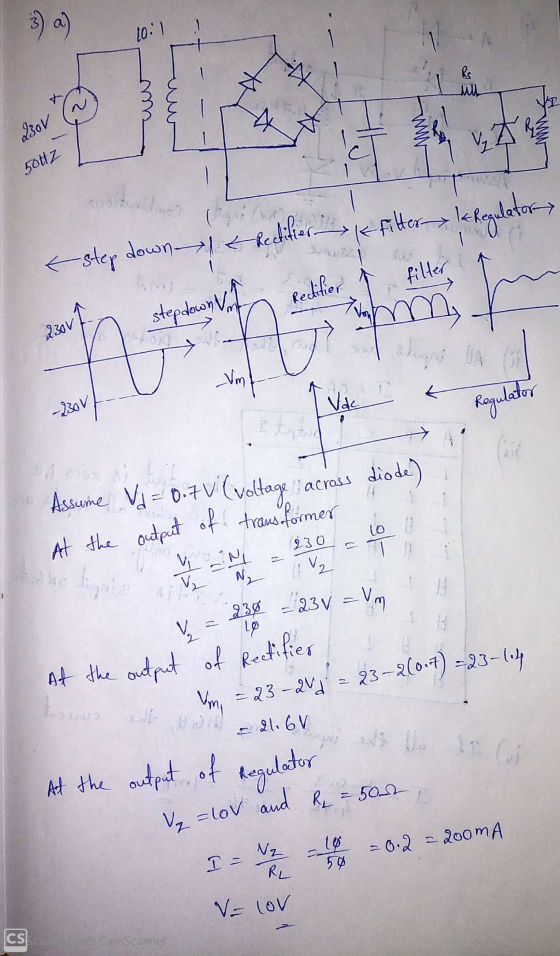

3 a) Design & draw your own regulated DC power supply to convert the domestic AC mains of 230V to charge a tablet phone which

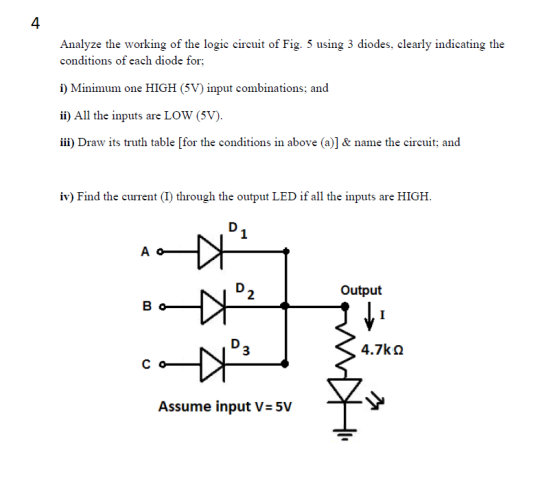

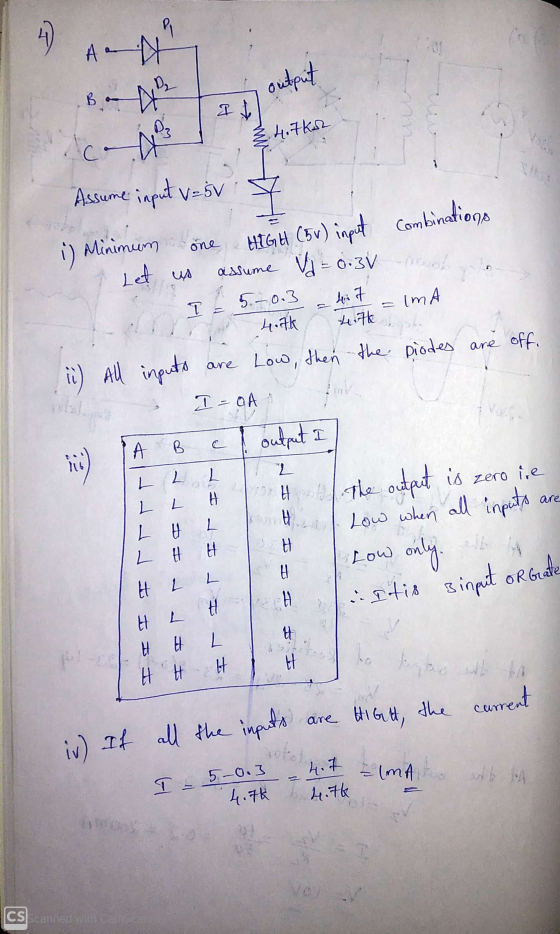

Analyze the working of the logic circuit of Fig. 5 using 3 diodes, clearly indicating the conditions of each diode for; i) Mi

Please solve the following questions with full solution and clear handwriting

0 0
Add a comment Improve this question Transcribed image text
Know the answer?
Add Answer to:
Please solve the following questions with full solution and clear handwriting 3 a) Design & draw...
