An oxidized silicon (100) wafer has an initial field oxide thickness of d0. Dry oxidation at...
An oxidized silicon (100) wafer has an initial field oxide thickness of d0. Dry oxidation at 1000 ̊C is then used to grow a thin film gate of 1000 Å in 1.7 hrs. Calculate the original field oxide thickness d0?
Homework Answers

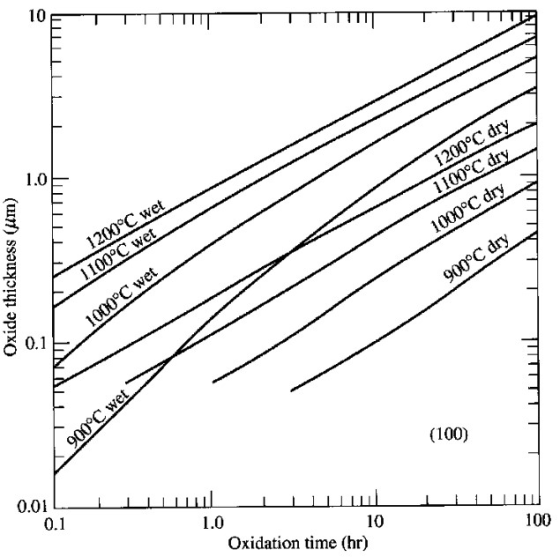

One needs to take the help of growth curves(shown) above to answer this curve.From the “1000oC dry” curve in above figure, in 1.7 hrs one can grow of oxide around 880 Ao.
So, original field oxide thickness d0 = 1000-880 = 120 Ao
Add Answer to:
An oxidized silicon (100) wafer has an initial field oxide
thickness of d0. Dry oxidation at...
1. A wafer of silicon is oxidized on one surface at 825°C and 925°C for a...

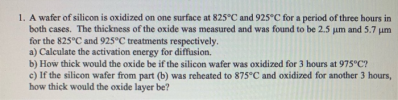

1. A wafer of silicon is oxidized on one surface at 825°C and 925°C for a period of three hours in both cases. The thickness of the oxide was measured and was found to be 2.5 um and 5.7 um for the 825°C and 925°C treatments respectively. a) Calculate the activation energy for diffusion. b) How thick would the oxide be if the silicon wafer was oxidized for 3 hours at 975°C? c) If the silicon wafer from part (b)...
1. Start with bare (111) silicon wafer. You want to grow 1 um of SiO2 using...
1. Start with bare (111) silicon wafer. You want to grow 1 um of SiO2 using dry (for the first 500 Å) and wet oxidation at 1,000 °C. Calculate total time. 2. Local oxidation is a process that is widely used to provide lateral isolation between devices in IC chips. In some cases, it is desirable to end up with a more planar surface than standard LOCOS provides, and so a silicon etch is used prior to the oxidation step...
Problem 7 T (C) 12001000 900800 700 T(C) 800 700 \· 10 1000 600 H2O (105 Pa) E, -2.05 eV 100 Wet oxidation HO (I0 P) (U11)S (100) S 10-1 E. 071 ev 10-2 i Dry 0,005 Pa) E-20 ev Dry oxidation (10...
Problem 7 T (C) 12001000 900800 700 T(C) 800 700 \· 10 1000 600 H2O (105 Pa) E, -2.05 eV 100 Wet oxidation HO (I0 P) (U11)S (100) S 10-1 E. 071 ev 10-2 i Dry 0,005 Pa) E-20 ev Dry oxidation (105 Pa) (100) S 10-3 い1.24 eV 10-H 10-4 0.6 07 08 0.9 10 0.7 0.8 0.9 10 1 12 1000/T (K-1 1000 / TK-1) A thermal oxide of thickness 150 nm needs to be grown on a...
Problem 3. Wet etching vs. dry etching and dimensions (pdf (27)pdf Consider the wafer cross section...
Problem 3. Wet etching vs. dry etching and dimensions (pdf (27)pdf Consider the wafer cross section below. A SiI,N, film of 250 nm, and a SiO, film of 250 nm are deposited above a silicon wafer as shown. This diagram original cross section will be used for all of problem 2. 100 Photoresist sio, a. List the possible, specific methods by which this particular silicon dioxide layer is generated (i.e. LPCVD, etc). b. List the three main mechanistic steps involved...
Q1 Electron-beam lithography has long been used to write the desired pattern directly onto the wafer....
Q1 Electron-beam lithography has long been used to write the desired pattern directly onto the wafer. Select one: True False Q2 Antenna rules are checked during layout which limit the ratio of the area of the metal wires used to connect the gates of MOSFETs, to the area of these thin MOSFET gate oxides. Select one: True False Q3 Copper metallization uses a single damascene process to create vias, which connect adjacent copper metal layers. Select one: True False Q4...
need help with the Molarity of both parts EXPERIMENT 8: AN OXIDATION-REDUCTION TITRATION DATA SHEET 0.2M...
need help with the Molarity of both parts
EXPERIMENT 8: AN OXIDATION-REDUCTION TITRATION DATA SHEET 0.2M 10 m2 Concentration of original KMnO solution Volume of Original KMnO4 solution used Molarity of KNOWN HOCg04 D.ISOM Standardization of KMnO solution. Sample 3 Sample 1 Volume H2C204 11.00ML Initial buret reading (KMnO4) .00 mc Final buret reading (KMnO4) 12.00ML Volume KMnO4 12.00ml Molarity KMnO4 Average (KMnO4) Sample 2 4:00ML 12.00mL 13.5ML . SOL Determination of Unknown Solution Sample 3 Sample 1 4ml Volume...
10. Write a one-page summary of the attached paper? INTRODUCTION Many problems can develop in activated...
10. Write a one-page summary of the attached paper? INTRODUCTION Many problems can develop in activated sludge operation that adversely affect effluent quality with origins in the engineering, hydraulic and microbiological components of the process. The real "heart" of the activated sludge system is the development and maintenance of a mixed microbial culture (activated sludge) that treats wastewater and which can be managed. One definition of a wastewater treatment plant operator is a "bug farmer", one who controls the aeration...
1. A wafer of silicon is oxidized on one surface at 825°C and 925°C for a period of three hours in both cases. The thickness of the oxide was measured and was found to be 2.5 um and 5.7 um for the 825°C and 925°C treatments respectively. a) Calculate the activation energy for diffusion. b) How thick would the oxide be if the silicon wafer was oxidized for 3 hours at 975°C? c) If the silicon wafer from part (b)...
1. Start with bare (111) silicon wafer. You want to grow 1 um of SiO2 using dry (for the first 500 Å) and wet oxidation at 1,000 °C. Calculate total time. 2. Local oxidation is a process that is widely used to provide lateral isolation between devices in IC chips. In some cases, it is desirable to end up with a more planar surface than standard LOCOS provides, and so a silicon etch is used prior to the oxidation step...
Problem 7 T (C) 12001000 900800 700 T(C) 800 700 \· 10 1000 600 H2O (105 Pa) E, -2.05 eV 100 Wet oxidation HO (I0 P) (U11)S (100) S 10-1 E. 071 ev 10-2 i Dry 0,005 Pa) E-20 ev Dry oxidation (105 Pa) (100) S 10-3 い1.24 eV 10-H 10-4 0.6 07 08 0.9 10 0.7 0.8 0.9 10 1 12 1000/T (K-1 1000 / TK-1) A thermal oxide of thickness 150 nm needs to be grown on a...
Problem 3. Wet etching vs. dry etching and dimensions (pdf (27)pdf Consider the wafer cross section below. A SiI,N, film of 250 nm, and a SiO, film of 250 nm are deposited above a silicon wafer as shown. This diagram original cross section will be used for all of problem 2. 100 Photoresist sio, a. List the possible, specific methods by which this particular silicon dioxide layer is generated (i.e. LPCVD, etc). b. List the three main mechanistic steps involved...
need help with the Molarity of both parts
EXPERIMENT 8: AN OXIDATION-REDUCTION TITRATION DATA SHEET 0.2M 10 m2 Concentration of original KMnO solution Volume of Original KMnO4 solution used Molarity of KNOWN HOCg04 D.ISOM Standardization of KMnO solution. Sample 3 Sample 1 Volume H2C204 11.00ML Initial buret reading (KMnO4) .00 mc Final buret reading (KMnO4) 12.00ML Volume KMnO4 12.00ml Molarity KMnO4 Average (KMnO4) Sample 2 4:00ML 12.00mL 13.5ML . SOL Determination of Unknown Solution Sample 3 Sample 1 4ml Volume...
