Please show all steps. This question makes no sense to me
Homework Answers
Add Answer to:
Please show all steps. This question makes no sense to
me
We were unable to transcribe...
which of these circuits are equivalent to the figure? Part A Find the currents through each...
which of these circuits are
equivalent to the figure?

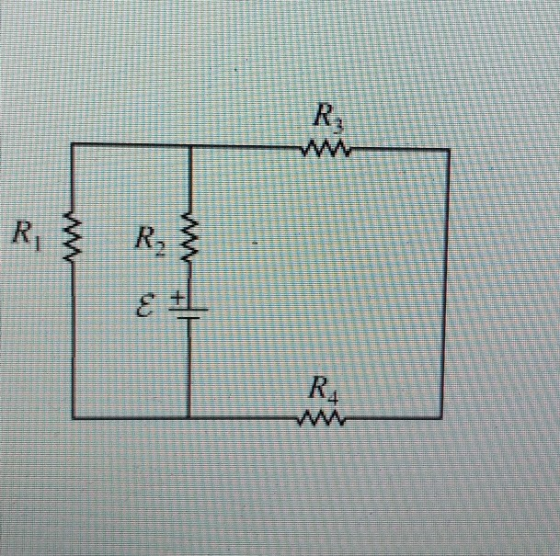

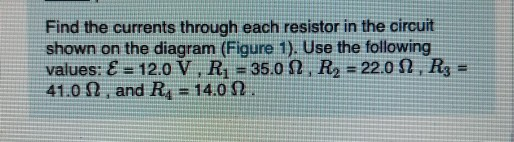

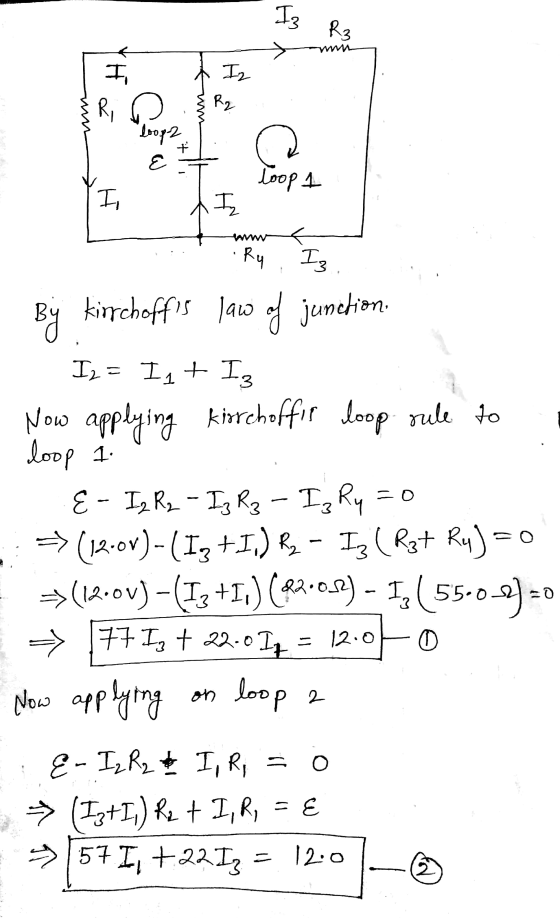

Part A Find the currents through each resistor in the circuit shown on the diagram (Figure 1). Use the following values: E = 12.0 V, R1 = 35.0 N2 , R2 = 22.0 N2 , R3 = 41.0 12 , and R4 = 14.02. The circuit drawing is already given in the problem introduction. However, you can redraw this circuit to make it easier to reduce to a circuit with a...
Only have one try left, please help me out with this question ASAP + V R1...
Only have one try left, please help me out with this question
ASAP
+ V R1 R2 + R3 + V3 Calculate the magnitude of the current through Ry. Start by placing on each resistor Ry, Ry and R3 an arrow showing the direction of the currents h, 12 and 13. R1 = 13.00, R2 = 7.000, R3 = 13.00, V1 = 36.0 V, V2 = 35.0 V, and V3 = 20.0 V. Magnitude of current through R2:
Part II: Wheatstone Bridge Procedure: 1) Before connecting the circuit, use the multi...
Part
II: Wheatstone Bridge
Procedure:
1) Before connecting the
circuit, use the multimeter as an ohmeter to verify the values of
all the resistances. Use the voltmeter measure the terminal voltage
of the battery. Use these measured values in all calculations.
R1 = 100 Ω
R2 = 200 Ω
R3 = 300 Ω
R4 = 200 Ω
R5 = 20 Ω
ξ = 6 V
Connect the circuit shown using
the multimeter as the ammeter.
2) Use a voltmeter to...
Consider the circuit shown in the figure, where 1 = 21.7 V, 2 = 14.3 V,...
Consider the circuit shown in
the figure, where 1 = 21.7 V,
2 = 14.3 V,
and R = 12.0 Ω.
I'm not sure I understand Kirchhoff's Law and how to apply it to
a problem like this.
Consider the circuit shown in the figure, where & - 21.7 V, E- 14.3 V, and R 12.00. (Due to the nature of this problem, do not use rounded intermediate values in your calculations-including answers submitted in WebAssign.) 28.0 12.0 (a What...
Please help me solve for Calculations table 2 using the values in Data Table 2, not...
Please help me solve for Calculations table 2 using the values
in Data Table 2, not the diagram the set up is shown in figure34-4.
Thank you
34 LABORATORY 3 4 Kirchhoff's Rules LABORATORY REPORT Data Table 1 Power Supply Voltages V 5.00 V & =_10.00 Calculations Table 1 Kirchhoffs rules for the circuit (1) KCR- (2) KVR1- (3) KVR2- E2 Theoretical Current (mA) % Error Experimental to Theoretical Current Resistor Values (9) Ri= 462 R2= 750 R3 = 1008...
please show step by step and correct solution as well as equations used to solve this,...
please show step by step and correct solution as well as equations
used to solve this, thanks!! help with all parts (a,b and c)
please. thanks.
Problem 21.77 Consider an RC circuit with € = 12.0 V,R=185 12, and C = 45.8 uF. We were unable to transcribe this imageWe were unable to transcribe this image
Please help me answer this 3-part question based on the information that follows, showing work when...
Please help me answer this 3-part question based on the
information that follows, showing work when helpful:
a. What is the effective resistance of the resistors you
used for number 3?
b. Which of your measurements had the smallest relative
uncertainty?
c. Batteries have an internal resistance, which we have
not considered in the lab. How would the internal resistance of
your battery affected your calculations for part a?
R1=10 KiloOhms, R2=2.2 KiloOhms, R3=1 KiloOhm, E1 and E2 each
equal...
Item 8 In the circuit shown in (Figure 1). E = 66.0 V. R = 4,00...
Item 8 In the circuit shown in (Figure 1). E = 66.0 V. R = 4,00 32 R2 = 6.00 N and R3 = 3.00 12 Figure 1 of 1 W Copyright © 2 We were unable to transcribe this imagePart D For the 4.00 12 resistor, calculate the current through the resistor with S closed. Express your answer with the appropriate units. HÅ ROO? 1 = | Value A Submit Request Answer Part E For the 6.00 12 resistor,...
Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A...
Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A potential difference of 12.0V is maintained between points a and b. Three resistors connected in parallel. The Another circuit with three resistors and a voltage across each resistor is 12.0 V. battery. Is it equivalent to the circuit in (a)? a Ž 3.00 6.00 9.00 3.00 6.00 09.00 (a) Calculate the equivalent resistance of the circuit. SOLUTION Conceptualize Figure (a) shows that we are...
Can you pls show all steps so that I can learn how to do it. Thax....
Can you pls show all steps so that I can learn how to do it.
Thax.
5) In the circuit shown in the figure, four identical resistors Rlabeled A to Da connected to a battery Vas shown. S1 and S2 are switches. Find the amourto current through resistor A if (a) we close both switches> (b) close Si only. (c) 52 only: (d) leave both switches open as shown. What is the greatest current among re these four options? o)...
which of these circuits are
equivalent to the figure?
Part A Find the currents through each resistor in the circuit shown on the diagram (Figure 1). Use the following values: E = 12.0 V, R1 = 35.0 N2 , R2 = 22.0 N2 , R3 = 41.0 12 , and R4 = 14.02. The circuit drawing is already given in the problem introduction. However, you can redraw this circuit to make it easier to reduce to a circuit with a...
Only have one try left, please help me out with this question
ASAP
+ V R1 R2 + R3 + V3 Calculate the magnitude of the current through Ry. Start by placing on each resistor Ry, Ry and R3 an arrow showing the direction of the currents h, 12 and 13. R1 = 13.00, R2 = 7.000, R3 = 13.00, V1 = 36.0 V, V2 = 35.0 V, and V3 = 20.0 V. Magnitude of current through R2:
Part
II: Wheatstone Bridge
Procedure:
1) Before connecting the
circuit, use the multimeter as an ohmeter to verify the values of
all the resistances. Use the voltmeter measure the terminal voltage
of the battery. Use these measured values in all calculations.
R1 = 100 Ω
R2 = 200 Ω
R3 = 300 Ω
R4 = 200 Ω
R5 = 20 Ω
ξ = 6 V
Connect the circuit shown using
the multimeter as the ammeter.
2) Use a voltmeter to...
Consider the circuit shown in
the figure, where 1 = 21.7 V,
2 = 14.3 V,
and R = 12.0 Ω.
I'm not sure I understand Kirchhoff's Law and how to apply it to
a problem like this.
Consider the circuit shown in the figure, where & - 21.7 V, E- 14.3 V, and R 12.00. (Due to the nature of this problem, do not use rounded intermediate values in your calculations-including answers submitted in WebAssign.) 28.0 12.0 (a What...
Please help me solve for Calculations table 2 using the values
in Data Table 2, not the diagram the set up is shown in figure34-4.
Thank you
34 LABORATORY 3 4 Kirchhoff's Rules LABORATORY REPORT Data Table 1 Power Supply Voltages V 5.00 V & =_10.00 Calculations Table 1 Kirchhoffs rules for the circuit (1) KCR- (2) KVR1- (3) KVR2- E2 Theoretical Current (mA) % Error Experimental to Theoretical Current Resistor Values (9) Ri= 462 R2= 750 R3 = 1008...
please show step by step and correct solution as well as equations
used to solve this, thanks!! help with all parts (a,b and c)
please. thanks.
Problem 21.77 Consider an RC circuit with € = 12.0 V,R=185 12, and C = 45.8 uF. We were unable to transcribe this imageWe were unable to transcribe this image
Please help me answer this 3-part question based on the
information that follows, showing work when helpful:
a. What is the effective resistance of the resistors you
used for number 3?
b. Which of your measurements had the smallest relative
uncertainty?
c. Batteries have an internal resistance, which we have
not considered in the lab. How would the internal resistance of
your battery affected your calculations for part a?
R1=10 KiloOhms, R2=2.2 KiloOhms, R3=1 KiloOhm, E1 and E2 each
equal...
Item 8 In the circuit shown in (Figure 1). E = 66.0 V. R = 4,00 32 R2 = 6.00 N and R3 = 3.00 12 Figure 1 of 1 W Copyright © 2 We were unable to transcribe this imagePart D For the 4.00 12 resistor, calculate the current through the resistor with S closed. Express your answer with the appropriate units. HÅ ROO? 1 = | Value A Submit Request Answer Part E For the 6.00 12 resistor,...
Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A potential difference of 12.0V is maintained between points a and b. Three resistors connected in parallel. The Another circuit with three resistors and a voltage across each resistor is 12.0 V. battery. Is it equivalent to the circuit in (a)? a Ž 3.00 6.00 9.00 3.00 6.00 09.00 (a) Calculate the equivalent resistance of the circuit. SOLUTION Conceptualize Figure (a) shows that we are...
Can you pls show all steps so that I can learn how to do it.
Thax.
5) In the circuit shown in the figure, four identical resistors Rlabeled A to Da connected to a battery Vas shown. S1 and S2 are switches. Find the amourto current through resistor A if (a) we close both switches> (b) close Si only. (c) 52 only: (d) leave both switches open as shown. What is the greatest current among re these four options? o)...
