A coin is placed next to the convex side of a thin spherical glass shell having...
A coin is placed next to the convex side of a thin spherical
glass shell having a radius of curvature of 19.0 cm . An image of
the 1.5−cm−tall coin is formed 6.00 cm behind the glass
shell.
1-Where is the coin located?
2-Determine the size of the image.
3-Determine the orientation of the image
4-Determine the nature (real or virtual) of the image.

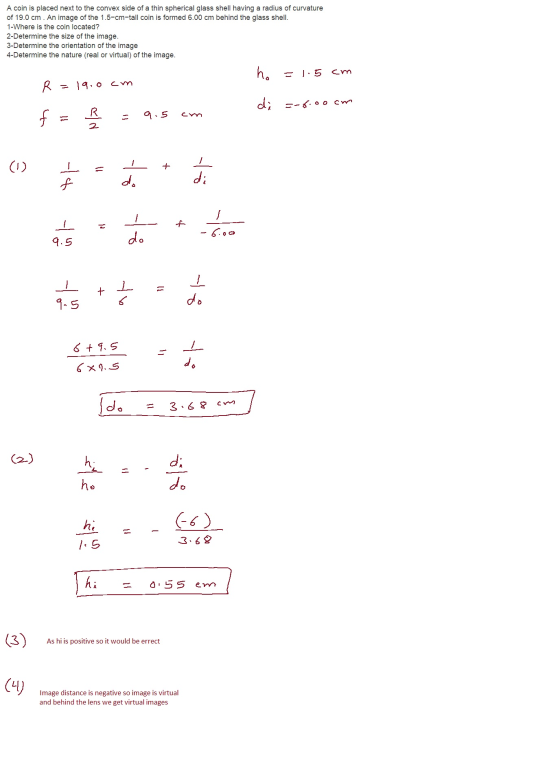

Homework Answers
Use a negative focal length, otherwise Answer #1 follows the right method
