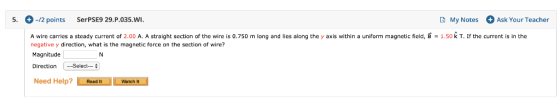

My Notes Ask Your Teacher SerPSE9 29.P.035.WI. -/2 points straight section of the wire is 0.750...
A wire carries a steady current of 2.00 A. A straight section of the wire is...

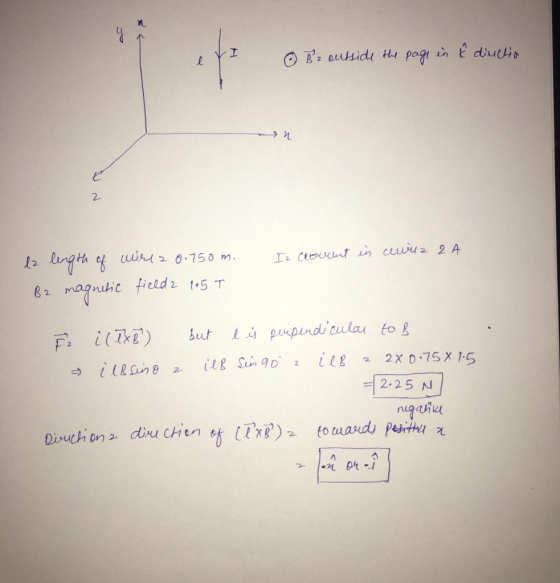

A wire carries a steady current of 2.00 A. A straight section of the wire is 0.750 m long and lies along the y axis within a uniform magnetic field, = 2.00 T. If the current is in the negative y direction, what is the magnetic force on the section of wire? Find magnitude. Already know direction is - x axis thank you
A wire caries a steady current of 2.00 A. A straight section of the wire is...
A wire caries a steady current of 2.00 A. A straight section of the wire is 0.750 m long and lies along the y axis within a uniform magnetic field, B - 2.00 k T. If the current is in the negative y direction, what is the magnetic force on the section of wire? Magnitude Direction -x ㅶ
My Notes -/ 1 points Ask SerPSE9 33.P.035.WI 210 V A series RLC circult has a...
My Notes -/ 1 points Ask SerPSE9 33.P.035.WI 210 V A series RLC circult has a resistance of 44.0 n and an Impedance of 83.0 n. What average power is delivered to this circuit when AV.ms w Noed Help? Read Wech
18.-/4 points SerPSE9 5.P.028.WI 0 My Notes Ask Your Teacher The systems shown below are in...
18.-/4 points SerPSE9 5.P.028.WI 0 My Notes Ask Your Teacher The systems shown below are in equilibrium with m 6.30 kg and 32.0°. If the spring scales are calibrated in newtons, what do they read? Ignore the masses of the pulleys and strings and assume the pulleys and the incline are frictionless. Im In scale in (a):N scale in (b):- N scale in (c): N scale in (d):N Need Help? Watch N
Chapter 29, Problem 035 The figure shows wire 1 in cross section; the wire is long...
Chapter 29, Problem 035 The figure shows wire 1 in cross section; the wire is long and straight, carries a current of 4.08 mA out of the page, and is at distance di = 2.67 cm from a surface. Wire 2, which is parallel to wire 1 and also long, is at horizontal distance d2 = 5.30 cm from wire 1 and carries a current of 6.98 mA into the page. What is the x component of the magnetic force...
A 1.50 m long straight wire lies along the z axis and carries a steady current...
A 1.50 m long straight wire lies along the z axis and carries a steady current in the +z direction. A uniform magnetic field exists everywhere in space and is given by B⃗→ = (3.00 i^ + 4.00 j^) T. If the field exerts a force on the wire of magnitude 60.0 N, find the current carried by the wire.
7. 0/10 points Previous Answers SerPSE9 30.P.038. 2/6 Submissions Used GMy Notes Ask Your Teacher A long, cylindric...
7. 0/10 points Previous Answers SerPSE9 30.P.038. 2/6 Submissions Used GMy Notes Ask Your Teacher A long, cylindrical conductor of radius R carries a current I as shown in the figure below. The current density J, however, is not uniform over the cross- section of the conductor but is a function of the radius according to J 5br, where b is a constant. Find an expression for the magnetic field magnitude B at the following distances, measured from the axis....
4. [-12 Points] DETAILS SERPSET9 30.P.007. MY NOTES ASK YOUR TEACHER PRACTICE ANOTHER A conductor consists...
4. [-12 Points] DETAILS SERPSET9 30.P.007. MY NOTES ASK YOUR TEACHER PRACTICE ANOTHER A conductor consists of a circular loop of radius R = 23.0 cm and two long, straight sections as shown in the figure below. The wire lies in the plane of the screen and carries a current I = 3.80 A. Find the magnetic field at the center of the loop. magnitude NT direction -Select- V R Additional Materials eBook
11. -2 points YF14 28.P.066 My Notes Ask Your Teacher The wire semicircles shown in the...
11. -2 points YF14 28.P.066 My Notes Ask Your Teacher The wire semicircles shown in the figure below have radii a and b. Calculate the net magnetic field (magnitude and direction) that the current in the wires produces at point P. (Use any variable or symbol stated above along with the following as necessary: μ0 and 1 for the current in the wire.) magnitude B = into the page out of the page direction al
7. 1/2 points SerPSE? 25.P 035.soln. My Notes Ask Your Teacher A rod of length L...
7. 1/2 points SerPSE? 25.P 035.soln. My Notes Ask Your Teacher A rod of length L lies along the x axis with its left end at the origin. It has a nonuniform charge density -ax, where a is a positive constant. (a) What are the units of a? (Use SI unit abbreviations as necessary.) units2 In (b) Calculate the electric potential at A. (Use the following as necessary: α, k, L, and d.) Need Help? Talk to a Tutor
A wire caries a steady current of 2.00 A. A straight section of the wire is 0.750 m long and lies along the y axis within a uniform magnetic field, B - 2.00 k T. If the current is in the negative y direction, what is the magnetic force on the section of wire? Magnitude Direction -x ㅶ
My Notes -/ 1 points Ask SerPSE9 33.P.035.WI 210 V A series RLC circult has a resistance of 44.0 n and an Impedance of 83.0 n. What average power is delivered to this circuit when AV.ms w Noed Help? Read Wech
18.-/4 points SerPSE9 5.P.028.WI 0 My Notes Ask Your Teacher The systems shown below are in equilibrium with m 6.30 kg and 32.0°. If the spring scales are calibrated in newtons, what do they read? Ignore the masses of the pulleys and strings and assume the pulleys and the incline are frictionless. Im In scale in (a):N scale in (b):- N scale in (c): N scale in (d):N Need Help? Watch N
Chapter 29, Problem 035 The figure shows wire 1 in cross section; the wire is long and straight, carries a current of 4.08 mA out of the page, and is at distance di = 2.67 cm from a surface. Wire 2, which is parallel to wire 1 and also long, is at horizontal distance d2 = 5.30 cm from wire 1 and carries a current of 6.98 mA into the page. What is the x component of the magnetic force...
7. 0/10 points Previous Answers SerPSE9 30.P.038. 2/6 Submissions Used GMy Notes Ask Your Teacher A long, cylindrical conductor of radius R carries a current I as shown in the figure below. The current density J, however, is not uniform over the cross- section of the conductor but is a function of the radius according to J 5br, where b is a constant. Find an expression for the magnetic field magnitude B at the following distances, measured from the axis....
4. [-12 Points] DETAILS SERPSET9 30.P.007. MY NOTES ASK YOUR TEACHER PRACTICE ANOTHER A conductor consists of a circular loop of radius R = 23.0 cm and two long, straight sections as shown in the figure below. The wire lies in the plane of the screen and carries a current I = 3.80 A. Find the magnetic field at the center of the loop. magnitude NT direction -Select- V R Additional Materials eBook
11. -2 points YF14 28.P.066 My Notes Ask Your Teacher The wire semicircles shown in the figure below have radii a and b. Calculate the net magnetic field (magnitude and direction) that the current in the wires produces at point P. (Use any variable or symbol stated above along with the following as necessary: μ0 and 1 for the current in the wire.) magnitude B = into the page out of the page direction al
7. 1/2 points SerPSE? 25.P 035.soln. My Notes Ask Your Teacher A rod of length L lies along the x axis with its left end at the origin. It has a nonuniform charge density -ax, where a is a positive constant. (a) What are the units of a? (Use SI unit abbreviations as necessary.) units2 In (b) Calculate the electric potential at A. (Use the following as necessary: α, k, L, and d.) Need Help? Talk to a Tutor
