A 1.50 m long straight wire lies along the z axis and carries a steady current...
A 1.50 m long straight wire lies along the z axis and carries a steady current in the +z direction. A uniform magnetic field exists everywhere in space and is given by B⃗→ = (3.00 i^ + 4.00 j^) T. If the field exerts a force on the wire of magnitude 60.0 N, find the current carried by the wire.

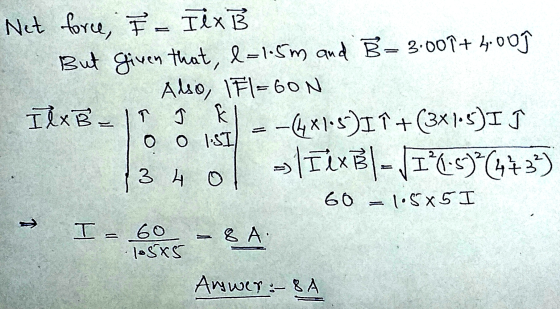

Homework Answers
Add Answer to:
A 1.50 m long straight wire lies along the z axis and
carries a steady current...
A very long straight wire lies along the z axis and carries a current of 200 A in the positive z direction
A very long straight wire lies along the z axis and carries a current of 200 A in the positive z direction. What is the y component of the magnetic field that this wire produces at the point x = 3.00 m, y = 4.00 m, z = 0 (in μT)? BE CAREFUL-The common wrong answers are also listed. (A) 3.90 (B) 4.80 (C) 10.0 (D) 8.00 (E) 5.75 (F) 6.40
A wire 28.0cm long lies along the z-axis and carries a current of 7.20A in the...
A wire 28.0cm long lies along the z-axis and carries a current of 7.20A in the +z-direction. The magnetic field is uniform and has components Bx= -0.236T , By = -0.984T , and Bz = -0.344T . Find the x,y and z component of the magnetic force on the wire AND What is the magnitude of the net magnetic force on the wire??.
A long, straight wire lies along the y-axis and carries a current I = 11 A in the y-direction
A long, straight wire lies along the y-axis and carries a current I = 11 A in the y-direction (see figure. In addition to the magnetic field due to the current in the wire, a uniform magnetic field B0 with magnitude 1.3 x 10-6 T is in the +x-direction. What is the magnitude of the total field at point (c)x = 0, z= -0.21 m? (Give your answer in decimal using "microT" (micro Tesla) as unit )
A wire carries a steady current of 2.00 A. A straight section of the wire is...
A wire carries a steady current of 2.00 A. A straight section of the wire is 0.750 m long and lies along the y axis within a uniform magnetic field, = 2.00 T. If the current is in the negative y direction, what is the magnetic force on the section of wire? Find magnitude. Already know direction is - x axis thank you
A wire 28.0 cm long lies along the z-axis and carries a current of 8.50 A...
A wire 28.0 cm long lies along the z-axis and carries a current of 8.50 A in the +z-direction. The magnetic field is uniform and has components B_x = -0.244 T , B_y= -0.967 T, and B_z = -0.315 T A)Find the x-component of the magnetic force on the wire. B)Find the y-component of the magnetic force on the wire. C)Find the z-component of the magnetic force on the wire. D)What is the magnitude of the net magnetic force on...
A long straight wire lies along the x axis carries a current of 15 amps in...
A long straight wire lies along the x axis carries a current of 15 amps in the position x direction. A second long straight wire lies parallel to the first and carries a current of 20 amps in the negative x direction. They are separated by a distance of 7.00 cm. What is the direction and magnitude of the resultant. magnetic field at a point in the xy plane 4 cm. from the first wire and 3 cm from the second?
A long, straight wire carries a current of 1.7 A in the +z direction and lies...
A long, straight wire carries a current of 1.7 A in the +z direction and lies along the line x = +3.0 cm, y = 0. A second such wire carries a current of 1.7 A in the +z direction and lies along the line x = -3.0 cm, y = 0. Find (a) the magnetic field at a point P on the y axis at y = 6.0 cm (-9.1 x 10-6 T i) and (b) the force between...
One long wire lies along an x axis and carries a current of 30 A in...
One long wire lies along an x axis and carries a current of 30 A in the positive x direction. A second long wire is perpendicular to the xy plane, passes through the point (0, 4 m, 0), and carries a current of 38 A in the positive z direction. What is the magnitude of the resulting magnetic field at the point y = 2.0 m on the y axis? µT
A straight copper wire lies along the x-axis and has current of I = 14.5 A...
A straight copper wire lies along the x-axis and has current of I = 14.5 A running through it in the +x-direction. The wire is in the presence of a uniform magnetic field, perpendicular to the current. There is a magnetic force per unit length on the wire of 0.130 N/m in the −y-direction. (a) What is the magnitude of the magnetic field (in mT) in the region through which the current passes? mT (b) What is the direction of...
A long, straight wire lies along the x-axis and carries current I1 = 2.50 A in the +X-direction. A second wire lies in the xy-plane and is parallel to the x-axis at y = +0.900 m.
A long, straight wire lies along the x-axis and carries current I1 = 2.50 A in the +X-direction. A second wire lies in the xy-plane and is parallel to the x-axis at y = +0.900 m. It carries current 12 = 6.00 A, also in the +3-direction.Part A In addition to y→∞, at what point on the y-axis is the resultant magnetic field of the two wires equal to zero?
