A long straight wire lies along the x axis carries a current of 15 amps in...

A long straight wire lies along the x axis carries a current of 15 amps in the position x direction. A second long straight wire lies parallel to the first and carries a current of 20 amps in the negative x direction. They are separated by a distance of 7.00 cm.  What is the direction and magnitude of the resultant. magnetic field at a point in the xy plane 4 cm. from the first wire and 3 cm from the second?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

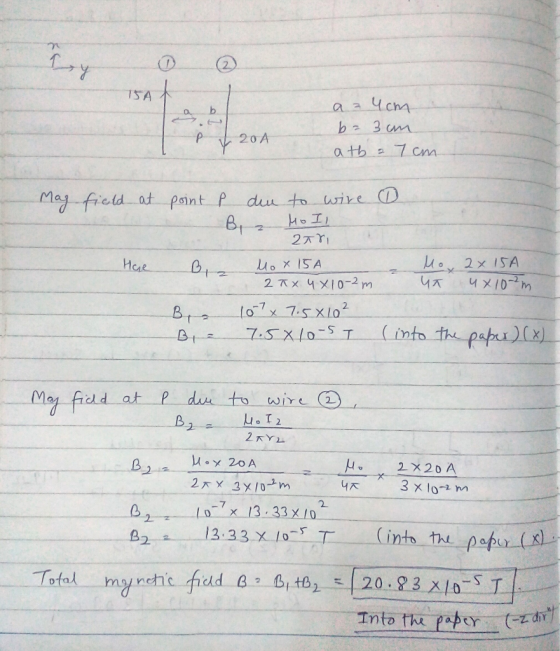

Answer #1

0 0
Add a comment
