A long, straight wire lies along the x-axis and carries current I = 60.0 A in the +x-direction

A long, straight wire lies along the x-axis and carries current I = 60.0 A in the +x-direction. A small particle with mass 3.00 x 10-6 kg and charge 8.00 x 10-3 C is traveling in the vicinity of the wire. At an instant when the particle is on the y-axis at y = 7.00 cm, its acceleration has components ax = -5.00 x 103 m/s2 and ay = +9.00 x 103 m/s2.


Part A

At that instant what are the x- and y-components of the velocity of the particle?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

✔ Recommended Answer

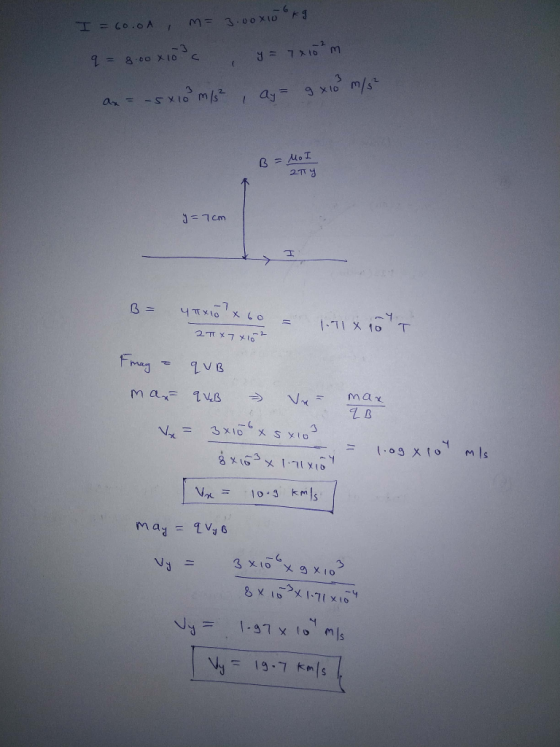

Answer #1

3 4
