A straight wire carries a current of 10 A at an angle of 30* with respect...

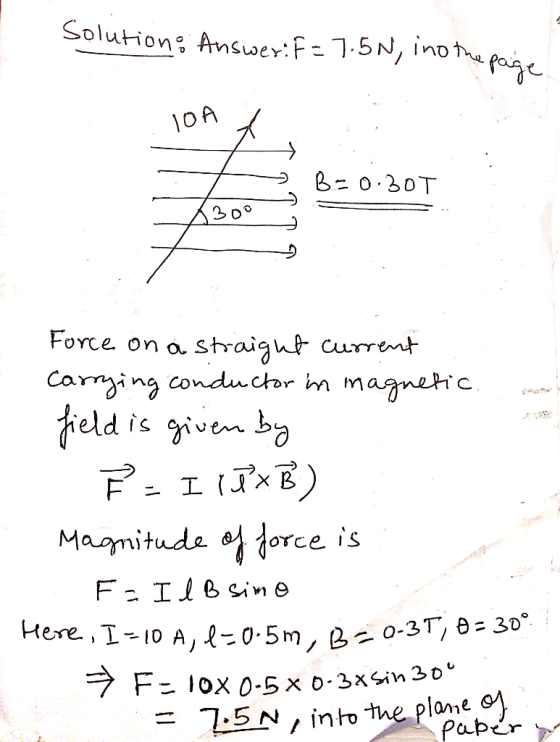

A straight wire carries a current of 10 A at an angle of 30* with respect to the direction of a uniform 0.30 T magnetic field. Find the angle the magnitude of the magnetic force on a 0.50 m length of the wire.
Homework Answers
Add Answer to:
A straight wire carries a current of 10 A at an angle of 30*
with respect...
A wire of length 1.0 meter carries a current of 10 amps and makes an angle...
A wire of length 1.0 meter carries a current of 10 amps and makes an angle of 30 degree with a uniform magnetic field of magnitude B = 1.5 T. Calculate the magnitude and direction of the force on the wire.
10. A wire bent at a right angle carries a current I = 3.0 A, as...
10. A wire bent at a right angle carries a current I = 3.0 A, as shown below. The length of each straight side of the wire is 2.0 m, as shown. 2.0 m I = 3.0 A I = 3.0 A 2.0 m If this wire is in a region where there is a uniform magnetic field B =-(2.0 T) k , find the net magnetic force exerted on the wire. (Give this force in component form.) (10 pts)
A wire carries a steady current of 2.00 A. A straight section of the wire is...
A wire carries a steady current of 2.00 A. A straight section of the wire is 0.750 m long and lies along the y axis within a uniform magnetic field, = 2.00 T. If the current is in the negative y direction, what is the magnetic force on the section of wire? Find magnitude. Already know direction is - x axis thank you
A wire carries a current of 0.80 A. This wire makes an angle of 51° with...
A wire carries a current of 0.80 A. This wire makes an angle of 51° with respect to a magnetic field of magnitude 4.2 × 10-5 T. The wire experiences a magnetic force of magnitude 7.2 × 10-5 N. What is the length of the wire?
A straight wire segment of length L makes an angle of 17.0 degrees with respect to...
A straight wire segment of length L makes an angle of
17.0 degrees with respect to the x axis. The wire carries
a current of 7.30 A in the direction shown in the figure. There is
a magnetic field in the vicinity of the wire which points in the
negative z direction with a magnitude given by
B=B0(x/L)^2,
whereB0=620 T and
L=361 m.
What is the y component of the force on the wire
segment?
If the wire is free...
A straight wire carries a 42.7 A current in a uniform magnetic field (magnitude = 83...
A straight wire carries a 42.7 A current in a uniform magnetic field (magnitude = 83 mT). If the force per unit length on this wire is 2.4 N/m, determine the angle between the wire and the magnetic field
A straight wire of length 0.5 m carries a current of 5 A in the positive...
A straight wire of length 0.5 m carries a current of 5 A in the positive x direction lying in a uniform magnetic field B = ( 0.9 j – 0.4 k) T. Find the magnetic force exerted on the wire.
A long straight wire sits on the z-axis and carries a current of 2.92 amps in...
A long straight wire sits on the z-axis and carries a current of 2.92 amps in the positive z direction. A uniform external magnetic field of 8.08 T points in a direction that makes an angle of 39.5 degrees with the wire. Find the magnitude of the force on the section of wire that runs from z = 0 m to z = 6.79 m. Answer in units of N.
A straight wire segment of length L makes an angle of 46.0 degrees with respect to...
A straight wire segment of length L makes an angle of 46.0 degrees with respect to the x axis. The wire carries a current of 5.90 A in the direction shown in the figure. There is a magnetic field in the vicinity of the wire which points in the negative z direction with a magnitude given by What is the y component of the force on the wire segment?
A wire carries a current of 7.0 A in a direction that makes an angle of...
A wire carries a current of 7.0 A in a direction that makes an angle of 33.0° with the direction of a magnetic field of strength 0.200 T. Find the magnetic force on a 3.00 m length of the wire.
A wire of length 1.0 meter carries a current of 10 amps and makes an angle of 30 degree with a uniform magnetic field of magnitude B = 1.5 T. Calculate the magnitude and direction of the force on the wire.
10. A wire bent at a right angle carries a current I = 3.0 A, as shown below. The length of each straight side of the wire is 2.0 m, as shown. 2.0 m I = 3.0 A I = 3.0 A 2.0 m If this wire is in a region where there is a uniform magnetic field B =-(2.0 T) k , find the net magnetic force exerted on the wire. (Give this force in component form.) (10 pts)
A straight wire segment of length L makes an angle of 46.0 degrees with respect to the x axis. The wire carries a current of 5.90 A in the direction shown in the figure. There is a magnetic field in the vicinity of the wire which points in the negative z direction with a magnitude given by What is the y component of the force on the wire segment?
