Homework Answers

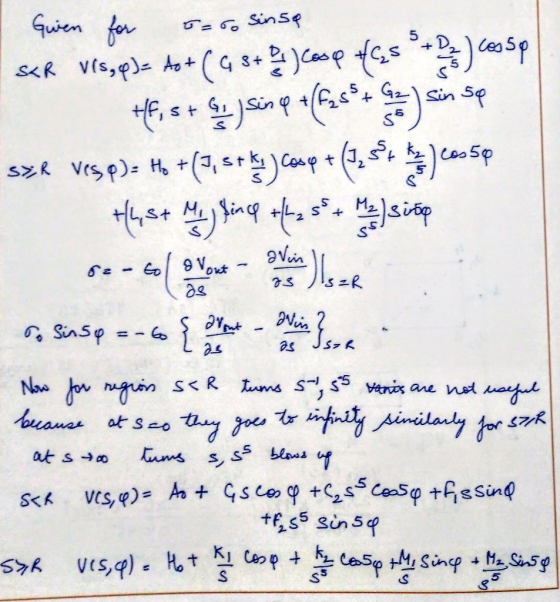

please upvote ? if you like my answer ?

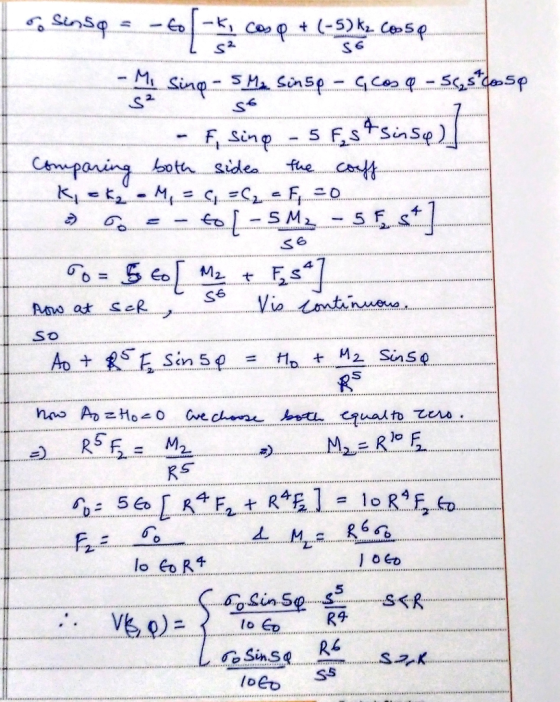

![56 o senso -o las cosp + (-5) k. cose Sing - 5 Ma Sensp - Gcos Q - Sesidesp - F, sino - 5 Fistsinspe] [ Comparing both sides](http://img.homeworklib.com/questions/b292ec20-0014-11ec-8118-a10db5d6d3c5.png?x-oss-process=image/resize,w_560)
Add Answer to:

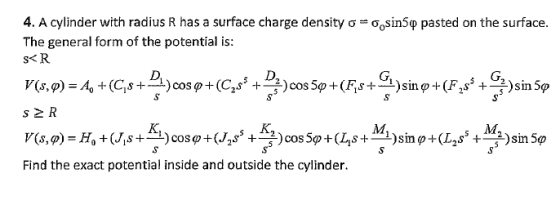

4. A cylinder with radius R has a surface charge density o osin5p pasted on the...
6. An infinite cylinder of radius R has a uniform charge density of p in its...
6. An infinite cylinder of radius R has a uniform charge density of p in its interior, and a surface charge density of -pR on its surface. Find the electric field everywhere inside and outside the cylinder. Be clear about both the magnitude and direction of the field.
Given: Charge is uniformly distributed with charge density ρ inside a very long cylinder of radius...
Given: Charge is uniformly distributed with charge density ρ inside a very long cylinder of radius R. Part A: Find the potential difference between the surface and the axis of the cylinder. V(surface)-V(axis)= ???
1. A very long, uniformly charged cylinder has radius R and charge density p. Determine the...
1. A very long, uniformly charged cylinder has radius R and charge density \rho. Determine the electric field of this cylinder inside (r<R) and outside (r>R)2. A large, flat, nonconducting surface carries a uniform surface charge density σ. A small circular hole of radius R has been cut in the middle of the sheet. Determine the electric field at a distance z directly above the center of the hole.3. You have a solid, nonconducting sphere that is inside of, and...
(1) Consider a very long uniformly charged cylinder with volume charge density p and radius R...
(1) Consider a very long uniformly charged cylinder with volume charge density p and radius R (we can consider the cylinder as infinitely long). Use Gauss's law to find the electric field produced inside and outside the cylinder. Check that the electric field that you calculate inside and outside the cylinder takes the same value at a distance R from the symmetry axis of the cylinder (on the surface of the cylinder) .
ery long dielectric cylinder of radius a and dielectric constant er is placed in a field Eo perpendicular to its A v axis. The electric potential inside the cylinder is r in and the electric potentia...
ery long dielectric cylinder of radius a and dielectric constant er is placed in a field Eo perpendicular to its A v axis. The electric potential inside the cylinder is r in and the electric potential outside the cylinder is The electric field inside of the cylinder is and the electric field outside the cylinder is n11 out-_E Find the surface charge density and take the cylinder axis to be the z-axis and take Eo - Eo
ery long dielectric...
You have long solid cylinder of radius R and charge density p (charge per unit volume)....
You have long solid cylinder of radius R and charge density p (charge per unit volume). (a) Find electric potential V(r) at distance r < R from the axis of the cylinder. (b) Find electric potential V (r) outside the cylinder at distance r > R. (c) sketch a graph of the electric potential V (r) as a function of r, from r = 0 to r = 4R, with r along the horizontal axis of the graph.
L(a) A long (L>> a) cylinder in vacuum has a line charge density p is shown...
L(a) A long (L>> a) cylinder in vacuum has a line charge density p is shown below, (). State the Gauss's law for electric field in words. [1) (i). In order to calculate the electric field inside the cylinder using Gauss's Law, draw an appropriate Gaussian surface in the cylinder. [1] (i). Use the above information or otherwise, show that the electric field in the radial direction Pt inside the cylinder is ,2a (assume that the charge is evenly distributed...
5. A hollow sphere of radius R has a potential on the surface of V(θ, d)...
5. A hollow sphere of radius R has a potential on the surface of V(θ, d) Vo cos θ. There is no a) Find the potential everywhere inside and outside the sphere. b) Find the electric field everywhere inside the sphere. (You will find it easier to convert the potential to Cartesian coordinates and then find the field.) c) Find the charge density σ(0) on the surface of the sphere using Gauss' law. charge inside or outside the sphere.
6. An infinite cylinder of radius R has a uniform charge density of ρ in its...
6. An infinite cylinder of radius R has a uniform charge density of ρ in its interior, and a surface charge side and outside the cylinder. Be density of -pR on its surface. Find the electric field everywhere in clear about both the magnitude and direction of the field.
2) A surface charge density o=0, cos is distributed on a spherical shell of radius R....
2) A surface charge density o=0, cos is distributed on a spherical shell of radius R. i) (20 points) Calculate the electric potential outside the sphere using the solution of Laplace equation. ii) (20 points) Find the electric potential using the definition of scalar potential.
6. An infinite cylinder of radius R has a uniform charge density of p in its interior, and a surface charge density of -pR on its surface. Find the electric field everywhere inside and outside the cylinder. Be clear about both the magnitude and direction of the field.
ery long dielectric cylinder of radius a and dielectric constant er is placed in a field Eo perpendicular to its A v axis. The electric potential inside the cylinder is r in and the electric potential outside the cylinder is The electric field inside of the cylinder is and the electric field outside the cylinder is n11 out-_E Find the surface charge density and take the cylinder axis to be the z-axis and take Eo - Eo
ery long dielectric...
L(a) A long (L>> a) cylinder in vacuum has a line charge density p is shown below, (). State the Gauss's law for electric field in words. [1) (i). In order to calculate the electric field inside the cylinder using Gauss's Law, draw an appropriate Gaussian surface in the cylinder. [1] (i). Use the above information or otherwise, show that the electric field in the radial direction Pt inside the cylinder is ,2a (assume that the charge is evenly distributed...
5. A hollow sphere of radius R has a potential on the surface of V(θ, d) Vo cos θ. There is no a) Find the potential everywhere inside and outside the sphere. b) Find the electric field everywhere inside the sphere. (You will find it easier to convert the potential to Cartesian coordinates and then find the field.) c) Find the charge density σ(0) on the surface of the sphere using Gauss' law. charge inside or outside the sphere.
6. An infinite cylinder of radius R has a uniform charge density of ρ in its interior, and a surface charge side and outside the cylinder. Be density of -pR on its surface. Find the electric field everywhere in clear about both the magnitude and direction of the field.
2) A surface charge density o=0, cos is distributed on a spherical shell of radius R. i) (20 points) Calculate the electric potential outside the sphere using the solution of Laplace equation. ii) (20 points) Find the electric potential using the definition of scalar potential.
