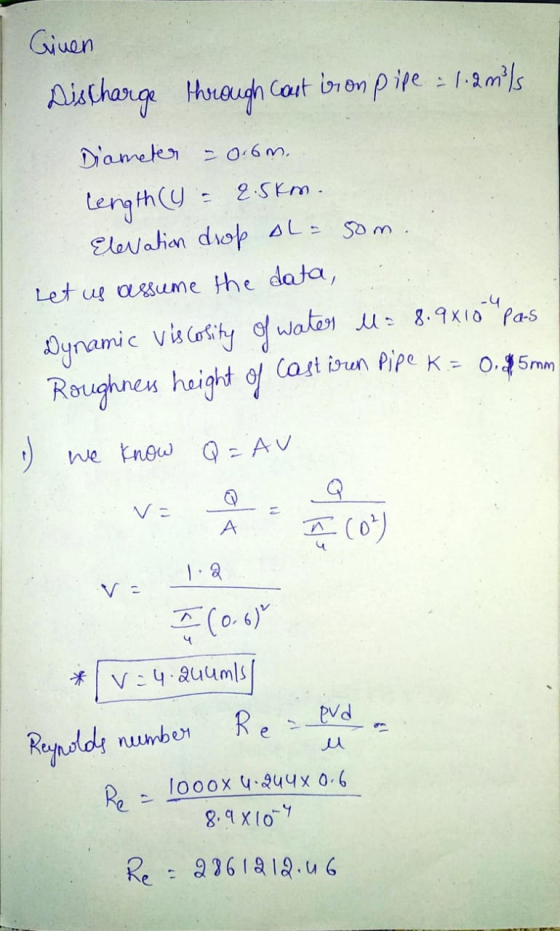

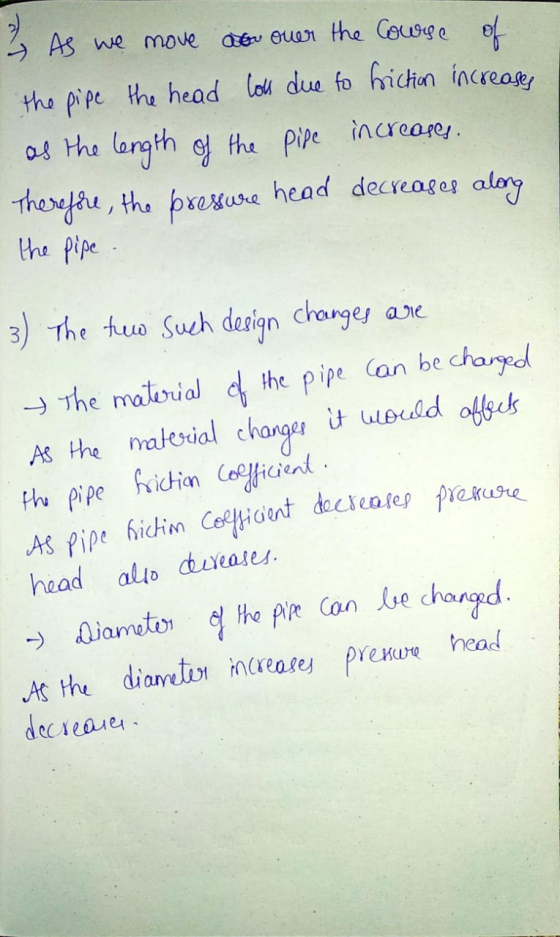

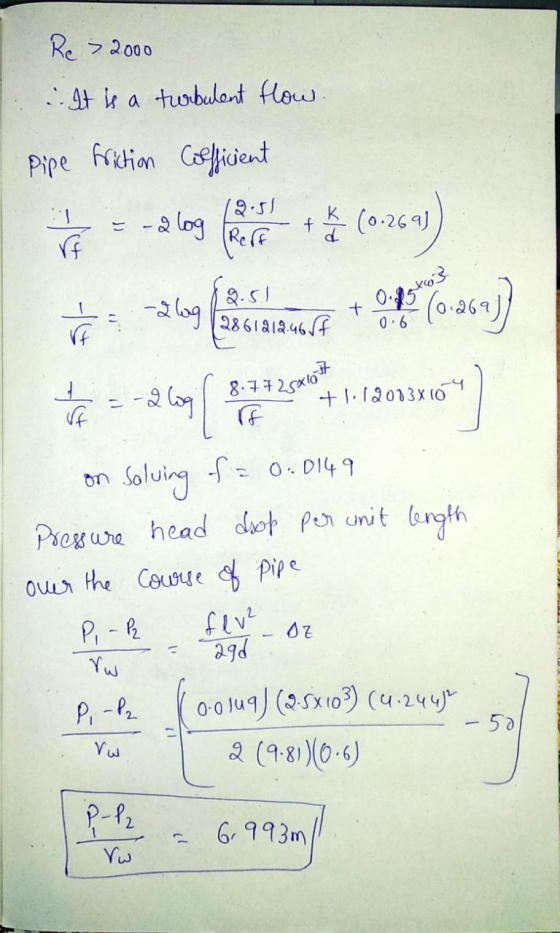

![Problem 4 (25 points) Water flows through a cast iron pipe at 1.2 2.5[km) long with an elevation drop of 50[m]. . The pipe ha](http://img.homeworklib.com/questions/422207a0-009a-11ec-809c-a1ef5b4e37ff.png?x-oss-process=image/resize,w_560)
Homework Answers
Add Answer to:
Hydraulics
Problem 4 (25 points) Water flows through a cast iron pipe at 1.2 2.5[km) long...
Hydraulics ( CE322 ) Q1:(10 marks A 200mm diameter, 1.2 km long galvanized iron pipe (e...
Hydraulics ( CE322 )
Q1:(10 marks A 200mm diameter, 1.2 km long galvanized iron pipe (e -0.15mm) conveys water flow between two reservoirs which have a difference in water surface elevation of 12.0 m. The pipe exit and entrance are square edge. Calculate the flow rate Q (m/s). 02:(10 marks) Calculate the head losses and the corrected flows in the various pipes of a distribution network as shown in figure. Assume that minor losses can be neglected. .30u 120ls 40...
Please solve a,b,c,d,e,f 1) A water fountain is to be installed at a remote location by attaching a cast iron pipe directly to a water main through which water is flowing. The entrance to the pipe...
Please solve a,b,c,d,e,f
1) A water fountain is to be installed at a remote location by attaching a cast iron pipe directly to a water main through which water is flowing. The entrance to the pipe is sharp-edged 15m (K-0.5), and the 15m long piping system involves three 90 bends without vanes (K1.1), a fully open gate valve (K.-0.2), and a fully open angle valve (K-5). If the diameter of the pipe is 2 em and the system is to...
Question 3 s points Save Angup Water flows from left reservoir to right reservoir in a...
Question 3 s points Save Angup Water flows from left reservoir to right reservoir in a 5 cm diameter pipe system as shown in the figure. The pipe is made out of cast iron which has a sand roughness of 0.26 mm. Discharge in the pipe system is given as 0.006 m/s. Dynamic viscosity of water is 13 x 103 kg/m.s. Density of water is 1000 kg/m2. Neglect sudden expansion/contraction. Neglect minor head losses. Determine the elevation at point 1...
this is all of the information given Problem 3. A piping system consists of 1200 m...
this is all of the information given
Problem 3. A piping system consists of 1200 m of 5 cm diameter cast-iron pipe, two 45° and four 90° flanged long-radius elbows, a fully open flanged globe valve, and a sharp submerged exit into a reservoir. The elevation of the outlet relative to the inlet is 100 m. What gage pressure is required at the inlet to deliver 0.005 m2/s of water at 20°C into the reservoir? Assume that the density and...
Problem 4 (50 points) water is discharged from a reservoir at a rate of 18.103 m2/s using two horizontal cast iron pipes nected in series and a pump between them. The first pipe is 20 m long and...
Problem 4 (50 points) water is discharged from a reservoir at a rate of 18.103 m2/s using two horizontal cast iron pipes nected in series and a pump between them. The first pipe is 20 m long and has a 6-cm diameter, while the second pipe is 35 m long and has a 4-cm diameter. The water level in the reservoir is 30 m above the centerline of the pipe. The pipe entrance is sharp-edged. Losses associated with the connection...
Problem 3 (30): Steam at Too,1 340 °C flows in a cast iron pipe [k- 80 W/m.°C] whose inner and outer diameter are Di 6 cm and D2 -8 cm, respectively. The pipe is covered with a 4-cm thick glass wool...
Problem 3 (30): Steam at Too,1 340 °C flows in a cast iron pipe [k- 80 W/m.°C] whose inner and outer diameter are Di 6 cm and D2 -8 cm, respectively. The pipe is covered with a 4-cm thick glass wool insulation [k-0.05 W/ m°C]. Heat is lost to the surroundings at Too,2 - 21°C by natural convection and radiation, with a combined heat transfer coefficient of h- 18 W/m2 °C. Taking the heat transfer coefficient inside the pipe to...
4. An old, rough-surfaced, 2-m-diameter concrete pipe with a Manning coefficient of 0.025 carries water at...
4. An old, rough-surfaced, 2-m-diameter concrete pipe with a Manning coefficient of 0.025 carries water at a rate of 5.0 m'/s when it is half ful. This pipe is to be replaced by a new smooth pipe with a Manning coefficient of 0.012. Determine the diameter of the new pipe if it also is to flow half full with a flow rate of 5.0 m'/s Water initially flowing in the horizontal section of pipe of diameter 12.00 cm shown in...
Write down your analysis of this case on factors like the interests involved, context and power...
Write down your analysis of this case on factors like the interests involved, context and power PACIFIC OIL COMPANY (A)* "Look, you asked for my advice, and I gave it to you," Frank Kelsey said. "If I were you, I wouldn't make any more concessions! I really don't think you ought to agree to their last demand! But you're the one who has to live with the contract, not me!" Static on the transatlantic telephone connection obscured Jean Fontaine's reply....
Write down your analysis of this case on factors like 1. the negotiation process, strategy and...
Write down your analysis of this case on factors like 1. the negotiation process, strategy and tactics PACIFIC OIL COMPANY (A)* "Look, you asked for my advice, and I gave it to you," Frank Kelsey said. "If I were you, I wouldn't make any more concessions! I really don't think you ought to agree to their last demand! But you're the one who has to live with the contract, not me!" Static on the transatlantic telephone connection obscured Jean Fontaine's...
Hydraulics ( CE322 )
Q1:(10 marks A 200mm diameter, 1.2 km long galvanized iron pipe (e -0.15mm) conveys water flow between two reservoirs which have a difference in water surface elevation of 12.0 m. The pipe exit and entrance are square edge. Calculate the flow rate Q (m/s). 02:(10 marks) Calculate the head losses and the corrected flows in the various pipes of a distribution network as shown in figure. Assume that minor losses can be neglected. .30u 120ls 40...
Please solve a,b,c,d,e,f
1) A water fountain is to be installed at a remote location by attaching a cast iron pipe directly to a water main through which water is flowing. The entrance to the pipe is sharp-edged 15m (K-0.5), and the 15m long piping system involves three 90 bends without vanes (K1.1), a fully open gate valve (K.-0.2), and a fully open angle valve (K-5). If the diameter of the pipe is 2 em and the system is to...
Question 3 s points Save Angup Water flows from left reservoir to right reservoir in a 5 cm diameter pipe system as shown in the figure. The pipe is made out of cast iron which has a sand roughness of 0.26 mm. Discharge in the pipe system is given as 0.006 m/s. Dynamic viscosity of water is 13 x 103 kg/m.s. Density of water is 1000 kg/m2. Neglect sudden expansion/contraction. Neglect minor head losses. Determine the elevation at point 1...
this is all of the information given
Problem 3. A piping system consists of 1200 m of 5 cm diameter cast-iron pipe, two 45° and four 90° flanged long-radius elbows, a fully open flanged globe valve, and a sharp submerged exit into a reservoir. The elevation of the outlet relative to the inlet is 100 m. What gage pressure is required at the inlet to deliver 0.005 m2/s of water at 20°C into the reservoir? Assume that the density and...
Problem 4 (50 points) water is discharged from a reservoir at a rate of 18.103 m2/s using two horizontal cast iron pipes nected in series and a pump between them. The first pipe is 20 m long and has a 6-cm diameter, while the second pipe is 35 m long and has a 4-cm diameter. The water level in the reservoir is 30 m above the centerline of the pipe. The pipe entrance is sharp-edged. Losses associated with the connection...
Problem 3 (30): Steam at Too,1 340 °C flows in a cast iron pipe [k- 80 W/m.°C] whose inner and outer diameter are Di 6 cm and D2 -8 cm, respectively. The pipe is covered with a 4-cm thick glass wool insulation [k-0.05 W/ m°C]. Heat is lost to the surroundings at Too,2 - 21°C by natural convection and radiation, with a combined heat transfer coefficient of h- 18 W/m2 °C. Taking the heat transfer coefficient inside the pipe to...
4. An old, rough-surfaced, 2-m-diameter concrete pipe with a Manning coefficient of 0.025 carries water at a rate of 5.0 m'/s when it is half ful. This pipe is to be replaced by a new smooth pipe with a Manning coefficient of 0.012. Determine the diameter of the new pipe if it also is to flow half full with a flow rate of 5.0 m'/s Water initially flowing in the horizontal section of pipe of diameter 12.00 cm shown in...
