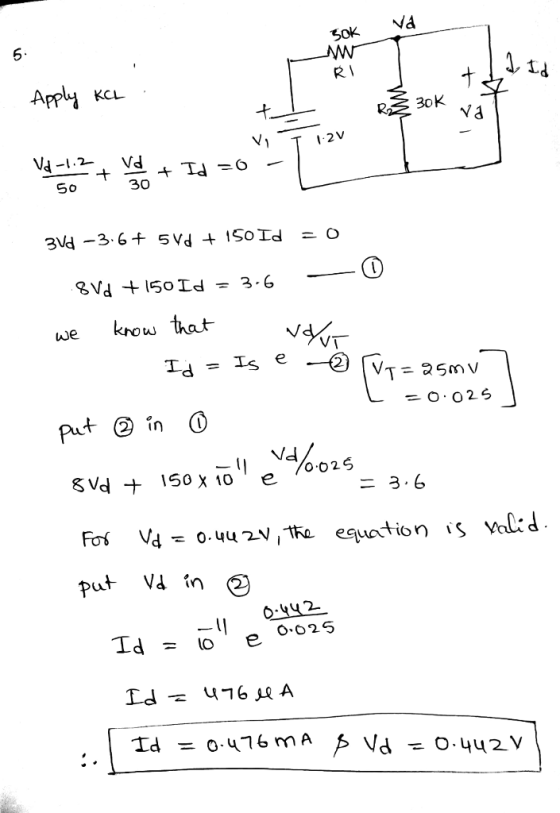

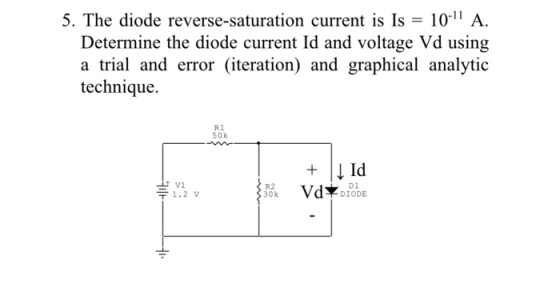

5. The diode reverse-saturation current is Is 1011 A Determine the diode current Id and voltage...
The diode in the circuit below has a saturation current Is-10-13 A and n=1. Its ID-VD...
The diode in the circuit below has a saturation current Is-10-13 A and n=1. Its ID-VD curve is illustrated below for your convenience. Problem 2 a) Using the graphical method, determine the value of R that would result in a diode current Ip -4mA. What is the resulting voltage Vp? b) With R as calculated above, a sinusoidal signal v, 100 sin(cot) mV is superimposed on the DC source. Draw the small signal model and find the output voltage across...
Problem 2 The diode in the circuit below has a saturation current Is = 10-13 A...
Problem 2 The diode in the circuit below has a saturation current Is = 10-13 A and n=1. Its ID-VD curve is illustrated below for your convenience. a) Using the graphical method, determine the value of R that would result in a diode current Ip 4mA. What is the resulting voltage Vp? b) With R as calculated above, a sinusoidal signal v, 100 sin(ot) mV is superimposed on the DC source. Draw the small signal model and find the output...
Answer with clear writing please 5. Consider an idealized diode with a reverse saturation current 0.01...
Answer with clear writing please
5. Consider an idealized diode with a reverse saturation current 0.01 mA and an abrupt turn-on voltage of 0.7 V (assume no breakdown and operation away from the knee of the diode curve). For the circuit shown, both resistors are 100 Ω, the constant source is VP-7.0 V, and the time- dependent source is Vs 24 sin() V. Calculate (a) the peak positive voltage V and the associated current through the diode and (b) the...
Part IIl: Diodes The Ideal-Diode Model a) For the circuit below, find ID and VD for the case VDD 5 V and R 10 k2. Assum...
Part IIl: Diodes The Ideal-Diode Model a) For the circuit below, find ID and VD for the case VDD 5 V and R 10 k2. Assume that the diode has a voltage of 0.7 V at 1-mA current. Use (a) iteration and (b) the constant-voltage-drop model with VD 0.7 V 홍Yo b) Design the circuit below to provide an output voltage of 2.4 V. Assume that the diodes available have 0.7-V drop at 1 mA. +10 V Vo
Part IIl:...
D Question 7 1 pts A diode has a reverse saturation current of 10 pA and...
D Question 7 1 pts A diode has a reverse saturation current of 10 pA and has n-1 and is operating at room temperature. Find the voltage drop in volts at a current of 4 mA D Question 8 1 pts A diode has n 1 and is operating at room temperature. When carrying a current of 14 mA the terminal voltage is measured at 0.65 V. What is the saturation current in pA? DQuestion9 1 pts A diode has...
ELTR 197 Analog Determine whether each silicon diode is forward or reverse biased. a) 1. b)...
ELTR 197 Analog Determine whether each silicon diode is forward or reverse biased. a) 1. b) 10ka 100V B) Forward Bia sE OForwod Biase 5600 5V 8V d) 10KO 10ka 1.0kn $1.5kn -20V 10V -30V 4.7ka 4.7kQ 2. Using the practical diode model, determine the values of VR1, Vr2, and Vo. Vo R1 4 k7 D1 hika 22KS) R2 10V Via- 5V 13 -n the forward current of a diode with 1. Determine whether each silicon diode is forward or...
1. The reverse current in a diode has a value of 71.8 nA when the reverse...
1. The reverse current in a diode has a value of 71.8 nA when the reverse voltage across the diode is 324.99 V. If the breakdown voltage of the diode is 325 V, and its saturation current is 11.0 pA, calculate the value of n for this diode. Ans. (2-12 Bogart) n 4.979 2. For the circuit below with silicon diodes, which diodes are forward-biased and which are revers- biased? Is current flowing through the resistor? If so, draw a...
The source voltage V1 = 10 V dc . Find the diode current using the iterative...
The source voltage V1 = 10 V dc . Find the diode current using
the iterative technique discussed in clas s. Assume the diode has V
D =0.7 V at I D =2 mA and V T =25 mV . Perform two iterations only.
Then calculate the percentage difference between the I D and V D of
it eration 2 and the same values from iteration 1 using iteration 1
values as the reference.
out R1 Vout 1K W1
Determine diode voltage(Vd) and load current(IL) of the circuit below 1. Determine diode voltagelvp) and load...
Determine diode voltage(Vd) and load current(IL) of the circuit
below
1. Determine diode voltagelvp) and load currentli) of the circuit below. + VD - 5 Ω Ν. 310 Ω οι ξon , 6V
The diode in the circuit below has a saturation current Is-10-13 A and n=1. Its ID-VD curve is illustrated below for your convenience. Problem 2 a) Using the graphical method, determine the value of R that would result in a diode current Ip -4mA. What is the resulting voltage Vp? b) With R as calculated above, a sinusoidal signal v, 100 sin(cot) mV is superimposed on the DC source. Draw the small signal model and find the output voltage across...
Problem 2 The diode in the circuit below has a saturation current Is = 10-13 A and n=1. Its ID-VD curve is illustrated below for your convenience. a) Using the graphical method, determine the value of R that would result in a diode current Ip 4mA. What is the resulting voltage Vp? b) With R as calculated above, a sinusoidal signal v, 100 sin(ot) mV is superimposed on the DC source. Draw the small signal model and find the output...
Answer with clear writing please
5. Consider an idealized diode with a reverse saturation current 0.01 mA and an abrupt turn-on voltage of 0.7 V (assume no breakdown and operation away from the knee of the diode curve). For the circuit shown, both resistors are 100 Ω, the constant source is VP-7.0 V, and the time- dependent source is Vs 24 sin() V. Calculate (a) the peak positive voltage V and the associated current through the diode and (b) the...
Part IIl: Diodes The Ideal-Diode Model a) For the circuit below, find ID and VD for the case VDD 5 V and R 10 k2. Assume that the diode has a voltage of 0.7 V at 1-mA current. Use (a) iteration and (b) the constant-voltage-drop model with VD 0.7 V 홍Yo b) Design the circuit below to provide an output voltage of 2.4 V. Assume that the diodes available have 0.7-V drop at 1 mA. +10 V Vo
Part IIl:...
D Question 7 1 pts A diode has a reverse saturation current of 10 pA and has n-1 and is operating at room temperature. Find the voltage drop in volts at a current of 4 mA D Question 8 1 pts A diode has n 1 and is operating at room temperature. When carrying a current of 14 mA the terminal voltage is measured at 0.65 V. What is the saturation current in pA? DQuestion9 1 pts A diode has...
ELTR 197 Analog Determine whether each silicon diode is forward or reverse biased. a) 1. b) 10ka 100V B) Forward Bia sE OForwod Biase 5600 5V 8V d) 10KO 10ka 1.0kn $1.5kn -20V 10V -30V 4.7ka 4.7kQ 2. Using the practical diode model, determine the values of VR1, Vr2, and Vo. Vo R1 4 k7 D1 hika 22KS) R2 10V Via- 5V 13 -n the forward current of a diode with 1. Determine whether each silicon diode is forward or...
1. The reverse current in a diode has a value of 71.8 nA when the reverse voltage across the diode is 324.99 V. If the breakdown voltage of the diode is 325 V, and its saturation current is 11.0 pA, calculate the value of n for this diode. Ans. (2-12 Bogart) n 4.979 2. For the circuit below with silicon diodes, which diodes are forward-biased and which are revers- biased? Is current flowing through the resistor? If so, draw a...
The source voltage V1 = 10 V dc . Find the diode current using
the iterative technique discussed in clas s. Assume the diode has V
D =0.7 V at I D =2 mA and V T =25 mV . Perform two iterations only.
Then calculate the percentage difference between the I D and V D of
it eration 2 and the same values from iteration 1 using iteration 1
values as the reference.
out R1 Vout 1K W1
Determine diode voltage(Vd) and load current(IL) of the circuit
below
1. Determine diode voltagelvp) and load currentli) of the circuit below. + VD - 5 Ω Ν. 310 Ω οι ξon , 6V
