A venturi meter is a device for measuring the speed of a fluid within a pipe....

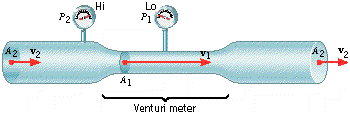

A venturi meter is a device for measuring the speed of a fluid within a pipe. The drawing shows a gas flowing at a speed v2 through a horizontal section of pipe whose cross-sectional area A2 = 0.0700 m2. The gas has a density of ϝ = 1.30 kg/m3. The Venturi meter has a cross-sectional area of A1 = 0.0300 m2 and has been substituted for a section of the larger pipe. The pressure difference between the two sections is P2 - P1 = 120 Pa.

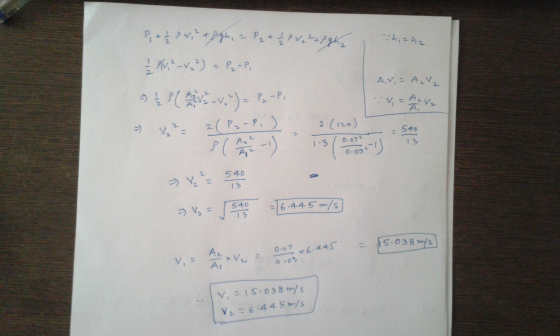

Homework Answers
Add Answer to:
A venturi meter is a device for measuring the speed of a fluid
within a pipe....
A Venturi meter is a device for measuring the speed of a fluid within a pipe....
A Venturi meter is a device for measuring the speed of a fluid within a pipe. The drawing shows a gas flowing at speed v2 through a horizontal section of pipe whose cross-sectional area is A2-0.0589 m2 The gas has a density of ρ-1.30 kg m3 The Venturi meter has a cross sectiona area of .ם 33m and has been substituted for a section of the larger pipe. The pressure difference between the two sections is P2 P1 154 Pa....
A Venturi meter is a device for measuring the speed of a fluid within a pipe....
A Venturi meter is a device for measuring the speed of a fluid within a pipe. The drawing shows a l lowing a speed through a horizontal section of pipe whose cross-sectional area is Az - 0.0793 m. The gas has a density of -1.Joka/m. The Ventun meter has a cross-sectional area of A - 0.0706m and has been substituted for a section of the larger pipe. The pressure difference between the two sections is P2P -191 PaFind (a) the...
A venturi meter is used to measure the flow speed of a fluid in a pipe....
A venturi meter is used to measure the flow speed of a fluid in a pipe. The meter is connected between two sections of the pipe (the figure); the cross-sectional area A of the entrance and exit of the meter matches the pipe's cross-sectional area. Between the entrance and exit, the fluid flows from the pipe with speed V and then through a narrow ''throat'' of cross-sectional area a with speed v. A manometer connects the wider portion of the...
A venturi meter is used to measure the flow speed of a fluid in a pipe. The meter is connected...
A venturi meter is used to measure the flow speed of a fluid in a pipe. The meter is connected between two sections of the pipe (Fig. 14-55); the cross-sectional area A of the entrance and exit of the meter matches the pipe's cross-sectional area. Between the entrance and exit, the fluid flows from the pipe with speed V and then through a narrow ''throat'' of cross-sectional area a with speed v. A manometer connects the wider portion of the...
Butane gas of density = 2.5567 kg/m^3 flows at speed v1 in a horizontal pipe with...
Butane gas of density = 2.5567 kg/m^3 flows at speed v1 in a horizontal pipe with cross sectional area A1 = 0.0475 m^2 which widens to a larger still horizontal section of area A2 = 0.0665 m^2 in which it flows at speed v2. If the pressure difference between the two sections is measured accurately to be p2-p1 = 276.1236 Pa, Find (a) speed v1, and (b) the volume flow rate of the gas.
Engineers use a venturi meter to measure the speed of a fluid traveling through a pipe (Figure 1).
Engineers use a venturi meter to measure the speed of a fluid traveling through a pipe (Figure 1). Positions 1 and 2 are in pipes with surface areas A1 and A2 with A1 greater than Az and are at the same vertical height. Assume the density of water is p. Part A Determine the pressure difference between positions 1 and 2. Part B Determine the speed at position 1.
A large pipe with a cross sectional area A1=1.2 m2 has water flowing through it. The...
A large pipe with a cross sectional area A1=1.2 m2 has water flowing through it. The pressure in the pipe there is maintained at atmospheric pressure. The pipe then descends 3.7 m and narrows to a new cross sectional area A2. Water exits the pipe there into an environment at atmospheric pressure. What must the cross sectional area A2 of the pipe be in m2 if the water is exiting the pipe with a speed of 9.8 m/s?
show all work Water flows at v1 = 0.636 m/s through a pipe with cross-sectional area...
show
all work
Water flows at v1 = 0.636 m/s through a pipe with cross-sectional area A1 = 0.406 m². The pipe narrows to A2 = 0.0175 m2. What is the speed of the water (v2) in the narrow section?
1. Water is flowing in a pipe as shown in the figure. The diameter of the...
1. Water is flowing in a pipe as shown in the figure. The diameter of the cross section area A1 is twice the diameter of A2. The velocity of flow v1 is 2.00m/s while h and h2 are 5.00 cm and 30.0 cm, respectively. Take the density of water to be 1000. kg/m3 (a) Find v2 (b) Calculate the pressure difference P P2 between the two ends of the pipe 2
Water is flowing in a straight horizontal pipe of variable cross section. Where the cross-sectional area...
Water is flowing in a straight horizontal pipe of variable cross section. Where the cross-sectional area of the pipe is 3.70·10-2 m2, the pressure is 8.10·105 Pa and the velocity is 0.660 m/s. In a constricted region where the area is 16.90·10-4 m2, what is the velocity? Tries 0/15 What is the pressure (in Pa)? (Assume an ideal fluid)
A Venturi meter is a device for measuring the speed of a fluid within a pipe. The drawing shows a gas flowing at speed v2 through a horizontal section of pipe whose cross-sectional area is A2-0.0589 m2 The gas has a density of ρ-1.30 kg m3 The Venturi meter has a cross sectiona area of .ם 33m and has been substituted for a section of the larger pipe. The pressure difference between the two sections is P2 P1 154 Pa....
A Venturi meter is a device for measuring the speed of a fluid within a pipe. The drawing shows a l lowing a speed through a horizontal section of pipe whose cross-sectional area is Az - 0.0793 m. The gas has a density of -1.Joka/m. The Ventun meter has a cross-sectional area of A - 0.0706m and has been substituted for a section of the larger pipe. The pressure difference between the two sections is P2P -191 PaFind (a) the...
show
all work
Water flows at v1 = 0.636 m/s through a pipe with cross-sectional area A1 = 0.406 m². The pipe narrows to A2 = 0.0175 m2. What is the speed of the water (v2) in the narrow section?
1. Water is flowing in a pipe as shown in the figure. The diameter of the cross section area A1 is twice the diameter of A2. The velocity of flow v1 is 2.00m/s while h and h2 are 5.00 cm and 30.0 cm, respectively. Take the density of water to be 1000. kg/m3 (a) Find v2 (b) Calculate the pressure difference P P2 between the two ends of the pipe 2
