A large pipe with a cross sectional area A1=1.2 m2 has water flowing through it. The...

A large pipe with a cross sectional area A1=1.2 m2 has water flowing through it. The pressure in the pipe there is maintained at atmospheric pressure. The pipe then descends 3.7 m and narrows to a new cross sectional area A2. Water exits the pipe there into an environment at atmospheric pressure. What must the cross sectional area A2 of the pipe be in m2 if the water is exiting the pipe with a speed of 9.8 m/s?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

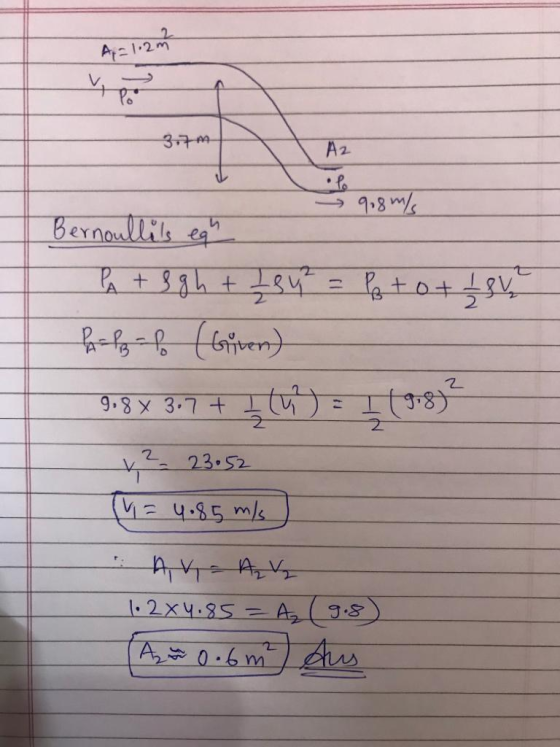

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A large pipe with a cross sectional area A1=1.2 m2 has water flowing through it. The...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • show all work Water flows at v1 = 0.636 m/s through a pipe with cross-sectional area...

    show all work Water flows at v1 = 0.636 m/s through a pipe with cross-sectional area A1 = 0.406 m². The pipe narrows to A2 = 0.0175 m2. What is the speed of the water (v2) in the narrow section?

  • PRACTICE IT Use the worked example above to help you solve this problem. A large pipe...

    PRACTICE IT Use the worked example above to help you solve this problem. A large pipe with a cross-sectional area of 1.24 m2 descends 4.80 m and narrows to 0.500 m2, where it terminates in a valve at point (see figure). If the pressure at point is atmospheric pressure, and the valve is opened wide and water allowed to flow freely, find the speed of the water leaving the pipe. 4.43 Your response differs from the correct answer by more...

  • Water in a large pipe, area A1 is flowing at a speed of 10 m/s. It...

    Water in a large pipe, area A1 is flowing at a speed of 10 m/s. It flows into a different part of the same pipe, area A2 = 4m^2, at speed 15 m/s, What is A1 in m^2?

  • Water is moving with a speed of 5.3 m/s through a pipe with a cross-sectional area...

    Water is moving with a speed of 5.3 m/s through a pipe with a cross-sectional area of 4.5 cm2. The water gradually descends 8.7 m as the pipe increases to 9.6 cm2. (a) What is the speed at 105 Pa, what is the pressure at the lower level? the lower level? (b) If the pressure at the upper level is 1.3 (a) Number (b) Number Units Units

  • Water is moving with a speed of 20.0 m/s through a pipe with a cross-sectional area...

    Water is moving with a speed of 20.0 m/s through a pipe with a cross-sectional area of 3.0 cm2. The water gradually descends 20.0 m as the pipe's cross section increases by a factor of three. What is the speed of flow at the lower level? How much higher is the pressure at the lower level compared to the upper level?

  • Water is flowing in a straight horizontal pipe of variable cross section. Where the cross-sectional area...

    Water is flowing in a straight horizontal pipe of variable cross section. Where the cross-sectional area of the pipe is 3.70·10-2 m2, the pressure is 8.10·105 Pa and the velocity is 0.660 m/s. In a constricted region where the area is 16.90·10-4 m2, what is the velocity? Tries 0/15 What is the pressure (in Pa)? (Assume an ideal fluid)

  • Water is moving with a speed of 11.9 m/s through a pipe with a cross-sectional area...

    Water is moving with a speed of 11.9 m/s through a pipe with a cross-sectional area of 4.5 cm2. The water gradually descends 20.0 m as the pipe's cross section increases by a factor of two. What is the speed of flow at the lower level? Submit Answer Tries 0/16 How much higher is the pressure at the lower level compared to the upper level? Submit Answer Tries 0/16

  • LEARN MORE REMARKS Calculating actual flow rates of real fluids through plpes is in fact much...

    LEARN MORE REMARKS Calculating actual flow rates of real fluids through plpes is in fact much more complex than presented here, due to viscosity, the possibility of turbulence, and other factors. QUESTION Find a symbolic expression for the limit of speed v, as the lower cross sectional area A, opening becomes negligibly small compared to cross section Az. (Use the following as necessary: 8, 9, Aj, and Az.) What is this result called? Reynolds Number Torricelli's Law O Stokes's Law...

  • water is flowing in a cylindrical pipe of varying circular cross sectional area and at all...

    water is flowing in a cylindrical pipe of varying circular cross sectional area and at all points the water completely fills the pipe a. at one point in the pipe, the radius is 0.150 m what is the speed of thecwater at this point if the volume flow rate in the pipe is 1.20 m^3/s ? b. at a second point in the pipe the water spped is 3.80 m/s What is the radius of the pipe at this point?...

  • 8. The fresh water intake in a reservoir has a cross-sectional area of 0.800 m2 and...

    8. The fresh water intake in a reservoir has a cross-sectional area of 0.800 m2 and receives water flowing at a speed of 0.500 m/s. At the outlet, a vertical distance of 200 m below the intake, the cross-sectional area is 0.020 m. Calculate the pressure difference between the inlet and outlet. (Answer: 1.76 x 10 Pa)
